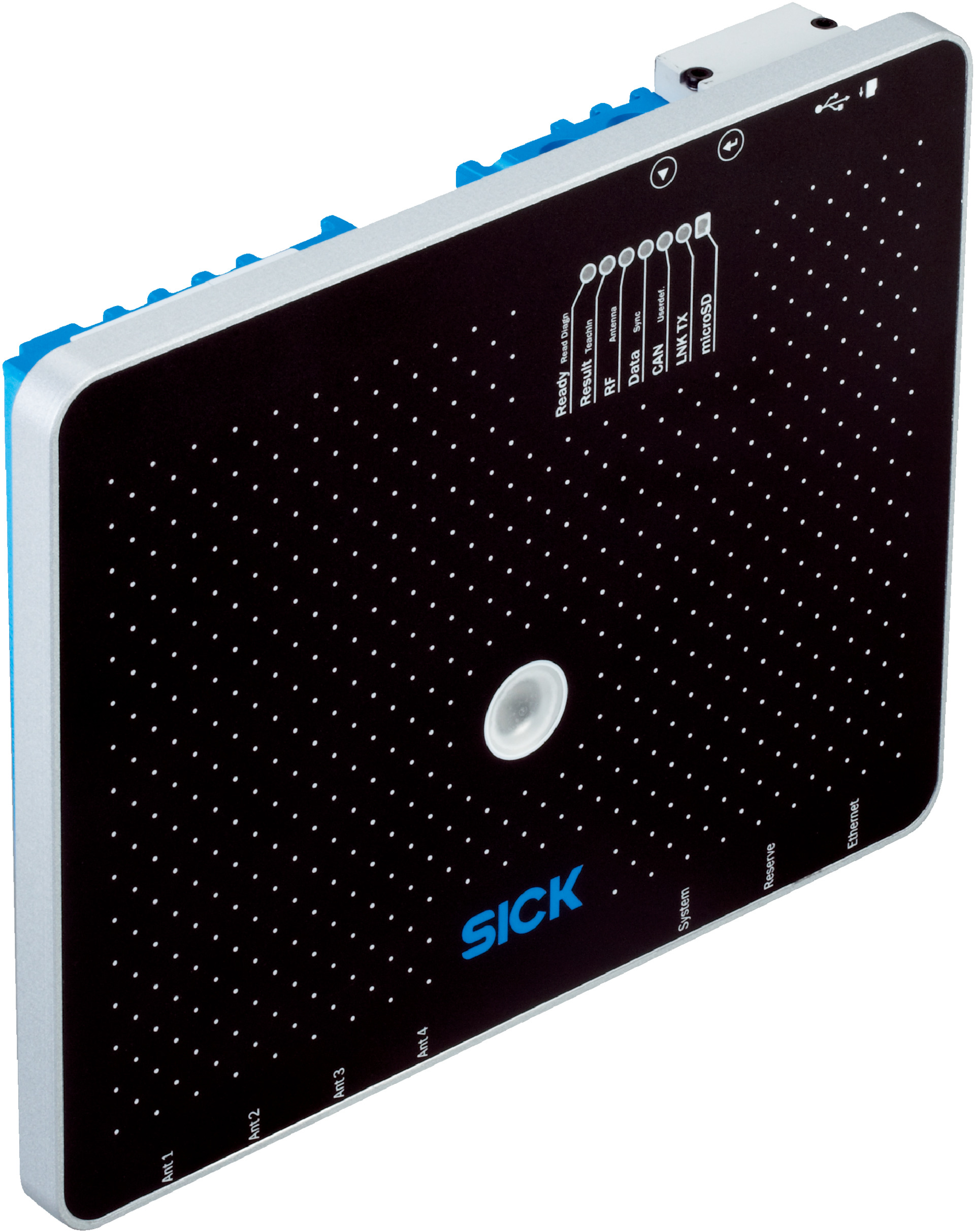

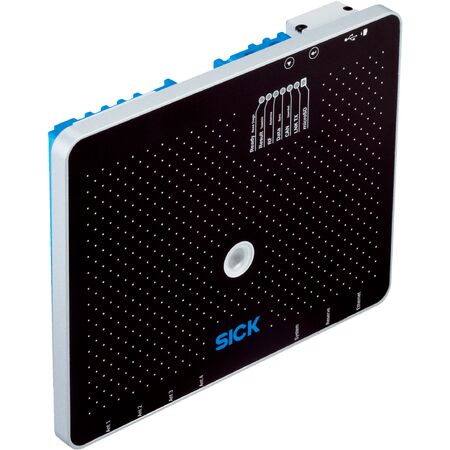

Long Range RFID Reader | UHF Frequency 860-960 MHz | IP67 Enclosure | by SICK
The Long Range RFID Reader RFU630-04109 operates within the UHF frequency band of 860 MHz to 960 MHz, offering an impressive read range of up to 10 meters. Designed for industrial automation and logistics, this robust device features multiple interface options and an IP67-rated aluminum housing, ensuring durability in challenging environments. Ideal for asset tracking and inventory management, it supports bulk reading capabilities and is equipped with diagnostic functions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 920.25 MHz to 924.75 MHz
- Output power: Up to 30 dBm, adjustable
- Read range: Up to 10 meters
- Connection of external antennas: 4 ports, adjustable output power
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP, EtherCAT, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Operating temperature: -30°C to +60°C
- Storage temperature: -30°C to +70°C
- EMC compliance: EN 301489-3 / EN 50121-4 (2017)
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Memory card: microSD for parameter cloning and data storage
- Dimensions (H x L x W): 40mm x 239mm x 197mm
- Weight: 2.1 kg
Key Features
- Long range RFID read/write device without integrated antenna
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN standards
- Adjustable output power up to 30 dBm at external antenna ports
- Bulk reading capability
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, EtherCAT, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die cast housing with IP67 enclosure rating
- Operating temperature range from -30°C to +60°C
- Updatable firmware and programmable data output format
- Equipped with diagnostic functions and SICK AppSpace functionalities
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial RFID systems and compliant with electrical safety standards.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for bulk reading of RFID tags
- Manufacturing environments requiring long-range RFID data capture
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can reduce energy consumption in logistics and manufacturing
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU630-04109 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial automation and logistics applications.
