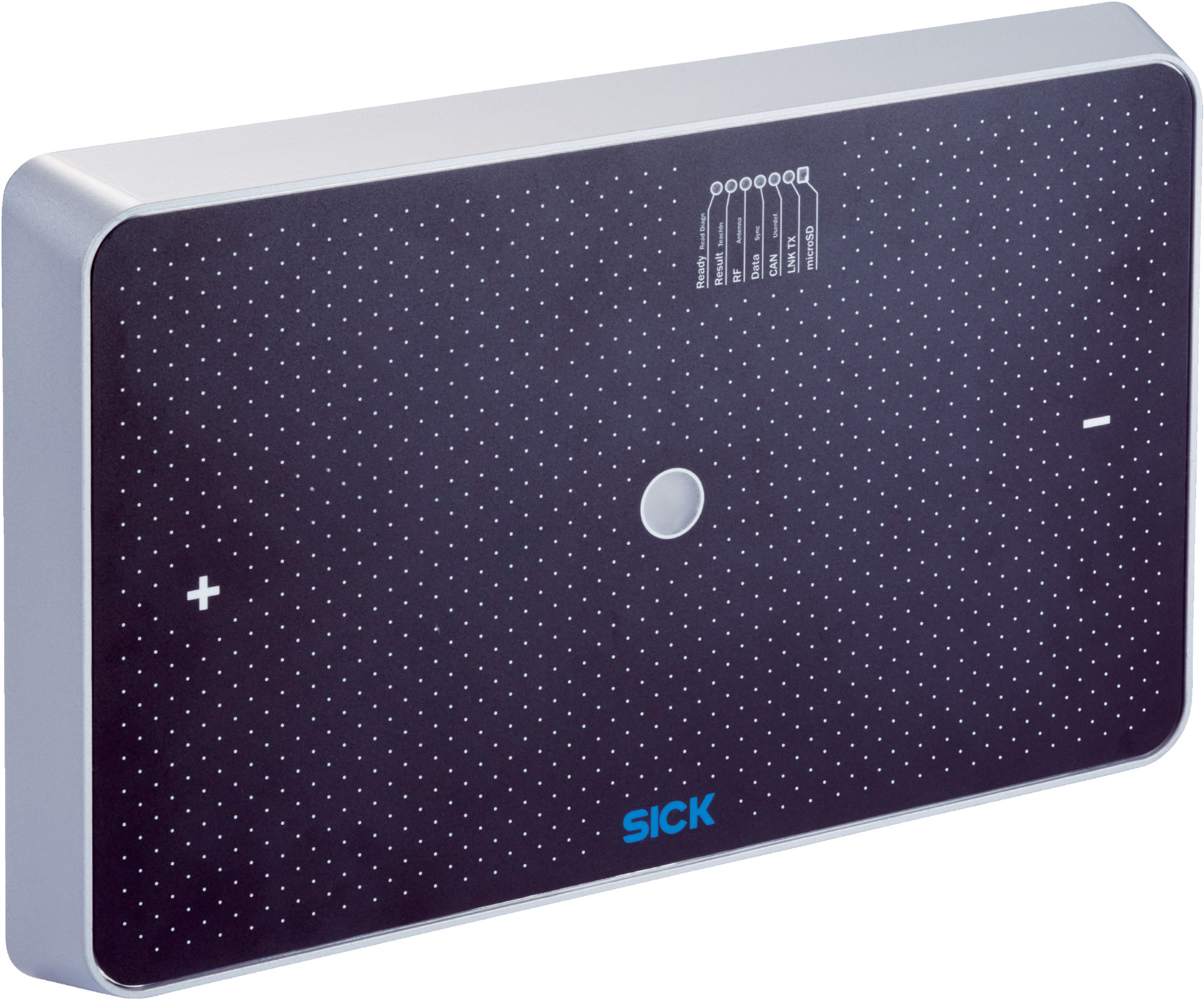

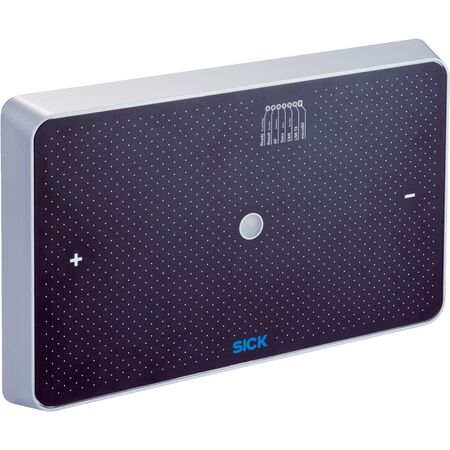

Long Range RFID Reader | UHF Frequency Band | Integrated Antenna | IP67 Rated | by SICK
The Long Range RFID Reader RFU650-10102 is designed for industrial automation, logistics, and manufacturing applications. With an adjustable transmitting power of up to 2 W and support for EPCglobal UHF Class 1 Generation 2 standards, it ensures efficient asset tracking and inventory management. Its robust aluminum housing and IP67 rating make it suitable for harsh environments, while multiple interface options provide versatile connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 70mm x 400mm x 252mm
- Weight: 3.9 kg
Key Features
- Long range RFID read/write device with integrated antenna
- UHF frequency band (860 MHz to 960 MHz) with carrier frequency 920.25 MHz to 925.75 MHz
- Adjustable transmitting power up to 2 W (EIRP, 33 dBm)
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Circular polarization with axial ratio typically 2 dB and front-to-back ratio > 15 dB
- Direction monitoring and bulk reading capabilities
- Integrated antenna with 80° aperture angle (vertical 55°, horizontal)
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Robust aluminum housing with IP67 enclosure rating
- Operating temperature range from -25 °C to +60 °C
- Updatable firmware and programmable data output format
- Equipped with 7 multi-color LEDs, 1 RGB LED, 1 beeper, and web server interface
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with local regulations.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for bulk reading and transponder entry detection
- Manufacturing environments requiring long-range RFID reading capabilities
Standards & Compliance
- Complies with AS/NZS 4268 for radio equipment
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Energy efficient operation with adjustable transmitting power
- Supports wireless RFID technology reducing the need for physical tags and paper-based tracking
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK RFU650-10102 RFID read/write device is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications.
