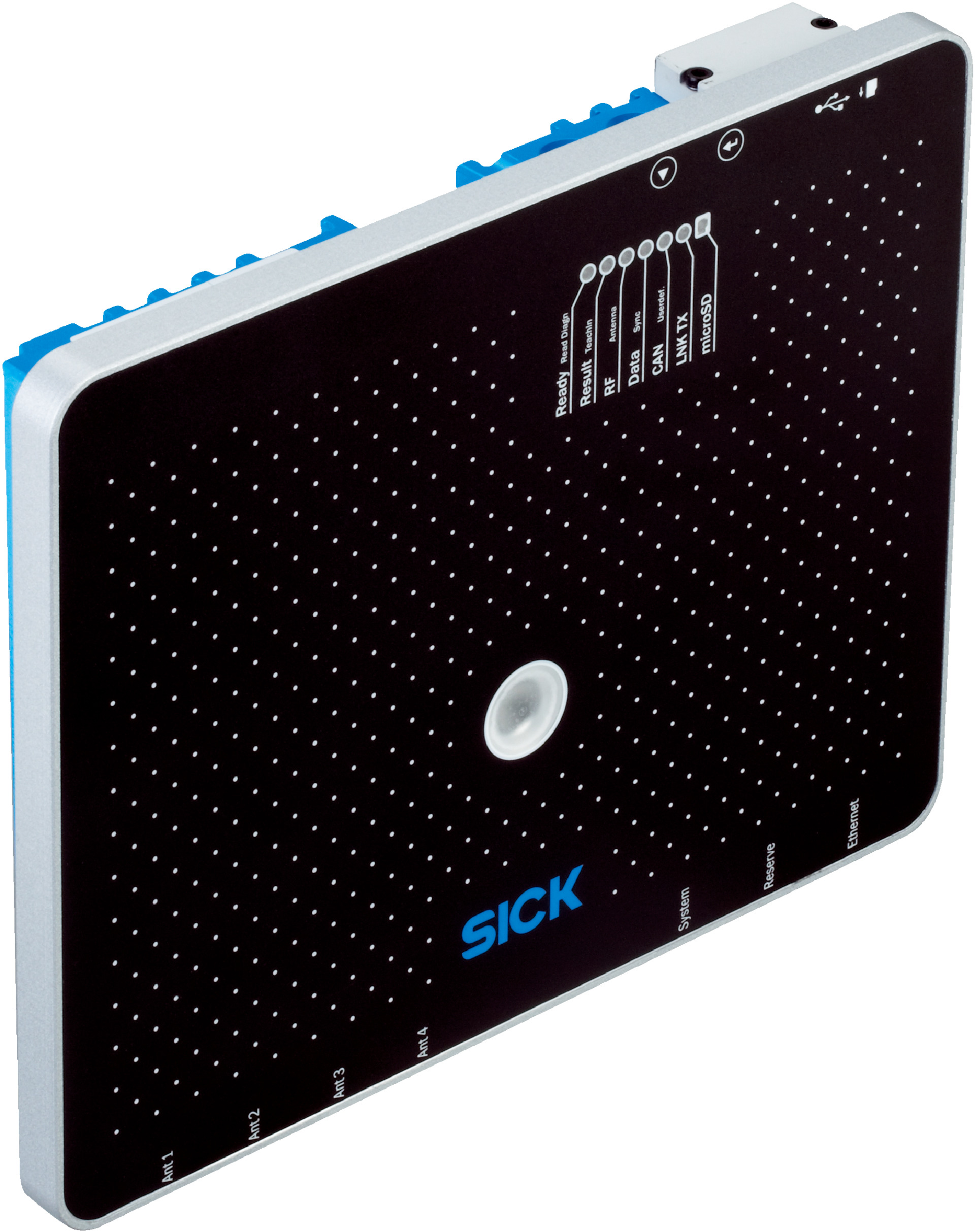

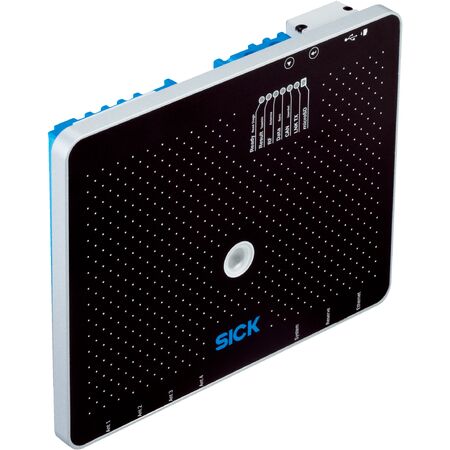

Long Range RFID Reader | UHF 860-960 MHz | IP67 Enclosure | Adjustable Output Power | by SICK
The Long Range RFID Reader RFU630-04103 operates in the UHF frequency band (860-960 MHz) and features an adjustable output power of up to 30 dBm. With a robust IP67 aluminum housing, it's perfect for industrial automation, logistics, and asset tracking applications. Designed for durability and efficiency, this reader supports multiple interfaces and offers bulk reading capabilities, making it an ideal solution for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 865.7 MHz to 866.9 MHz
- Output power: 30 dBm at external antenna ports, adjustable
- Read range: up to 10 meters
- Connection of external antennas: 4 ports, adjustable separately
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs: 2 physical plus 2 logical via optional memory
- Digital outputs: 2 physical plus 2 logical via optional memory
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Control elements: 2 buttons
- Operator interface: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio
- Memory card: microSD for parameter cloning and data storage
- MTBF: greater than 100 years
- Ambient operating temperature: –30 °C to +60 °C
- Storage temperature: –30 °C to +70 °C
- Permissible relative humidity: up to 90%, non-condensing
- Dimensions (H x L x W): 40mm x 239mm x 197mm
- Weight: 2.1 kg
Key Features
- Long range RFID read/write device without integrated antenna
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN standards
- Adjustable output power up to 30 dBm at external antenna ports
- Bulk reading capability
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die cast housing with IP67 enclosure rating
- Wide ambient operating temperature range from –30 °C to +60 °C
- Updatable firmware and programmable data output format
- Equipped with diagnostic functions and SICK AppSpace functionalities
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial RFID systems and compliant with electrical safety standards.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for bulk reading of RFID tags
- Manufacturing environments requiring long-range RFID identification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports energy-efficient operation with adjustable output power
- Durable IP67 housing extends product lifespan reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU630-04103 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial and logistics applications requiring robust and flexible RFID solutions.
