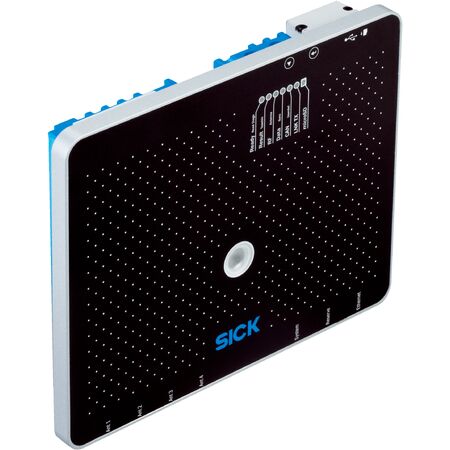

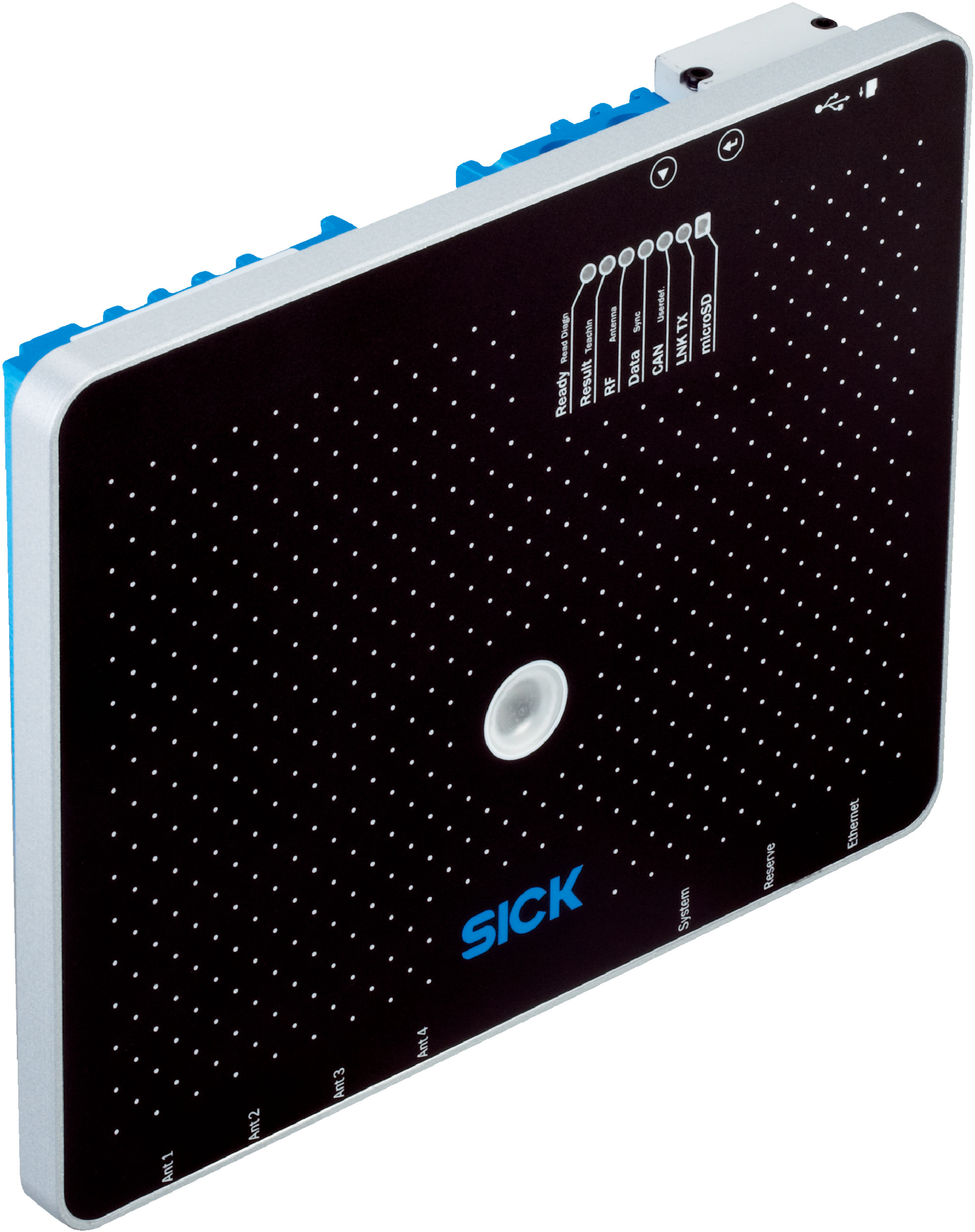

Long Range UHF RFID Reader | Up to 10 Meters Read Range | IP67 Rated | by SICK
The Long Range UHF RFID Reader RFU630-04100 is designed for industrial automation, offering a read range of up to 10 meters and adjustable output power up to 30 dBm. With robust aluminum housing and IP67 rating, it’s perfect for asset tracking and inventory management in challenging environments, ensuring reliable performance in logistics and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 865.7 MHz to 867.5 MHz
- Output power: Up to 30 dBm, adjustable
- Read range: Up to 10 meters
- Antenna: Not integrated, supports 4 external antennas
- Connection type: 1 x M12 17-pin male connector, 1 x M12 4-pin female connector, 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Operating temperature: -30°C to +60°C
- Storage temperature: -30°C to +70°C
- Relative humidity: Up to 90%, non-condensing
- MTBF: Greater than 100 years
- Dimensions (H x L x W): 40mm x 239mm x 197mm
- Weight: 2.1 kg
Key Features
- Long range UHF RFID read/write device without integrated antenna
- Supports EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, RAIN standards
- Adjustable output power up to 30 dBm at external antenna ports
- Bulk reading capability
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, CANopen
- Robust aluminum die cast housing with IP67 rating
- Operating temperature range from -30°C to +60°C
- Updatable firmware and programmable data output format
- Supports SICK AppSpace functionalities with SD card accessory
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial RFID systems and compliant with electrical safety standards.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for bulk reading of RFID tags
- Manufacturing environments requiring long-range RFID reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can reduce energy consumption in logistics and manufacturing
- Durable IP67 housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU630-04100 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial automation and logistics applications.
