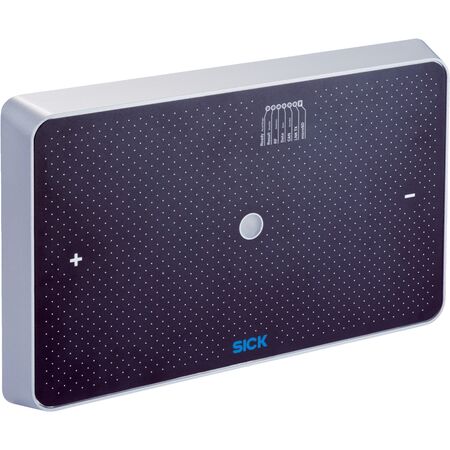

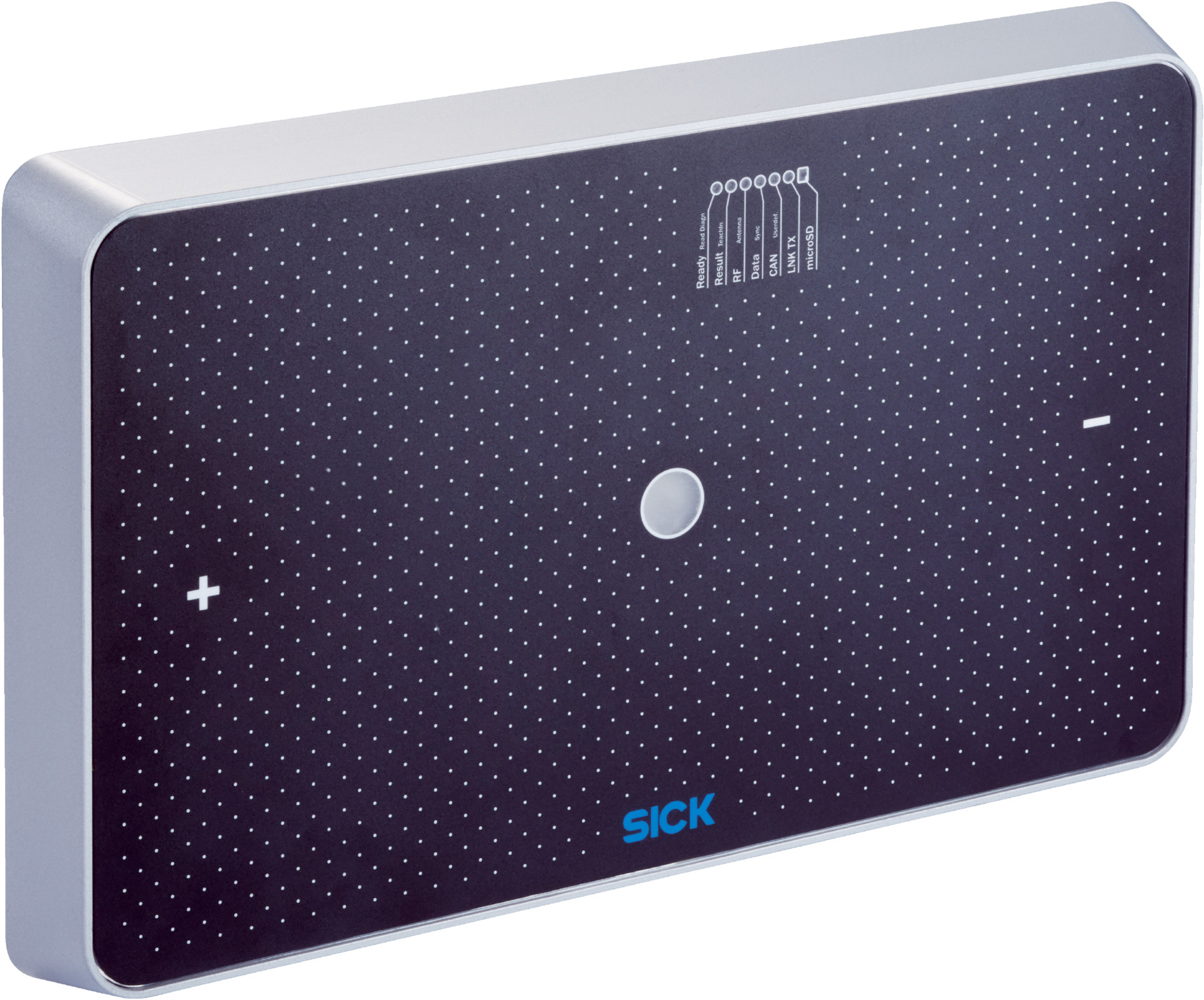

Long Range UHF RFID Reader | Integrated Antenna | 10m Read Range | IP67 Rated | by SICK
The Long Range UHF RFID Reader RFU650-10105 is designed for industrial automation, offering an impressive read range of up to 10 meters with an integrated antenna. Ideal for asset tracking and inventory management, this robust device features adjustable transmitting power and multiple interface options, ensuring seamless integration into your existing systems. With an IP67 rating, it withstands harsh environments, making it perfect for logistics and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 920.625 MHz to 924.375 MHz
- Output power: 1.6 W ERP with integrated antenna
- RFID standard: EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN
- Modulation: PR-ASK, DSB-ASK
- Aperture angle: 80° vertical, 55° horizontal
- Antenna: Integrated, circular polarization, axial ratio typically 2 dB, front-to-back ratio > 15 dB
- Connection types: M12 connectors (17-pin male A-coded, 4-pin female D-coded), USB 2.0 micro-B socket
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 26 W
- Housing material: Aluminum
- Enclosure rating: IP67
- Protection class: III
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Control elements: 2 buttons
- Operator interface: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio
- Memory card: microSD for parameter cloning and data storage
- Operating temperature: -25°C to +60°C
- Storage temperature: -30°C to +70°C
- Relative humidity: 90%, non-condensing
- MTBF: 25 years
- Dimensions (H x L x W): 70mm x 400mm x 252mm
- Weight: 3.9 kg
Key Features
- Long range UHF RFID read/write device with integrated antenna
- Adjustable transmitting power with circular polarization
- Read range up to 10 meters
- Direction monitoring and bulk reading capabilities
- Updatable firmware and freely programmable data output format
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum housing with IP67 enclosure rating
- Operating temperature range from -25°C to +60°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with RFID systems and industrial electrical standards to ensure compliance and optimal performance.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for bulk reading and transponder entry detection
- Manufacturing environments requiring robust RFID solutions with direction monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can reduce energy consumption in logistics and manufacturing
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU650-10105 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial automation, logistics, and manufacturing applications requiring reliable RFID solutions.
