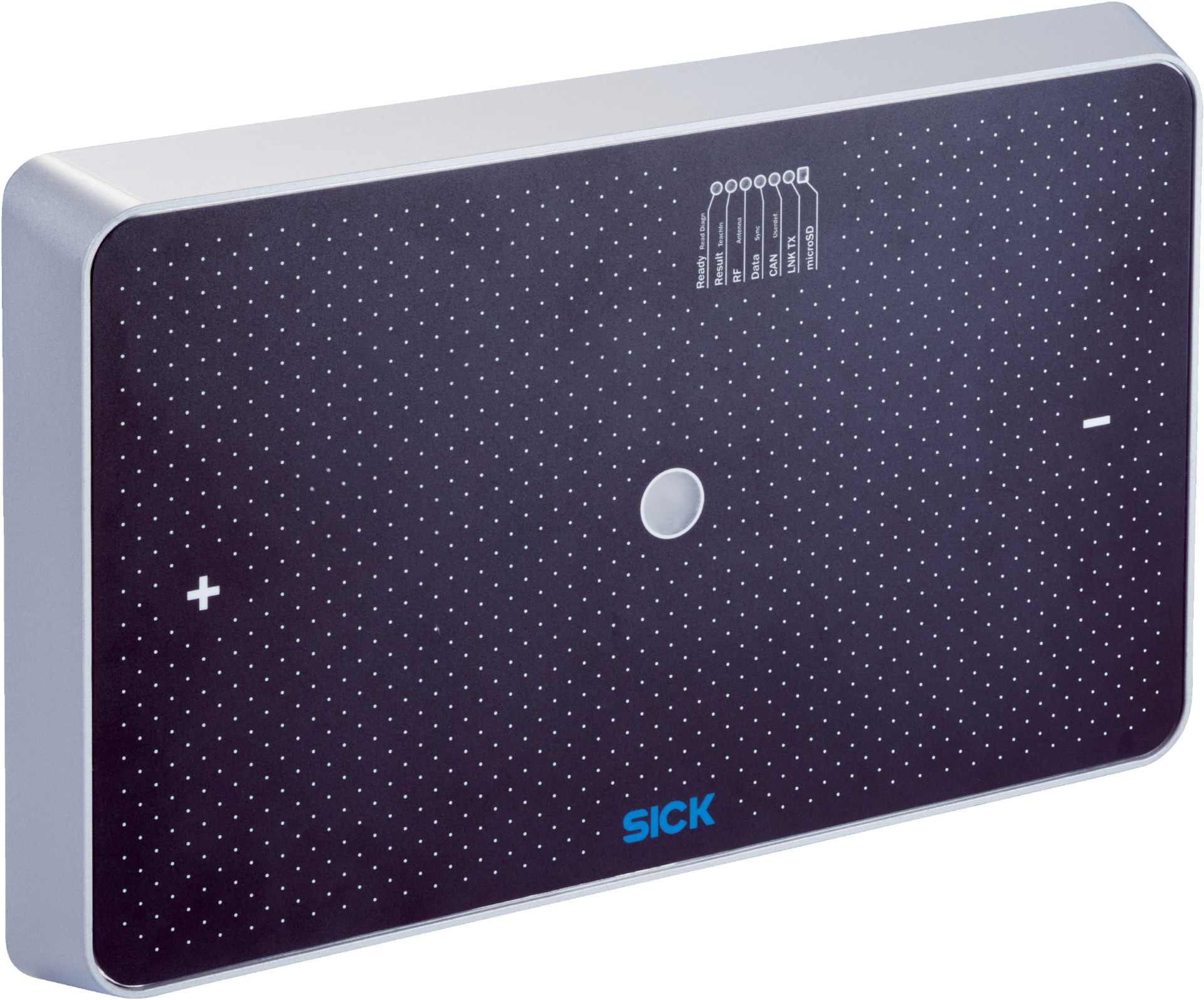

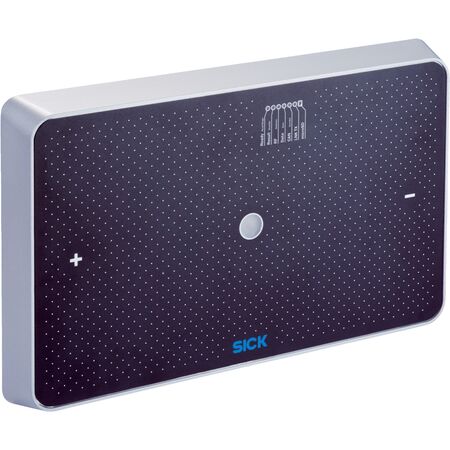

Long Range UHF RFID Reader | Integrated Antenna | 10m Read Range | IP67 Rated | by SICK
The Long Range UHF RFID Reader RFU650-10103 is designed for industrial asset tracking and logistics automation, featuring an integrated antenna and a read range of up to 10 meters. With adjustable output power and support for multiple RFID standards, this robust device ensures reliable performance in harsh environments, making it ideal for manufacturing and supply chain management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Long Range
- Product category: RFID read/write device with integrated antenna
- Radio approval: India
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 865.7 MHz to 866.9 MHz
- Output power: 1.6 W ERP (32 dBm), adjustable
- RFID standard: EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, RAIN
- Modulation: PR-ASK, DSB-ASK
- Aperture angle: 80° vertical, 55° horizontal
- Read range: up to 10 m
- Antenna: Integrated, circular polarization
- Axial ratio: typically 2 dB
- Front-to-back ratio: > 15 dB
- Direction monitoring: Yes
- Bulk reading: Yes
- Connection type: 1 x M12 17-pin male connector (A-coded), 1 x M12 4-pin female connector (D-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: typically 26 W
- Housing material: Aluminum
- Housing color: Blue, black, silver
- Enclosure rating: IP67
- Protection class: III
- Weight: 3.9 kg
- MTBF: 25 years
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs: 2 physical plus 2 logical via optional parameter memory
- Digital outputs: 2 physical plus 2 logical via optional parameter memory
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Control elements: 2 buttons
- Operator interface: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio
- Memory card: microSD for parameter cloning and data storage
- EMC: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Operating temperature: -25 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Dimensions (H x L x W): 70mm x 400mm x 252mm
- Weight: 3.9 kg
Key Features
- Long range UHF RFID read/write device with integrated antenna
- Frequency band: 860 MHz to 960 MHz with carrier frequency 865.7 MHz to 866.9 MHz
- Output power adjustable up to 1.6 W ERP (32 dBm)
- Supports EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, and RAIN RFID standards
- Circular polarization with axial ratio typically 2 dB and front-to-back ratio > 15 dB
- Direction monitoring and bulk reading capabilities
- Updatable firmware and freely programmable data output format
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232/RS-422), CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum housing with IP67 rating for harsh environments
- Wide ambient operating temperature range from -25 °C to +60 °C
- Equipped with optical and acoustic indicators and web server operator interface
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup, configuration, and compliance with electrical standards.
Applications
- Industrial asset tracking and management
- Logistics and warehouse automation
- Manufacturing process control
- Supply chain management
- Bulk reading and direction monitoring in RFID systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing resource waste
- Supports automation to optimize logistics and reduce energy consumption
- Durable IP67 housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK RFU650-10103 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial and logistics applications requiring reliable RFID tracking and monitoring.
