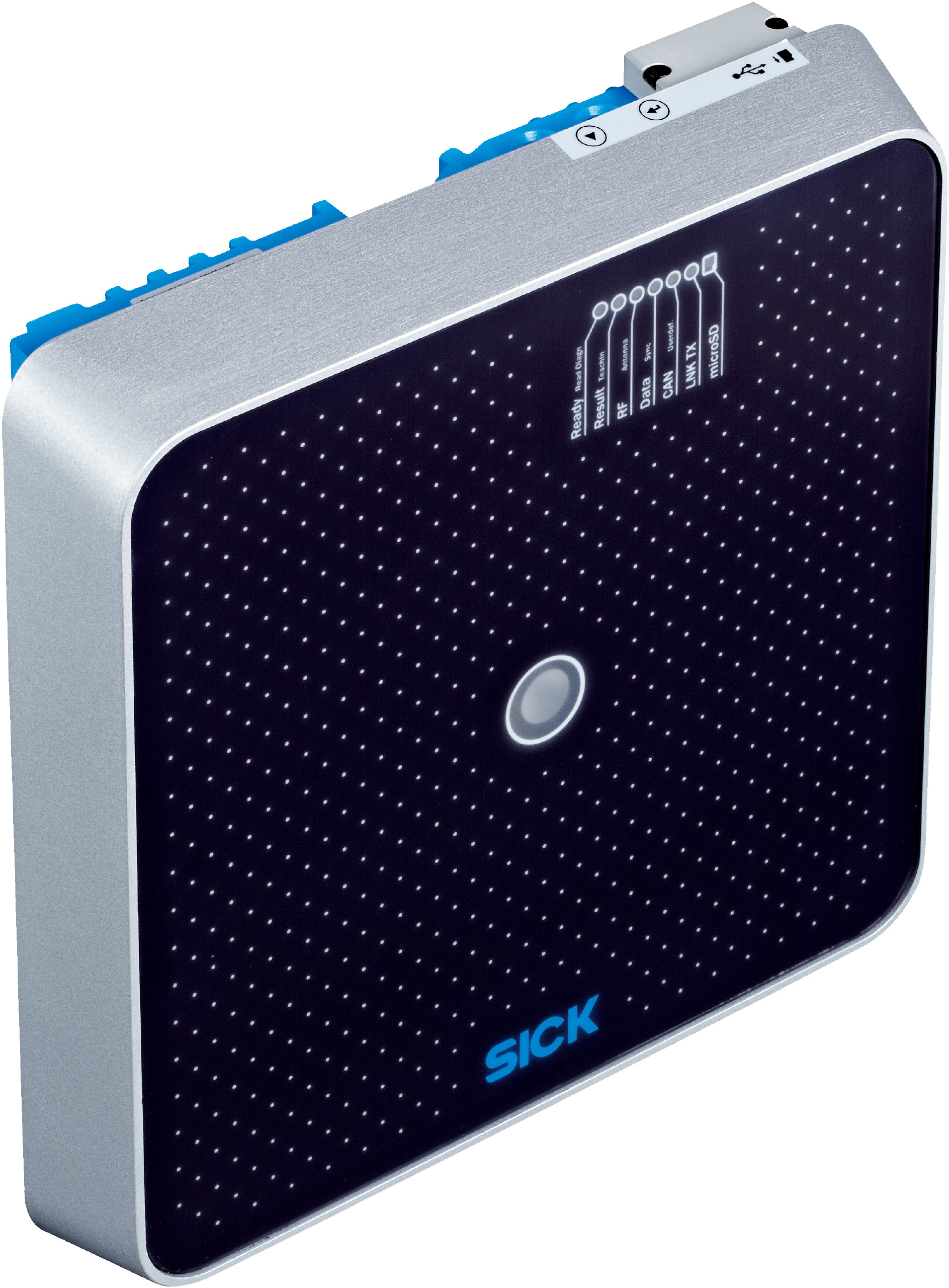

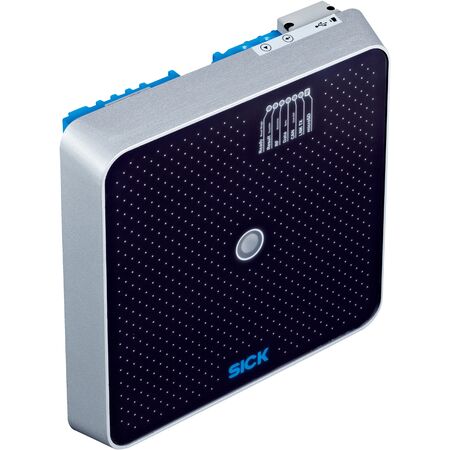

Long Range UHF RFID Reader | Integrated Antenna | 10m Read Range | IP67 Rated | by SICK
The Long Range UHF RFID Reader RFU630-13105 is designed for industrial automation, logistics, and manufacturing applications. With an integrated antenna and adjustable output power up to 2 W ERP, it offers a read range of up to 10 meters. Built to withstand harsh environments with an IP67 rating, this robust RFID solution ensures reliable asset tracking and inventory management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 920.625 MHz to 924.375 MHz
- Output power: 2 W ERP (integrated antenna), alternatively 30 dBm at external antenna port, adjustable
- Modulation: PR-ASK, DSB-ASK
- Antenna: Integrated, circular polarization, axial ratio typically 2 dB, front-to-back ratio > 17 dB
- Connection type: 1 x M12 17-pin male connector (A-coded), 1 x M12 4-pin female connector (D-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typically 20 W
- Enclosure rating: IP67
- Protection class: III
- MTBF: Greater than 100 years
- Data transmission rate: Ethernet 10/100 MBit/s, Serial 0.3 kBaud to 115.2 kBaud
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Electromagnetic compatibility: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: Up to 90%, non-condensing
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range UHF RFID read/write device with integrated antenna
- Adjustable output power up to 2 W ERP with integrated antenna or 30 dBm at external antenna port
- Supports EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, and RAIN RFID standards
- Circular polarization with 72° aperture angle and read range up to 10 meters
- Bulk reading capability with advanced diagnostics and updatable firmware
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die-cast housing with IP67 enclosure rating and protection class III
- Wide ambient operating temperature range from -30 °C to +60 °C
- Equipped with optical and acoustic indicators and web server operator interface
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure compliance with electrical and safety standards and optimal device performance.
Applications
- Industrial automation for asset tracking and inventory management
- Logistics and supply chain for bulk reading and identification
- Manufacturing environments requiring robust RFID solutions
- Outdoor and indoor use in harsh environments due to IP67 rating
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing extends product lifespan reducing waste
- Low power consumption design minimizes energy use
- Supports efficient asset tracking reducing resource waste in logistics
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK RFU630-13105 Long Range RFID Read/Write Device is available for immediate purchase. Ideal for industrial automation, logistics, and manufacturing applications requiring reliable RFID solutions.
