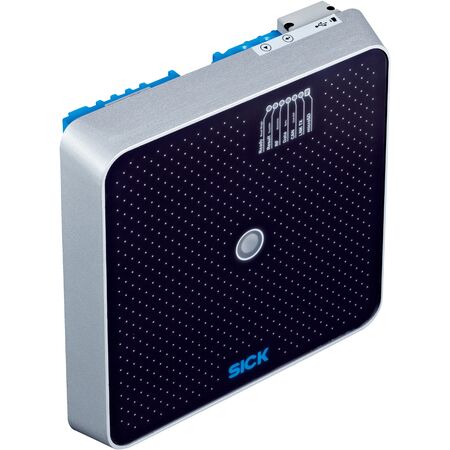

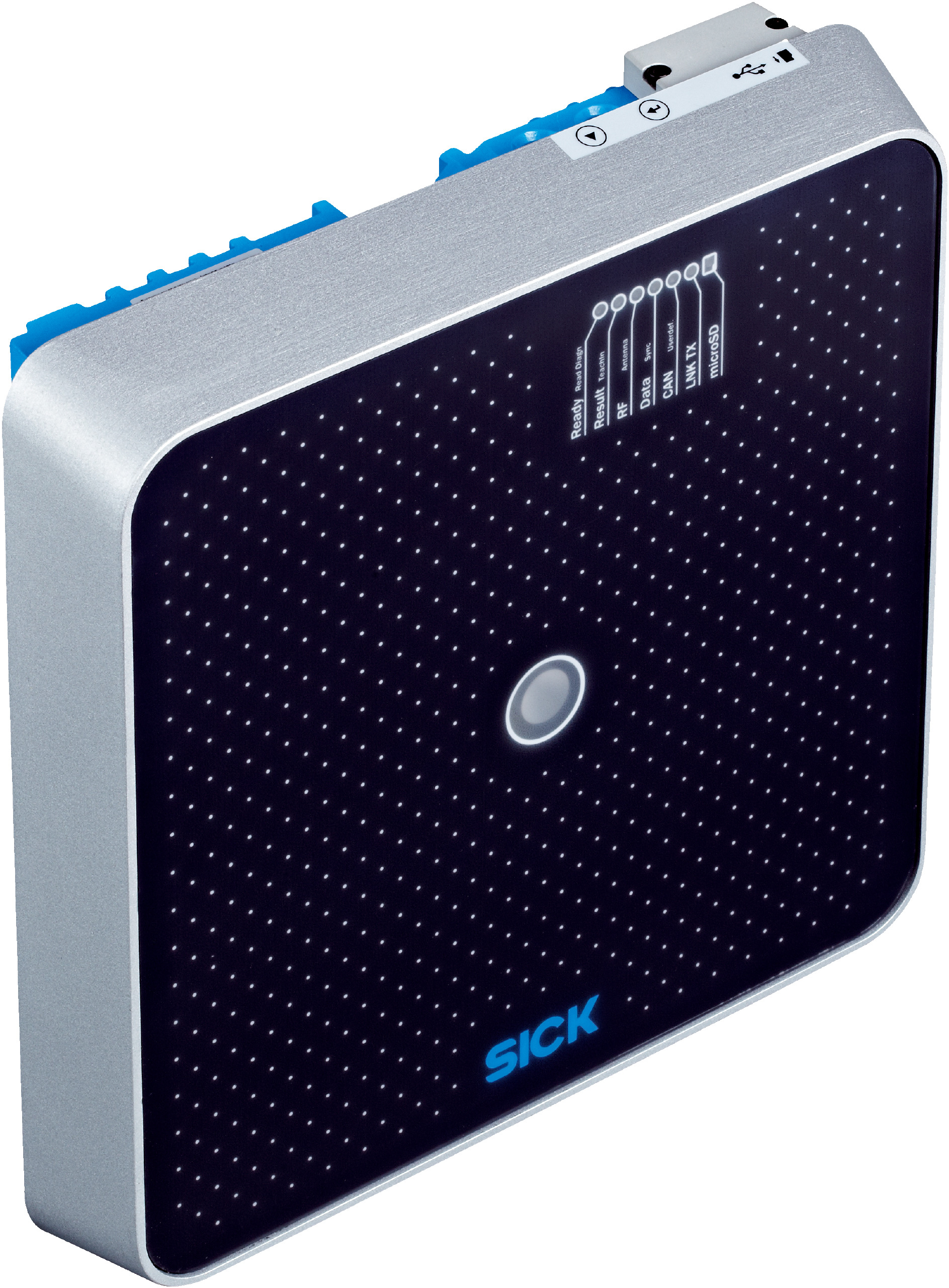

Long Range UHF RFID Reader | Integrated Antenna | 2 W ERP Output | IP67 Rated | by SICK
The Long Range UHF RFID Reader is designed for industrial asset tracking and management, featuring an integrated antenna and adjustable output power up to 2 W ERP. With a robust aluminum die cast housing and IP67 enclosure rating, it operates efficiently in harsh environments, making it ideal for logistics and warehouse automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 920.625 MHz to 924.375 MHz
- Output power: 2 W ERP with integrated antenna, alternatively 30 dBm at external antenna port, adjustable
- Antenna: Integrated, circular polarization, axial ratio typically 2 dB, front-to-back ratio > 17 dB
- Read range: Up to 10 meters
- Modulation: PR-ASK, DSB-ASK
- Connection type: 1 x M12 17-pin male connector (A-coded), 1 x M12 4-pin female connector (D-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- MTBF: Greater than 100 years
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: Up to 90%, non-condensing
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range UHF RFID read/write device with integrated antenna
- Adjustable output power up to 2 W ERP with integrated antenna or 30 dBm at external antenna port
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Bulk reading capability
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, CANopen
- Robust aluminum die cast housing with IP67 enclosure rating
- Wide operating temperature range from -30 °C to +60 °C
- Updatable firmware and programmable data output format
- Integrated diagnostics and SICK AppSpace functionalities
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup, configuration, and compliance with local regulations.
Applications
- Industrial asset tracking and management
- Logistics and warehouse automation
- Supply chain and inventory control
- Manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation to optimize resource use and reduce energy consumption
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU630-13105 Kit2 China RFID read/write device is available for immediate purchase. Ideal for industrial and logistics applications requiring reliable long-range RFID solutions.
