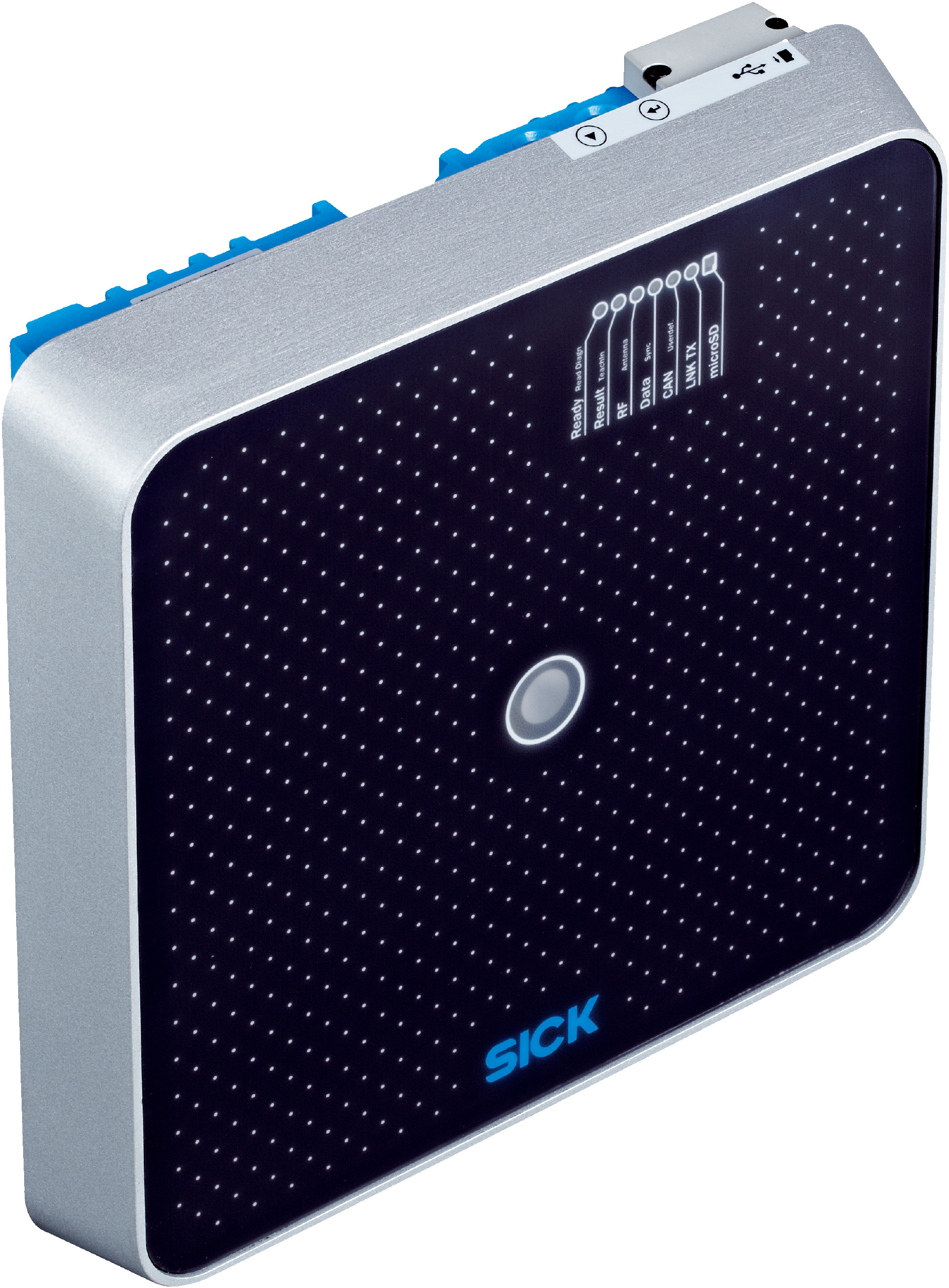

Long Range UHF RFID Reader | Integrated Antenna | 4W EIRP Output | IP67 Rated | by SICK
The Long Range UHF RFID Reader RFU630-13102 is designed for industrial automation, offering an impressive read range of up to 10 meters and adjustable output power up to 4 W EIRP. With multiple communication interfaces and a robust IP67-rated aluminum housing, it's perfect for asset tracking, logistics, and manufacturing process control, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 920.25 MHz to 925.75 MHz
- Output power: 4 W EIRP with integrated antenna, alternatively 30 dBm at external antenna port, adjustable
- Antenna: Integrated, circular polarization, axial ratio typically 2 dB, front-to-back ratio > 17 dB
- Read range: Up to 10 meters
- Connection type: 1 x M12 17-pin male connector (A-coded), 1 x M12 4-pin female connector (D-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: Up to 90%, non-condensing
- EMC: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- MTBF: Greater than 100 years
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range UHF RFID read/write device with integrated antenna
- Adjustable output power up to 4 W EIRP with integrated antenna or 30 dBm at external antenna port
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Bulk reading capability
- Multiple communication interfaces including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, CANopen
- Robust aluminum die cast housing with IP67 enclosure rating
- Wide operating temperature range from -30 °C to +60 °C
- Advanced functions such as diagnosis, updatable firmware, programmable data output format, and SICK AppSpace functionalities
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper configuration and integration with existing systems.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- Complies with AS/NZS 4268 for radio equipment
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can reduce energy consumption in logistics and manufacturing
- Durable IP67 housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU630-13102 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial and logistics applications requiring reliable RFID identification and tracking.
