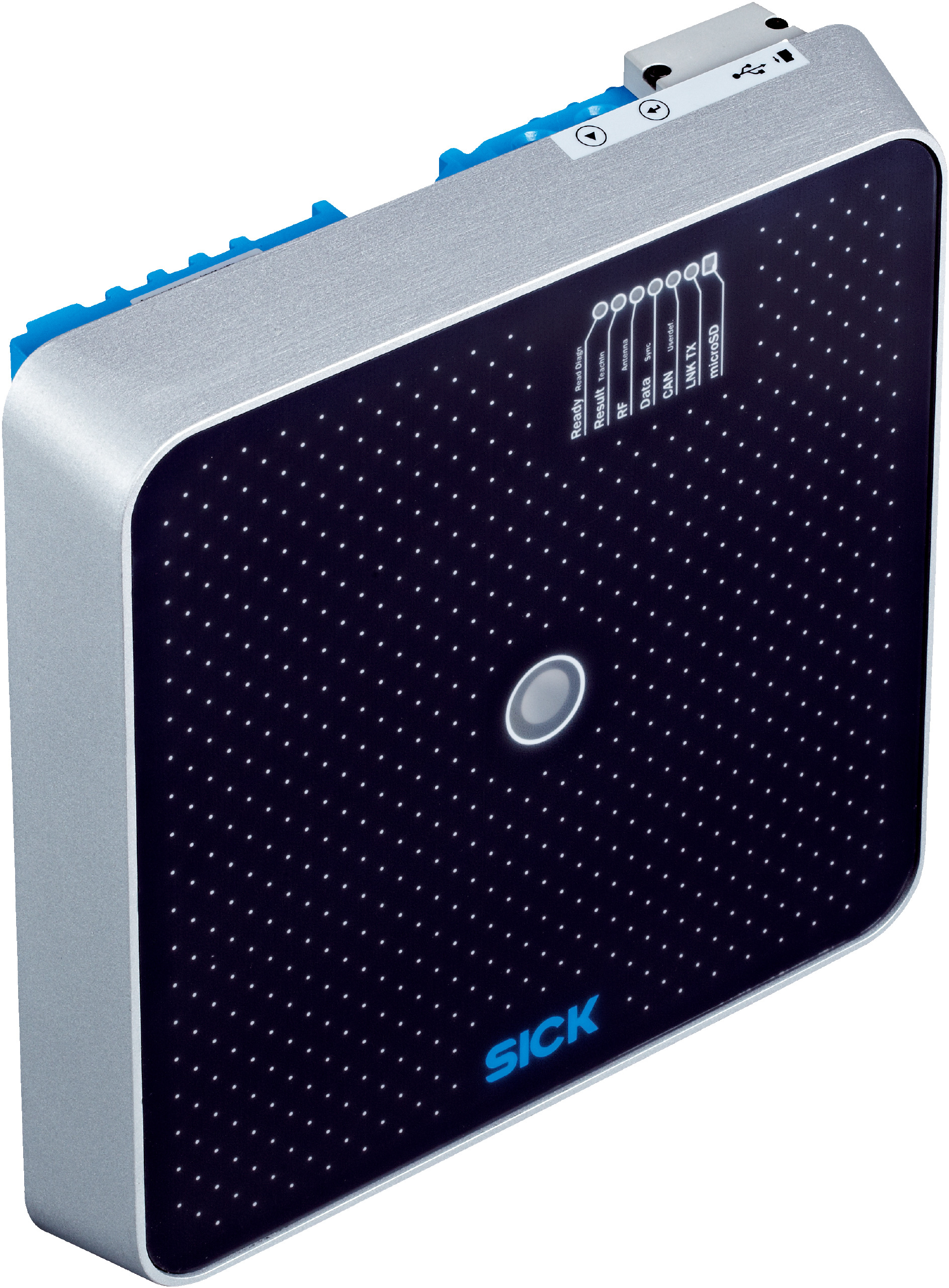

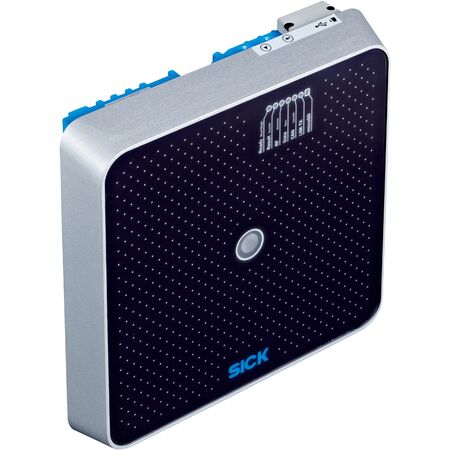

Long Range UHF RFID Reader | Integrated Antenna | 4 W EIRP | IP67 Rated | by SICK
The Long Range UHF RFID Reader RFU630-13101 is designed for industrial automation, logistics, and manufacturing applications. With an integrated antenna and adjustable output power up to 4 W EIRP, it supports EPCglobal UHF Class 1 Gen 2 and ISO/IEC 18000-6C standards. Its robust IP67-rated aluminum housing ensures durability in harsh environments, making it ideal for efficient asset tracking and identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Long Range UHF RFID Reader | Integrated Antenna | 4 W EIRP | IP67 Rated | by SICK
Brand: SICK
SKU: 1054397
Alternatively Known As: Long Range RFID Reader, UHF RFID Reader, RFID Read/Write Device, Industrial RFID Reader
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 902.75 MHz to 927.25 MHz
- Output power: 4 W EIRP (integrated antenna), alternatively 30 dBm at external antenna port, adjustable
- RFID standard: EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, RAIN
- Modulation: PR-ASK, DSB-ASK
- Aperture angle: 72°
- Read range: up to 10 m
- Antenna: Integrated, circular polarization, axial ratio typically 2 dB
- Front-to-back ratio: > 17 dB
- Connection of external antennas: 3, adjustable up to +30 dBm
- Connection type: 1 x M12 17-pin male connector (A-coded), 1 x M12 4-pin female connector (D-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- Weight: 2.6 kg
- MTBF: > 100 years
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs: 2 physical plus 2 logical via optional memory
- Digital outputs: 2 physical plus 2 logical via optional memory
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Control elements: 2 buttons
- Operator interface: Web server
- Configuration software: SOPAS ET
- Programming interface: SICK AppStudio
- Memory card: microSD for parameter cloning and data storage
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: up to 90%, non-condensing
- EMC: EN 301489-3
- Vibration resistance: EN 60068-2-64
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range UHF RFID read/write device with integrated antenna
- Adjustable output power up to 4 W EIRP with integrated antenna or 30 dBm at external antenna port
- Supports EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, and RAIN RFID standards
- Circular polarization with 72° aperture angle and front-to-back ratio > 17 dB
- Bulk reading capability
- Multiple interfaces including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232/422), CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die cast housing with IP67 rating for harsh environments
- Advanced functions such as diagnosis, updatable firmware, programmable data output format, and SICK AppSpace functionalities
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup, compliance with electrical standards, and optimal device performance.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can optimize resource use and reduce energy consumption
- Durable IP67 housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK RFU630-13101 Long Range RFID Read/Write Device is available for immediate purchase. Ideal for industrial automation, logistics, and manufacturing applications requiring reliable RFID identification.
