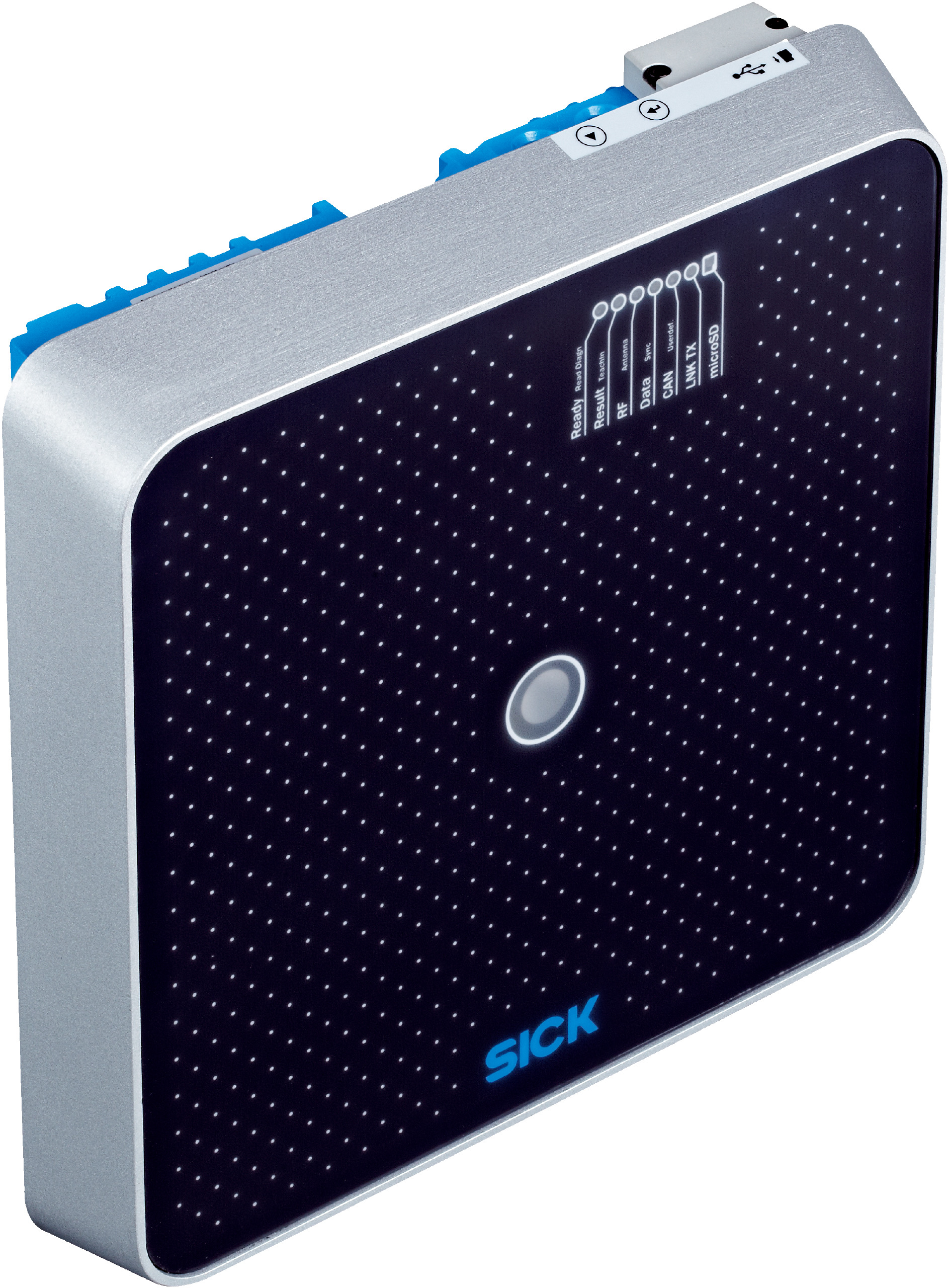

Long Range UHF RFID Reader | Integrated Antenna | Adjustable Output Power | IP67 Rated | by SICK
The Long Range UHF RFID Reader is designed for industrial asset tracking and management, featuring an integrated antenna and adjustable output power up to 2 W ERP. With a robust IP67-rated aluminum housing, it operates efficiently in harsh environments, making it ideal for logistics, warehouse automation, and security systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF (860 MHz to 960 MHz)
- Carrier frequency: 920.625 MHz to 924.375 MHz
- Output power: 2 W ERP with integrated antenna, alternatively 30 dBm at external antenna port, adjustable
- Antenna: Integrated, circular polarization, axial ratio typically 2 dB, front-to-back ratio > 17 dB
- Read range: Up to 10 meters
- Connection type: 1 x M12 17-pin male connector (A-coded), 1 x M12 4-pin female connector (D-coded), 1 x USB 5-pin micro-B socket
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: Typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- MTBF: Greater than 100 years
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: Up to 90%, non-condensing
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range UHF RFID read/write device with integrated antenna
- Adjustable output power up to 2 W ERP with integrated antenna or 30 dBm at external antenna port
- Supports EPCglobal UHF Class 1 Generation 2, ISO/IEC 18000-6 C, RAIN RFID standards
- Bulk reading capability
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial, CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die cast housing with IP67 enclosure rating
- Wide operating temperature range from -30 °C to +60 °C
- Advanced functions such as diagnosis, updatable firmware, programmable data output format, and SICK AppSpace functionalities
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup, configuration, and compliance with electrical standards.
Applications
- Industrial asset tracking and management
- Logistics and warehouse automation
- Supply chain and inventory control
- Access control and security systems
- Manufacturing process automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation to optimize resource use and reduce energy consumption
- Durable IP67 rated housing ensures long product life and reduces replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

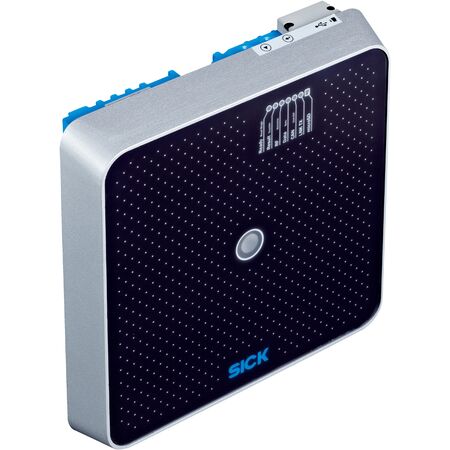

The SICK RFU630-13105 Kit1 China is available for immediate purchase, ideal for industrial and commercial RFID tracking and automation applications.
