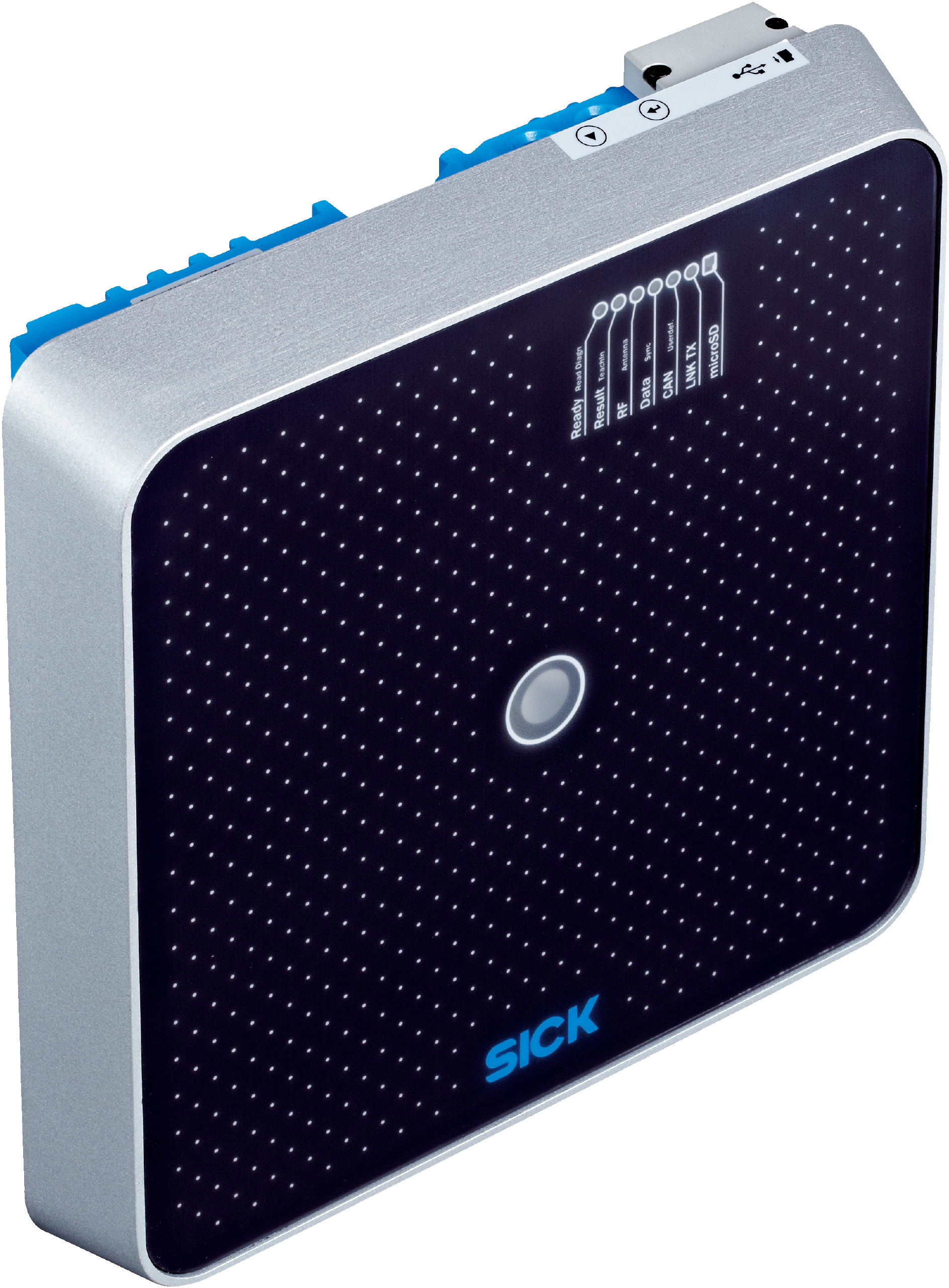

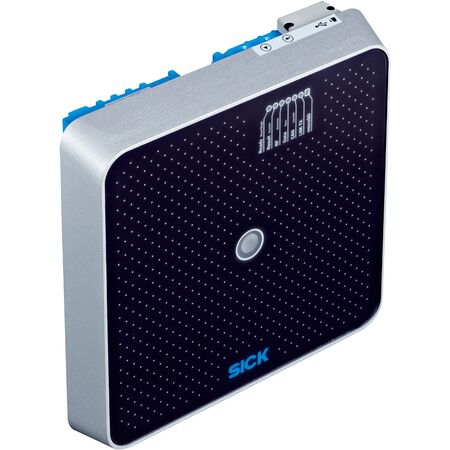

Long Range UHF RFID Reader | Integrated Antenna | Adjustable Output Power | IP67 Rated | by SICK
The Long Range UHF RFID Reader RFU630-13103 is designed for industrial automation, featuring an integrated antenna and adjustable output power up to 2 W ERP. With a robust IP67-rated aluminum housing, it excels in harsh environments, making it ideal for asset tracking and logistics applications. Its multiple interfaces and bulk reading capability ensure seamless integration into existing systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Frequency band: UHF 860 MHz to 960 MHz
- Carrier frequency: 865.7 MHz to 866.9 MHz
- Output power: 2 W ERP (integrated antenna), up to 30 dBm at external antenna port, adjustable
- Antenna: Integrated, circular polarization
- Aperture angle: 72°
- Read range: up to 10 m
- Connection type: 1x M12 17-pin male (A-coded), 1x M12 4-pin female (D-coded), 1x USB 5-pin micro-B
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: typically 20 W
- Housing material: Aluminum die cast
- Enclosure rating: IP67
- Protection class: III
- MTBF: greater than 100 years
- Interfaces: Ethernet (TCP/IP, OPC UA), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232/422), CAN, PROFIBUS DP, USB, CANopen
- Digital inputs/outputs: 2 physical inputs and outputs each, with additional logical inputs/outputs via optional modules
- Indicators: 7 multi-color LEDs, 1 RGB LED, 1 beeper
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +70 °C
- Relative humidity: up to 90%, non-condensing
- Dimensions (H x L x W): 64mm x 239mm x 239mm
- Weight: 2.6 kg
Key Features
- Long range UHF RFID read/write device with integrated antenna
- Adjustable output power up to 2 W ERP or 30 dBm at external antenna port
- Supports EPCglobal UHF Class 1 Gen 2, ISO/IEC 18000-6C, and RAIN RFID standards
- Circular polarization with axial ratio typically 2 dB and front-to-back ratio > 17 dB
- Bulk reading capability
- Multiple interfaces including Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232/422), CAN, PROFIBUS DP, USB, and CANopen
- Robust aluminum die cast housing with IP67 rating for harsh environments
- Wide ambient operating temperature range from -30 °C to +60 °C
- Updatable firmware and programmable data output format with SICK AppSpace functionalities
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup, configuration, and compliance with local regulations.
Applications
- Industrial automation for asset tracking and identification
- Logistics and warehouse management
- Manufacturing process control
- Supply chain management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient asset tracking reducing waste and loss
- Supports automation that can reduce energy consumption in logistics and manufacturing
- Durable IP67 housing extends product life reducing electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RFU630-13103 Long Range RFID Read/Write Device is available for immediate purchase, ideal for industrial automation and asset tracking applications.
