Loop A Line Remote Unit | Open, Short, Connect Modes | Telecom Testing by Aegis
Loop A Line remote unit with open, short, and connect modes—ideal for telecommunications line testing and fault location. Built for technicians, enabling efficient remote testing and diagnostics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

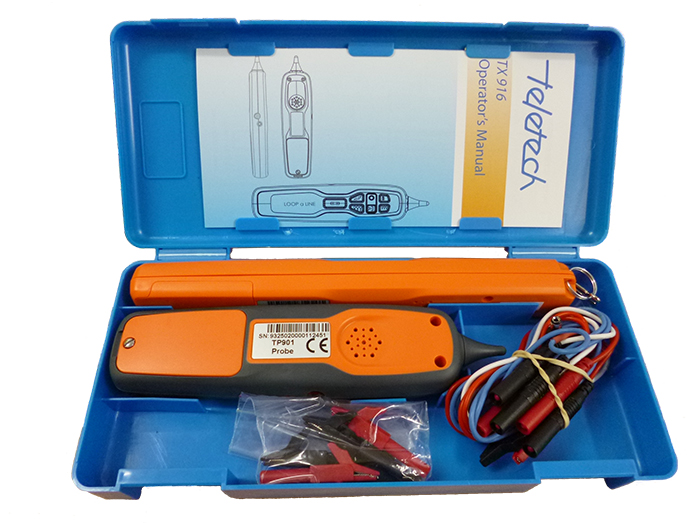

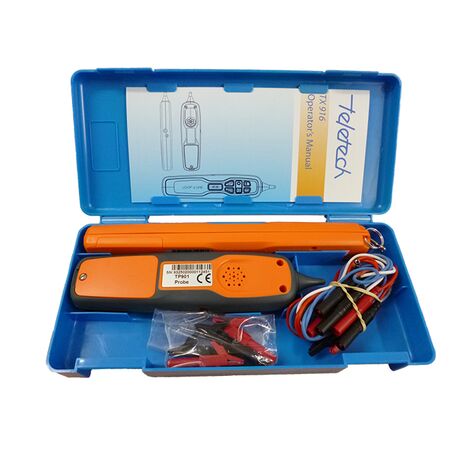

Product Name/Title: Loop A Line
Brand: Aegis
SKU: TX916
Alternatively Known As: Loop-A-Line Remote Unit, Telco Line Tester Remote, Line Fault Locator Remote, Telecom Remote Tester
Technical Specifications
- Modes: Open, Short, Connect, 600 ohm, Tone
- Compatible with TDRs, bridges, and multifunction test units
- Designed for remote line testing and fault location
- Enables connection to exchange MDF, street cabinet, or distribution point
- Dimensions (H x L x W): 60mm x 200mm x 120mm
- Weight: 0.5 kg
Key Features
- Switch between Open, Short, Connect, 600 ohm, and Tone modes from one end
- Enables installation and fault location without traveling between line ends
- Supports testing with foreign battery, insulation resistance, loop resistance, and balance measurements
- Compatible with TDRs, bridges, and multifunction testers
- Allows reconnection of customer service and dial/call back checks
Professional Installation Requirements
- Installation and operation by qualified telecommunications technicians recommended for safety and accuracy.
Applications
- Telecommunications: Line installation and fault location
- Technician use: Remote line testing and diagnostics
- Telecom exchanges, street cabinets, distribution points
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces travel and transport between line ends, lowering carbon footprint
- Minimizes need for multiple technicians, optimizing resource use
Warranty Information
Standard 1 year warranty against manufacturing defects.
Available Now
The Aegis Loop A Line is available now for immediate purchase. Ideal for telecommunications line testing and fault location applications.
