Loop Impedance Tester 230V | Digital LCD Display | 25A, 2.3A, 15mA | CAT III 300V by Eaton

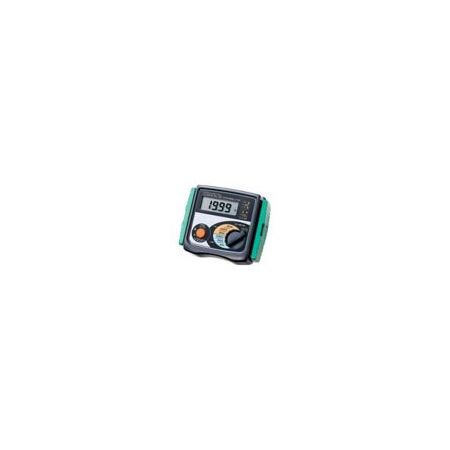

The Kyoritsu 4118A Loop Impedance Tester is designed for electrical testing and maintenance, featuring a digital LCD display and measurement current options of 25A, 2.3A, and 15mA. Ideal for qualified electricians, it ensures compliance with safety standards and is perfect for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Loop Impedance Tester 230V | Digital LCD Display | 25A, 2.3A, 15mA | CAT III 300V by Eaton
Brand: Eaton
SKU: 04118A029C
Alternatively Known As: Loop Impedance Tester, Digital Loop Tester, PSC Tester, Electrical Loop Tester
Technical Specifications
- Input frequency: 50 Hz
- Input nominal voltage: 230 V (range 195 V to 253 V)
- Measurement current: 25A, 2.3A, 15mA
- Loop impedance ranges: 20Ω, 200Ω, 2000Ω
- PSC range: 200A, 2000A, 20,000A
- Safety Category Rating: CAT III 300V
- Display type: LCD
- Certifications: IEC 61557-1, IEC 60529, IEC 61010-1, IEC 61557-3
- Dimensions (H x L x W): 167mm x 185mm x 89mm
- Weight: 0.75 kg
Key Features
- Digital LCD display for clear readings
- Measurement current options: 25A, 2.3A, 15mA
- Loop impedance ranges: 20Ω, 200Ω, 2000Ω
- PSC (Prospective Short Circuit) ranges: 200A, 2000A, 20,000A
- Safety Category Rating: CAT III 300V
- Includes molded plug test leads, distribution board test leads, cord case, shoulder strap, and instruction manual
Professional Installation Requirements
- Use by qualified electricians or trained professionals is recommended to ensure accurate testing and compliance with safety standards.
Applications
- Electrical testing and maintenance
- Loop impedance and prospective short circuit testing in electrical installations
- Industrial and commercial electrical safety verification
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps ensure electrical installations meet safety standards, reducing risk of electrical faults and energy waste
Warranty Information
Standard manufacturer warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Kyoritsu 4118A Loop Impedance Tester is available for immediate purchase, ideal for electrical safety testing in industrial, commercial, and residential applications.
