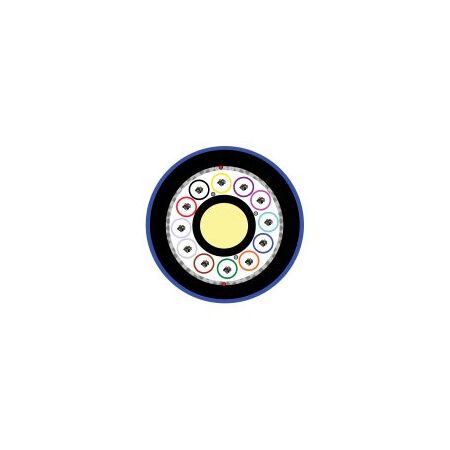

Loose Tube Fibre Cable 24F OM1 PE Nylon Blue Per Metre MSS Data
MSS Data Loose Tube Fibre Cable features 24 core OM1 multimode fibre, dry blocked non-metallic strength member and blue nylon over PE sheath. Ideal for burial.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24F OM1 Multimode Fibre Cable, External Underground Loose Tube Fibre Cable, Direct-Burial Fibre Optic Cable
Technical Specifications
- Fibre Count: 24 cores
- Fibre Type: OM1 multimode
- Fibre Size: 62.5/125 micrometres
- Cable Construction: Loose tube with dry-blocked core
- Strength Member: Non-metallic glass-fibre-reinforced plastic
- Inner Sheath: UV-stabilised polyethylene, black
- Outer Jacket: UV and termite-resistant polyamide nylon, blue
- Waterblocking: Water-swellable elements and gel-filled tube construction
- Installation Environment: Outdoor and underground
- Minimum Bend Radius: 20 x cable outside diameter during installation; 15 x cable outside diameter long term
- Temperature Range: -20°C to 70°C storage; 0°C to 50°C installation; -10°C to 70°C operation
- Nominal Cable Diameter: Approximately 10 mm
- Nominal Cable Weight: Approximately 75 kg/km
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- 24-core OM1 multimode optical fibre construction
- Dry-blocked core helps limit water ingress
- Non-metallic strength member avoids conductive metallic elements
- Blue nylon outer jacket provides UV and termite/insect resistance
- Black PE inner sheath provides additional environmental protection
- Suitable for direct burial or installation in conduit and ducting
- Supplied by the metre for cut-to-length installations
Professional Installation Requirements
- Installation should be performed by an ACMA-registered cabler or suitably qualified communications cabling technician in accordance with manufacturer instructions and applicable Australian cabling requirements, including AS/CA S009:2020.
Applications
- Outdoor telecommunications networks
- Campus and building backbone links
- Underground fibre installations
- Direct-buried communications infrastructure
- Conduit and duct-based fibre runs
- Data and telecommunications service distribution
Standards & Compliance
- AS/CA S008:2020 – Requirements for customer cabling products, where the cable is supplied for customer cabling applications
- AS/CA S009:2020 – Installation requirements for customer cabling
- AS/NZS 3080 – Generic cabling for commercial premises, where used within structured cabling systems
Environmental Benefits
- Non-metallic construction reduces corrosion risk and avoids conductive metal components
- Dry-blocked and water-resistant construction can help extend service life and reduce replacement waste
- Polyethylene and polyamide jacket materials may be recyclable subject to local recycling facilities
- Long-life underground cabling reduces the frequency of cable replacement and associated installation waste
Warranty Information
MSS Data Solutions offers a conditional 25-year product warranty for qualifying MSS Fibre Systems links installed at the original site by an ACMA-registered cabler. Warranty registration, link testing, approved installation practices and other conditions apply.
Available Now
Available through MSS Data Solutions and authorised Australian distributors, subject to cut-to-length requirements and project availability.
