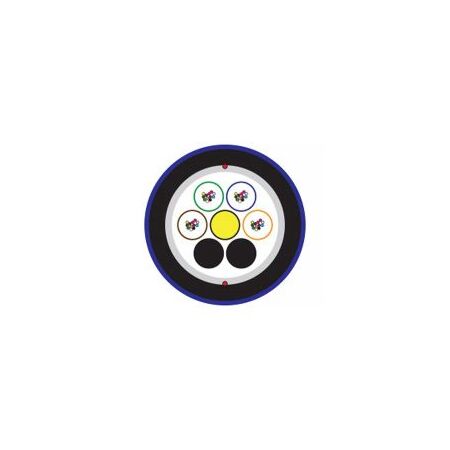

Loose Tube Fibre Cable 48F OM4 PE Nylon Blue Per Metre MSS Data
MSS Data Loose Tube Fibre Cable features 48 core OM4 multimode fibre, dry blocked non-metallic strength member and blue nylon over PE sheath. Ideal for burial.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 48F OM4 Loose Tube Fibre Cable, External OM4 Multimode Fibre Cable, Direct Burial Fibre Optic Cable
Technical Specifications
- Fibre Type: OM4 multimode graded-index
- Number of Fibres: 48
- Fibre Arrangement: Up to 12 fibres per loose tube
- Construction: Loose tube with jelly-filled tubes and dry water-blocked core
- Central Strength Member: Non-metallic glass fibre reinforced plastic (GRP)
- Inner Sheath: UV-resistant polyethylene (PE), black
- Outer Jacket: UV- and insect-resistant polyamide nylon, blue
- Armouring: None
- Installation: Direct burial, conduit or duct applications
- Optical Compliance: AS/NZS 3080, ISO/IEC 11801, IEC 60793-2-10 and ITU-T G.651.1
- Maximum Attenuation at 850 nm: 2.5 dB/km
- Maximum Attenuation at 1300 nm: 0.7 dB/km
- Nominal Cable Diameter: Approximately 10 mm
- Nominal Cable Weight: Approximately 75 kg/km
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- 48-core OM4 multimode fibre construction for high-bandwidth data networks
- Dry-blocked core with water-swellable yarns and tape to limit water ingress
- Jelly-filled loose tubes provide additional moisture protection
- Non-metallic GRP central strength member provides tensile support
- Blue nylon jacket provides UV and termite resistance
- Suitable for direct burial and conduit or duct installation
- Sold by the metre
Professional Installation Requirements
- Installation, termination and testing should be performed by a suitably qualified fibre-optic installer. Where used as customer telecommunications cabling in Australia, installation must follow applicable ACMA requirements and AS/CA S009.
Applications
- Outdoor telecommunications backbone networks
- Enterprise and data-centre inter-building links
- Campus and industrial network infrastructure
- Direct-buried fibre-optic installations
- Conduit and ducted fibre installations
- High-speed OM4 multimode data links
Standards & Compliance
- AS/NZS 3080: Generic cabling for customer premises — referenced for structured cabling performance
- AS/CA S008:2020 Requirements for customer cabling products — applicable where used on the customer side of the telecommunications network boundary
- AS/CA S009:2020 Installation requirements for customer cabling — applicable to installation and maintenance work
Environmental Benefits
- Dry water-blocked construction helps reduce moisture-related failures and replacement waste
- Non-metallic construction avoids corrosion associated with metallic strength members
- Durable UV- and termite-resistant jacket supports a longer outdoor service life
- Fibre-optic data transmission supports high-capacity networks with low electrical energy use in the cable itself
Warranty Information
MSS Data Solutions offers a 25-year project warranty for qualifying MSS Data Solutions fibre links, subject to approved installation by an ACMA-registered cabler, compliant testing, registration and use of MSS Data Solutions products throughout the link. The warranty applies to the original installation site and is subject to the manufacturer’s terms.
Available Now
Available through MSS Data Solutions and authorised Australian distributors; supplied by the metre subject to project and stock availability.
