Trade Discount 20%

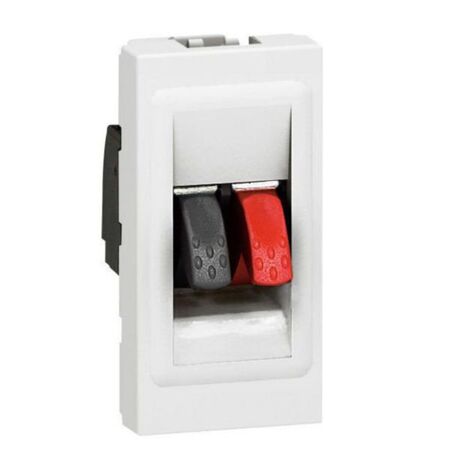

Loudspeaker Socket | 4 mm² Terminal | Flush-Mounted | IP20 Rated | @Each of 1 | by Legrand
The Loudspeaker Socket with a 4 mm² terminal is perfect for audio/video system connections, designed for both residential and commercial use. Its flush-mounted installation and glossy white finish ensure a sleek look, while the halogen-free thermoplastic material provides durability and safety. Ideal for connecting two loudspeakers, this socket meets IP20 standards for indoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Loudspeaker Socket | 4 mm² Terminal | Flush-Mounted | IP20 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 572270
Alternatively Known As: Loudspeaker Socket, Audio Socket, Speaker Terminal Socket, Flush Mount Loudspeaker Connector
Technical Specifications
- Terminal size: 4 mm²
- Number of modules: 1
- Material: Thermoplastic, halogen free
- Colour: White (RAL 9003)
- Surface finish: Glossy
- Mounting method: Flush-mounted
- Degree of protection: IP20
- Impact resistance: IK04
- Operating temperature: -5 to 50 °C
- Storage temperature: -10 to 70 °C
- Suitable for 2 connectors
- Type of fastening: Snap engage
- Dimensions (H x L x W): 45mm x 36mm x 22.5mm
- Weight: 0.1 kg
Key Features
- Designed for loudspeaker connection with 4 mm² terminal
- Flush-mounted installation with 1 module size
- Square white glossy thermoplastic finish
- Halogen free material
- Suitable for 2 connectors
- IP20 rated for indoor use
- IK04 impact resistance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical wiring standards and safety.
Applications
- Audio/video system connections
- Loudspeaker connections in residential and commercial buildings
- Flush-mounted installations in home and building wiring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free materials reduce environmental impact
- Durable thermoplastic construction for long product life
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor Loudspeaker Socket 4 mm² Terminal 1 Module White is available now for immediate purchase. Ideal for residential and commercial audio/video system installations.
