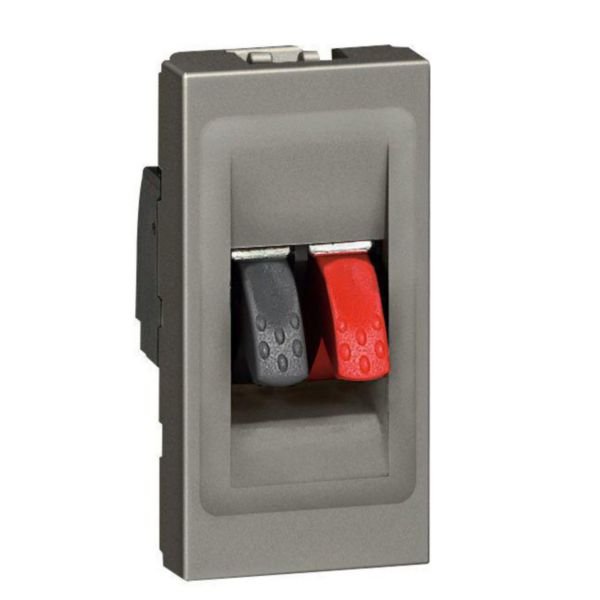

Loudspeaker Socket | 4 mm² Terminal | Flush-Mounted Design | IP20 Rated | @EA of 1 | by Legrand
The Arteor™ Loudspeaker Socket features a 4 mm² terminal, designed for seamless loudspeaker connections in home audio and video systems. With a sleek flush-mounted design and glossy aluminium thermoplastic material, it ensures a clean finish while providing IP20 protection against solid objects. Ideal for both residential and commercial installations, this socket is easy to install with its snap-on fastening method.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Loudspeaker Socket | 4 mm² Terminal | Flush-Mounted Design | IP20 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 572770
Alternatively Known As: Loudspeaker terminal socket, Audio speaker socket, 4 mm² speaker connector, Flush mount speaker socket
Technical Specifications
- Terminal size: 4 mm²
- Material: Thermoplastic, aluminium colour
- Surface finish: Glossy
- Mounting method: Flush-mounted
- Number of modules: 1
- Degree of protection: IP20
- Impact strength: IK04
- Operating temperature range: -5 to 50 °C
- Storage temperature range: -10 to 70 °C
- Fastening type: Snap-on
- Dimensions (H x L x W): 45mm x 22mm x 22.5mm
- Weight: 0.1 kg
Key Features
- Designed for loudspeaker connection with 4 mm² terminal
- Modular device compatible with domestic switching devices
- Flush-mounted installation for a clean finish
- Glossy aluminium thermoplastic material
- Halogen free and environmentally safer
- IP20 rated for protection against solid objects
- Impact resistance rated IK04
- Snap-on fastening for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Home audio and video systems
- Loudspeaker connections in residential and commercial buildings
- Flush-mounted audio installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free materials reduce environmental impact
- Durable thermoplastic construction extends product life
- Supports energy-efficient audio system installations
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor Loudspeaker Socket 4 mm² Terminal 1 Module Magnesium is available for immediate purchase, ideal for residential and commercial audio system installations.
