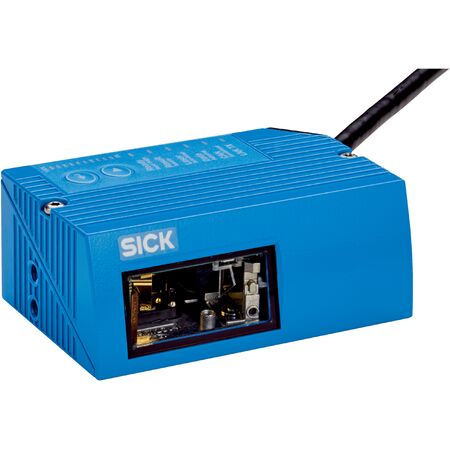

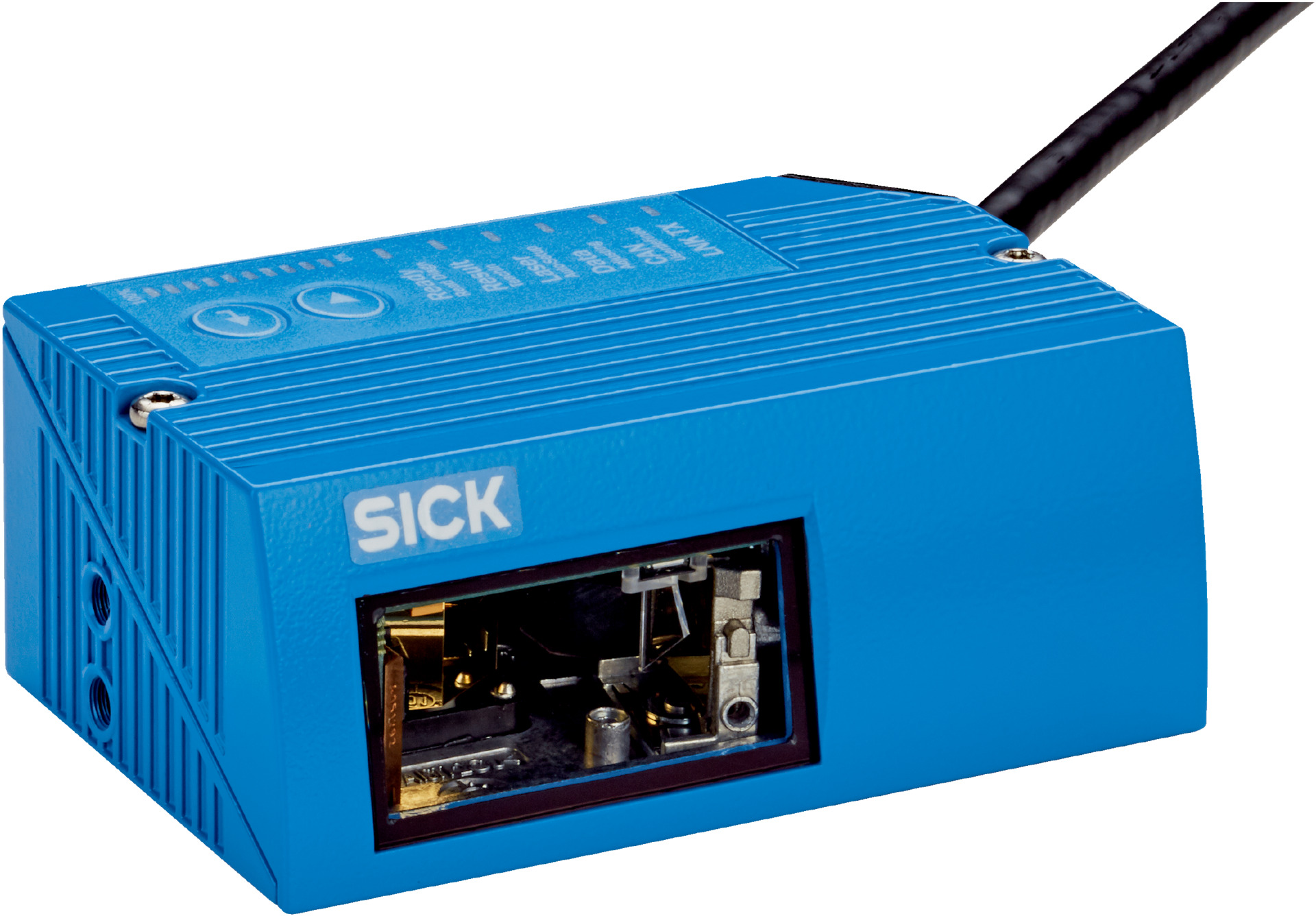

Low Density Line Scanner | Auto Focus Optical System | IP65 Rated | by SICK
The Low Density Line Scanner CLV651-0000 features an auto focus optical system and reads 1D barcodes including Code 39 and Code 128. With a reading distance of 170 mm to 930 mm and a high scanning frequency of 600 Hz to 1000 Hz, it's perfect for industrial automation, logistics, and manufacturing process control. Built with a robust aluminum housing and IP65 rating, this scanner ensures durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Low Density Line Scanner | Auto Focus Optical System | IP65 Rated | by SICK
Brand: SICK
SKU: 1046557
Alternatively Known As: SICK CLV651, SICK Line Scanner, Industrial Barcode Scanner, SICK Laser Scanner
Technical Specifications
- Version: Low Density
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus
- Light source: Visible red laser spot, 658 nm
- Laser class: 2, compliant with IEC 60825-1:2014 and related standards
- Aperture angle: ≤ 50°
- Reading distance: 170 mm to 930 mm
- Scanning frequency: 600 Hz to 1000 Hz
- Code resolution: 0.5 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 8.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 320 g including cable
- MTBF: 100,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 6 LEDs and acoustic beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.32 kg
Key Features
- Low density line scanner with auto focus optical system
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Reading distance from 170 mm to 930 mm
- High scanning frequency between 600 Hz and 1000 Hz
- Laser class 2 with visible red light spot at 658 nm
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET, EtherCAT, CAN, and Serial
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Supports up to 50 codes per reading interval and 5000 characters
- MicroSD memory card support for configuration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient laser scanning technology minimizes power consumption
- Supports long operational lifetime with MTBF of 100,000 hours
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK CLV651-0000 Low Density Line Scanner is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
