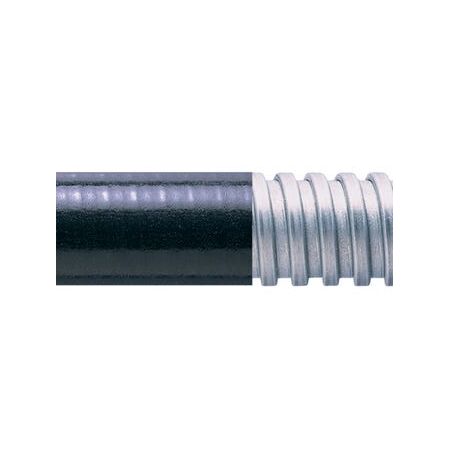

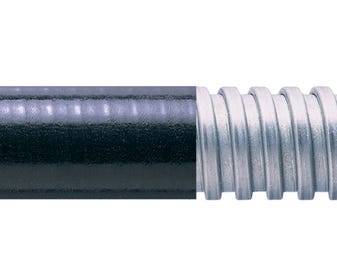

Low Fire Hazard Flexible Conduit 20mm | Galvanised Steel | IP69 Rated | UV Resistant by Cabac
Cabac CONDUIT LT LOW FIRE HAZ FLEX 20MMX25M BK is a galvanised steel conduit with a low fire hazard jacket, suitable for static and dynamic applications with high UV resistance and IP69 rating when fitted appropriately.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT LT LOW FIRE HAZ FLEX 20MMX25M BK
Brand: Cabac
SKU: LFH-SPL20/25M
Alternatively Known As: Low Fire Hazard Flexible Conduit, LFH Steel Conduit, Fire Resistant Conduit 20mm
Technical Specifications
- Temperature range - static applications: -20ºC to +90ºC
- Temperature range - dynamic applications: -5ºC to +105ºC
- Material: Galvanised steel with LFH jacket
- IP rating: Up to IP69 with appropriate SPL fitting
- UV resistance: High
- Dimensions (H x L x W): 20mm x 25000mm x 20mm
- Weight: 2.5 kg
Key Features
- Low Fire Hazard (LFH) jacket covered galvanised steel conduit
- Medium flexibility and medium fatigue life
- Halogen free and self-extinguishing
- High UV resistance
- Up to IP69 rating with appropriate SPL fitting
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure compliance with safety standards and proper fitting.
Applications
- Underground rail systems
- Infrastructure projects
- Construction sites requiring fire hazard reduction
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free and self-extinguishing properties reduce toxic emissions during fire incidents
- Durable construction reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac CONDUIT LT LOW FIRE HAZ FLEX 20MMX25M BK is available for immediate purchase, ideal for infrastructure, rail, and construction applications requiring fire hazard reduction.
