Low Fire Hazard Flexible Conduit 63mm | Galvanised Steel | IP69 Rated & UV Resistant by Cabac

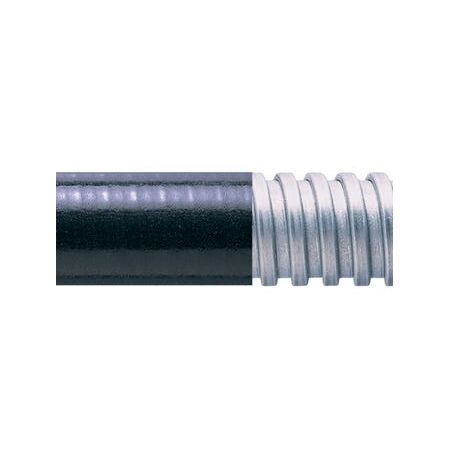

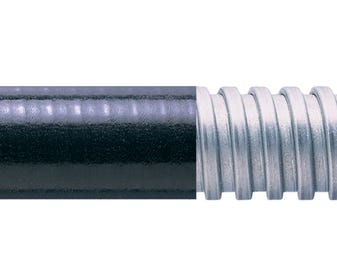

Cabac CONDUIT LT LOW FIRE HAZ FLEX 63MMX10M BK is a galvanised steel conduit with a low fire hazard jacket, suitable for static and dynamic applications with high UV resistance and IP69 rating when fitted appropriately.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CONDUIT LT LOW FIRE HAZ FLEX 63MMX10M BK
Brand: Cabac
SKU: LFH-SPL63/10M
Alternatively Known As: Low Fire Hazard Flexible Conduit, LFH Steel Conduit, Galvanised Steel Conduit 63mm, Fire Resistant Conduit
Technical Specifications
- Temperature range - static applications: -20ºC to +90ºC
- Temperature range - dynamic applications: -5ºC to +105ºC
- Material: Galvanised steel with LFH jacket
- IP rating: Up to IP69 with appropriate SPL fitting
- UV resistance: High
- Dimensions (H x L x W): 63mm x 10000mm x 63mm
- Weight: 2.5 kg
Key Features
- Low Fire Hazard (LFH) jacket covered galvanised steel conduit
- Medium flexibility and medium fatigue life
- Halogen free and self-extinguishing
- High UV resistance
- Up to IP69 rating with appropriate SPL fitting
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with electrical and safety standards.
Applications
- Underground rail systems
- Infrastructure projects
- Construction sites requiring fire hazard reduction
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free and self-extinguishing properties reduce toxic emissions during fire incidents
- Durable construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac CONDUIT LT LOW FIRE HAZ FLEX 63MMX10M BK is available for immediate purchase, ideal for underground rail, infrastructure, and construction applications.
