Low Fire Nylon Conduit 25mm | UV Resistant | Flame Retardant & Flexible | 50m by Cabac

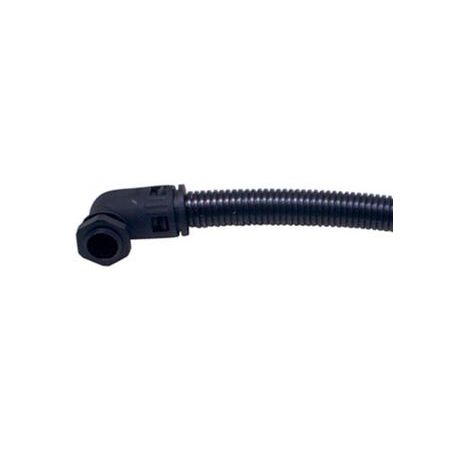

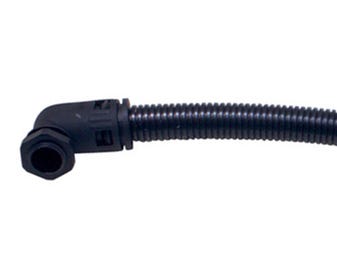

Cabac Low Fire Nylon Conduit 25mm 50m offers flexible, flame retardant, and UV resistant cable protection made from halogen-free PA6 nylon, suitable for industrial and automotive applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Low Fire Nylon Conduit 25mm 50m
Brand: Cabac
SKU: CF025-B-50
Alternatively Known As: Low Fire Hazard Nylon Conduit, PA6 Nylon Flexible Conduit, Flame Retardant Cable Conduit, Halogen Free Nylon Conduit, UL94 V2 Nylon Conduit
Technical Specifications
- Material: Polyamide 6 (PA6) Nylon
- Temperature rating: -40 to 115°C (Intermittent to 150°C)
- Nominal Size: 25mm
- Inner Diameter (ID): 23mm
- Outer Diameter (OD): 28.5mm
- Minimum Bend Radius: 45mm
- Length: 50m
- Flammability rating: UL94 V-2
- Dimensions (H x L x W): 25mm x 50000mm x 25mm
- Weight: 1.2 kg
Key Features
- Made from UV resistant PA6 nylon
- Low fire hazard with UL94 V-2 flammability rating
- Halogen, phosphor, and cadmium free
- Resistant to chemicals including oils, acids, and solvents
- Excellent flexibility and mechanical strength
- Self-extinguishing and flame retardant
- IP66 rated, RoHS compliant and anti-static
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper conduit routing.
Applications
- Machine tools wiring protection
- Industrial equipment cable management
- Automotive electrical insulation
- Air-conditioning equipment wiring
- Railway rolling stock cable protection
- General wiring requirements in industrial environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen, phosphor, and cadmium free material reduces environmental toxicity
- UV resistance extends product life reducing waste
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies. Please refer to Cabac warranty policy for details.
Available Now
The Cabac Low Fire Nylon Conduit 25mm 50m is available now for immediate purchase. Ideal for industrial, automotive, and general wiring protection applications.
