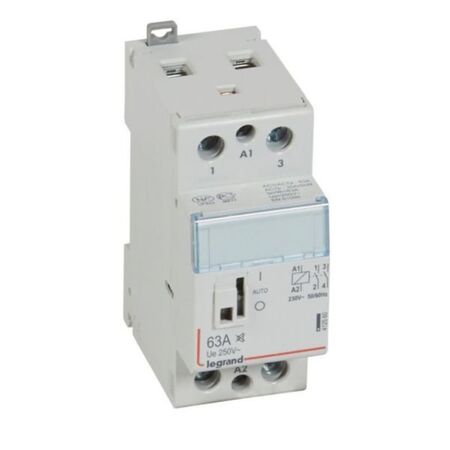

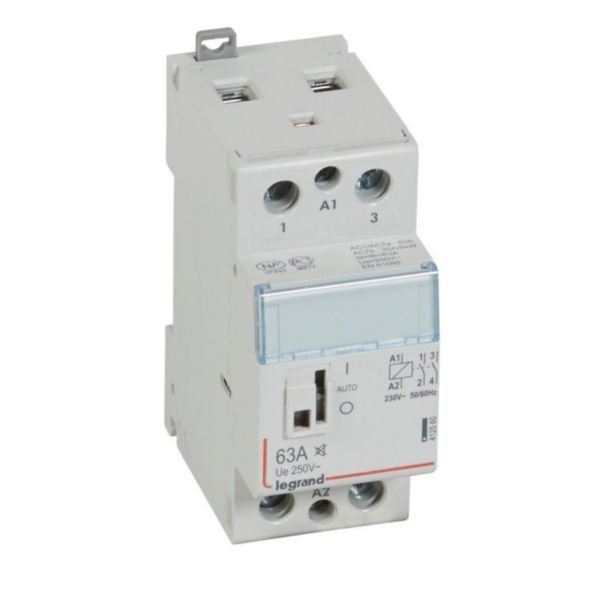

Low Noise Contactor CX³ | 2 Pole | 63A | 250V AC | Front Face Handle | @EA of 1 | by Legrand
The Low Noise Contactor CX³ is designed for industrial control applications, featuring a 63A rating and 250V AC operation. With two normally open contacts and a convenient front face handle, it allows for direct control and testing. Ideal for switchboards and motor control systems, this contactor ensures low noise operation and energy-efficient coil performance, making it a reliable choice for commercial electrical setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Low Noise Contactor CX³ | 2 Pole | 63A | 250V AC | Front Face Handle | @EA of 1 | by Legrand
Brand: Legrand
SKU: 412560
Alternatively Known As: Low noise contactor CX3, 2 pole contactor 63A, Legrand CX³ contactor, 230V coil contactor, industrial contactor 2 NO
Technical Specifications
- Utilization category: AC7a or AC1 - 63A / AC7b or AC3 - 30A
- Conforms to IEC/EN 61095
- Rated operating voltage: 250 V AC
- Rated operation current: 63 A
- Rated excitation voltage: 195-253 V AC
- Number of normally open contacts: 2
- Number of normally closed contacts: 0
- Max incandescent lamp load: 8000 W
- Max fluorescent lamp load: 4700 VA
- Max fluorescent lamp load (Duo circuit): 5000 VA
- Max fluorescent lamp load (parallel compensated): 1700 VA
- Slider for hand switch included
- Width in modular spacings: 2
- Built-in depth: 44 mm
- Degree of protection: IP2X
- Additional equipment possible
- Handle accessible after removing blanking plate
- Dimensions (H x L x W): 94mm x 44mm x 68mm
- Weight: 0.2 kg
Key Features
- Low noise operation
- 2 normally open (NO) contacts
- Front face handle for direct control and testing
- Rated operating current of 63A
- 230V AC coil voltage
- Easy DIN rail mounting with two clamps
- Label holder for clear circuit identification
- Permanent ON or OFF without automatic reset
- IP2X degree of protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician in compliance with local electrical installation rules to ensure safety and proper operation.
Applications
- Industrial control panels
- Switchboards and power cabinets
- Control and signalling circuits
- Motor control and automation systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low noise design reduces noise pollution in work environments
- Durable construction extends product lifespan, reducing waste
- Energy efficient coil operation minimizes power consumption
Warranty Information
Legrand offers a standard warranty covering manufacturing defects; please refer to official documentation for warranty duration and terms.
Available Now
The Legrand Low Noise Contactor CX³ 2 Pole 63A 250V with front face handle is available for immediate purchase, ideal for industrial and commercial electrical control applications.
