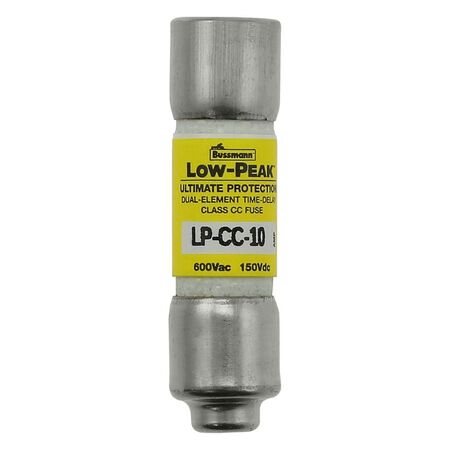

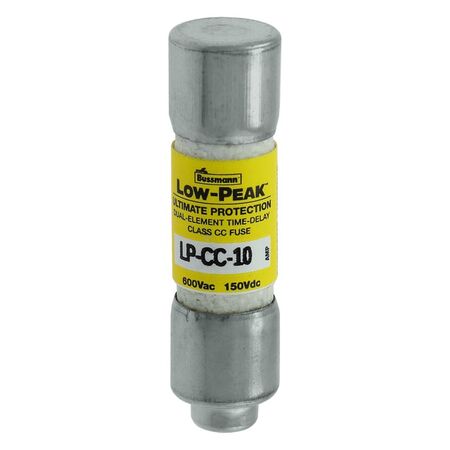

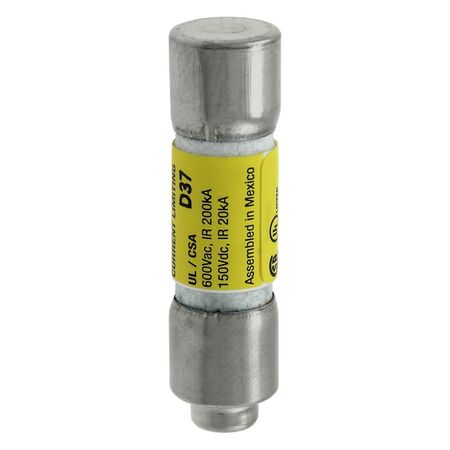

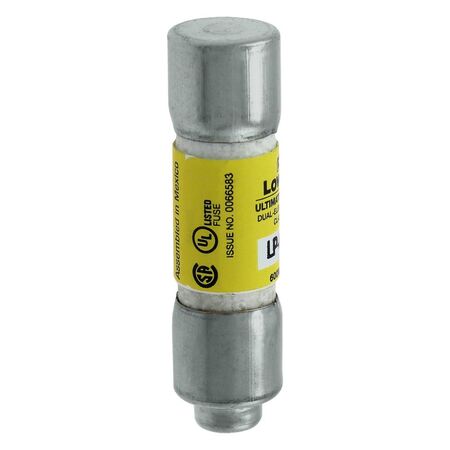

LOW PEAK CC TIME DELAY Fuse 10A Amperage Current-Limiting Design Eaton
The LOW PEAK CC TIME DELAY fuse is a 10A current-limiting fuse designed for reliable circuit protection in specialized and industrial control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Amperage Rating: 10 A
- Voltage Rating: 600 Vac, 150 Vdc
- Interrupting Rating: 200 kA at 600 Vac, 20 kA at 150 Vdc
- Response Time: 12 seconds at 200% rated current
- Material: Melamine tube
- Connection Type: Ferrule end x ferrule end
- Fuse Indicator: Non-indicating
- Type: Current-limiting time-delay fuse
- Number of Elements: Dual
- Dimensions (H x L x W): 10mm x 38mm x 10mm
- Weight: 0.1 kg
Key Features
- Dual-element time-delay design for reliable circuit protection
- Current-limiting fuse to reduce damage during short circuits
- Rejection style fuse for correct fuse selection
- Interrupting rating of 200 kA at 600 Vac and 20 kA at 150 Vdc
- Non-indicating fuse with ferrule end connections
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse selection.
Applications
- Specialized circuits
- Industrial control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- CE marked for environmental and safety standards compliance
Warranty Information
Not applicable
Available Now
The Eaton Bussmann Series LP-CC 10A fuse is available for immediate purchase, ideal for use in specialized circuits and industrial control applications.
