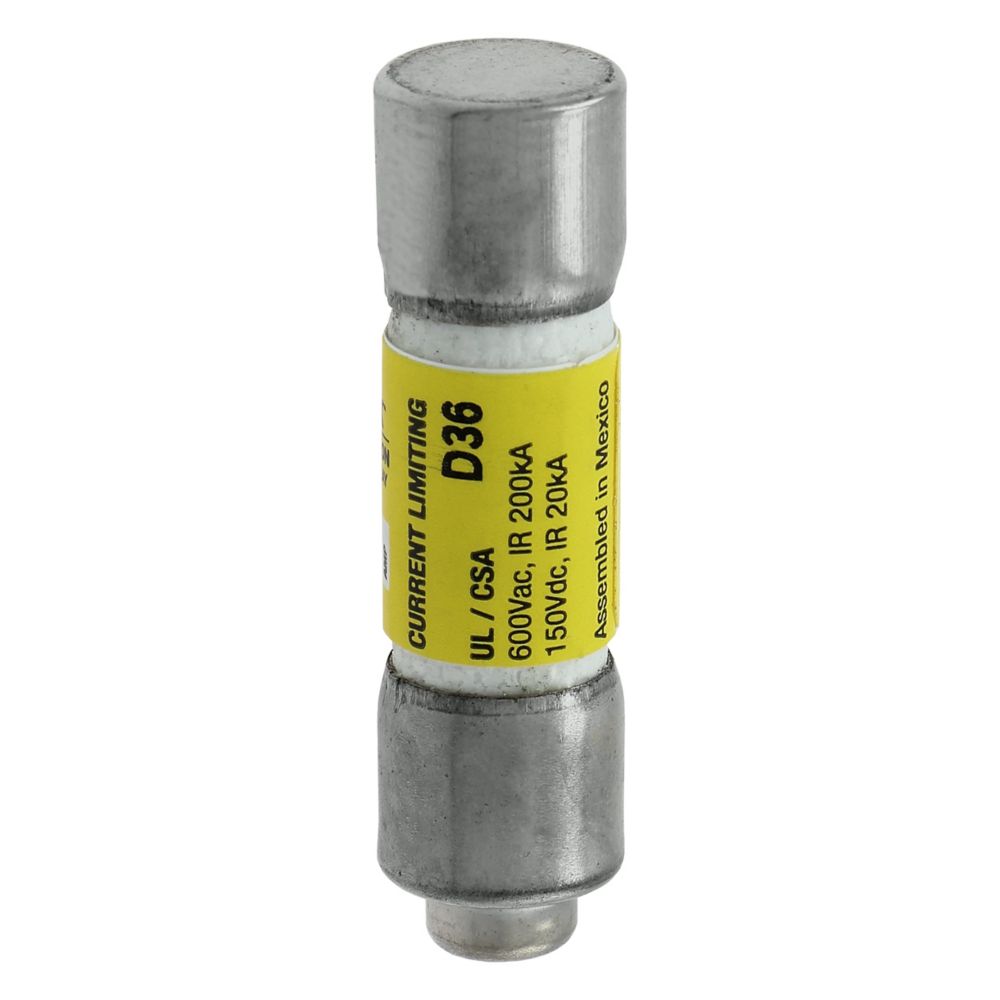

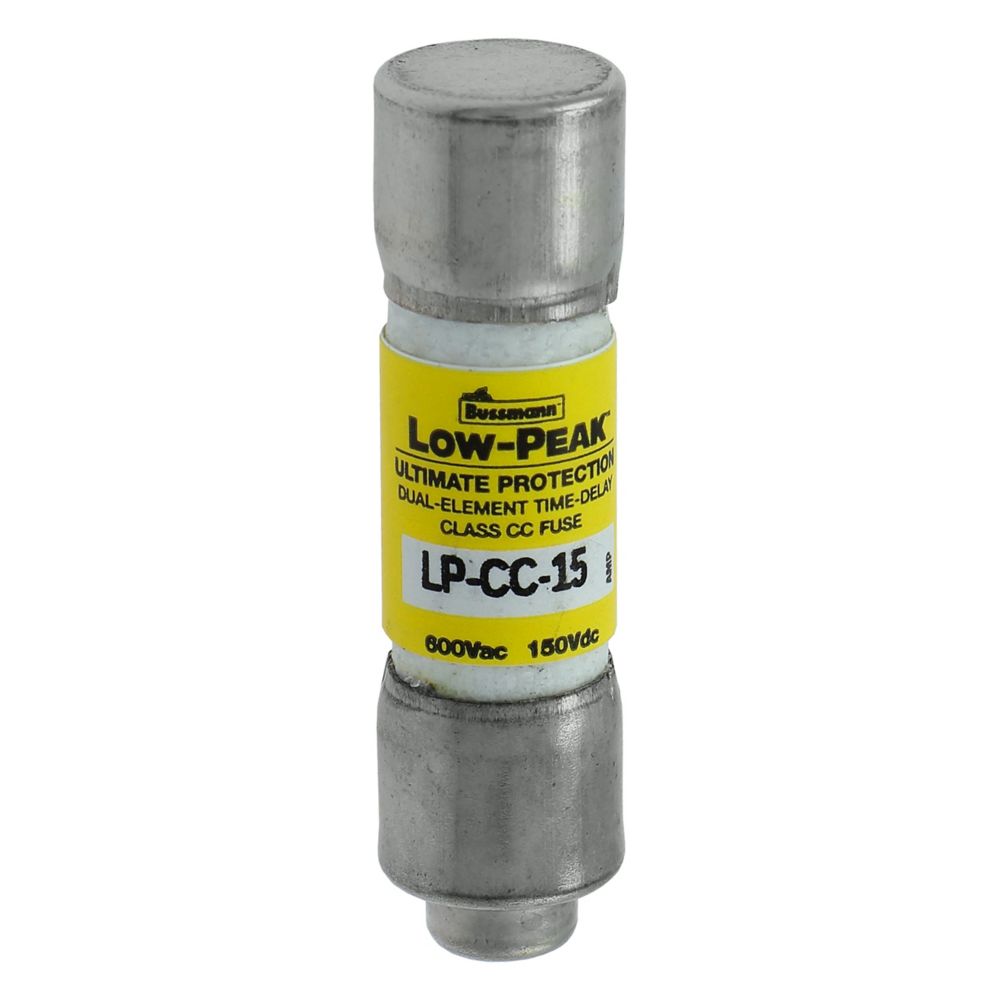

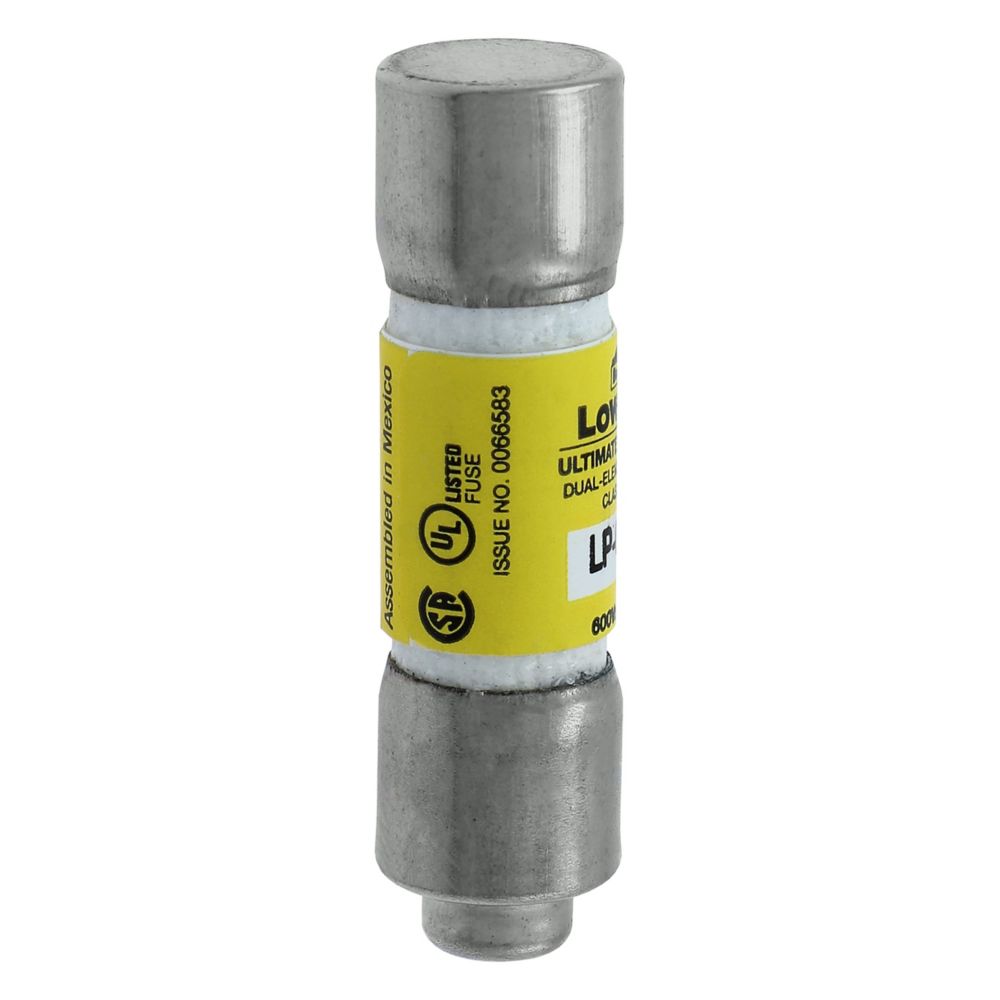

LOW PEAK CC TIME DELAY Fuse | 15A Amperage | Current-Limiting Design | Rejection Style | @Each by Eaton
The LOW PEAK CC TIME DELAY fuse is a 15A current-limiting fuse designed for reliable protection in specialized circuits and industrial control systems. With a time-delay dual-element design and an interrupting rating of 200 kA at 600 Vac, it minimizes damage during short circuits. Ideal for professional installations, this non-indicating fuse ensures compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LOW PEAK CC TIME DELAY Fuse | 15A Amperage | Current-Limiting Design | Rejection Style | @Each by Eaton
Brand: Eaton
SKU: LP-CC-15
Alternatively Known As: Class CC fuse, LP-CC fuse, time-delay fuse, current limiting fuse 15A
Technical Specifications
- Amperage Rating: 15 A
- Voltage Rating: 600 Vac, 150 Vdc
- Interrupting Rating: 200 kA at 600 Vac, 20 kA at 150 Vdc
- Response Time: 12 seconds at 200% overload
- Material: Melamine tube
- Connection Type: Ferrule end x ferrule end
- Fuse Indicator: Non-indicating
- Class: Class CC
- Type: Current-limiting time-delay fuse
- Special Features: Rejection style
- Dimensions (H x L x W): 10.4mm x 38.1mm x 10.4mm
- Weight: 0.1 kg
Key Features
- Time-delay dual-element design for reliable protection
- Current-limiting fuse to reduce damage during short circuits
- Rejection style fuse to prevent incorrect fuse replacement
- Interrupting rating of 200 kA at 600 Vac and 20 kA at 150 Vdc
- Non-indicating fuse with ferrule end connections
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse selection.
Applications
- Specialized circuits
- Industrial control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Not applicable
Available Now
The Eaton Bussmann Series LP-CC 15A time-delay fuse is available for immediate purchase, ideal for use in specialized circuits and industrial control applications.
