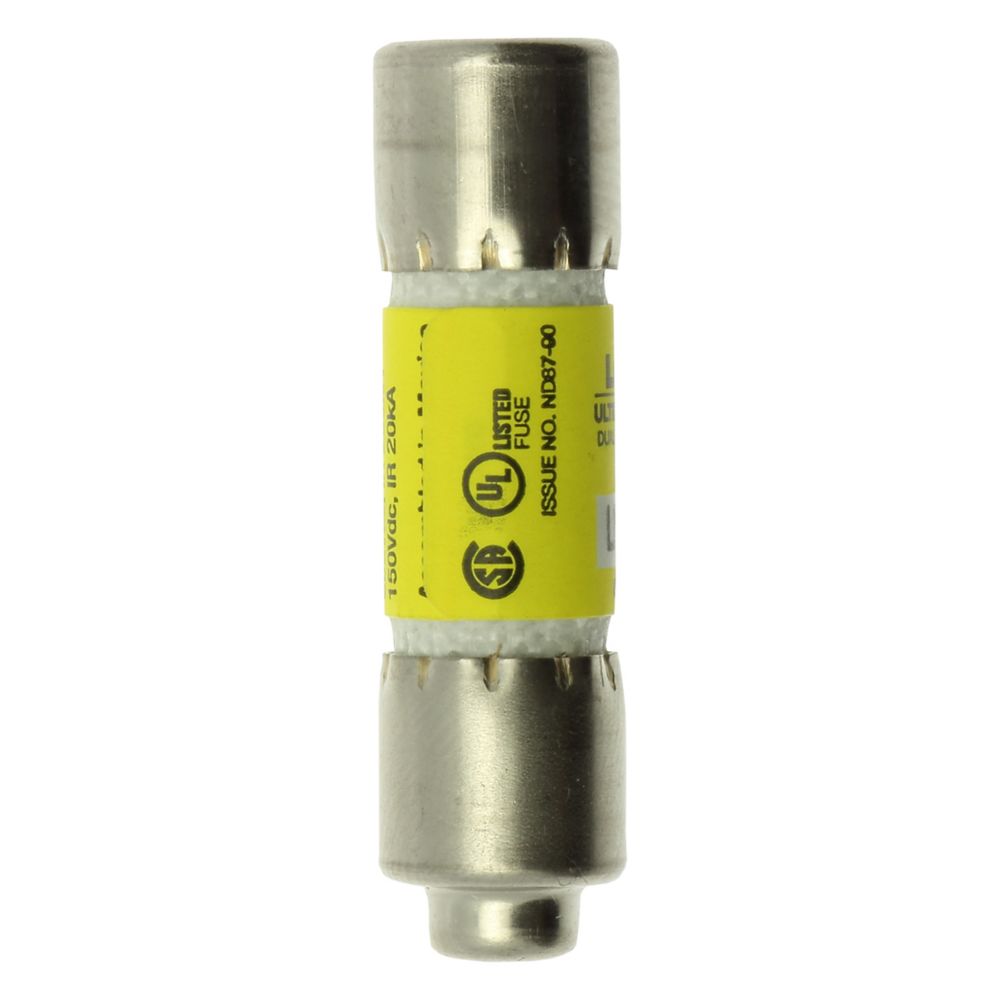

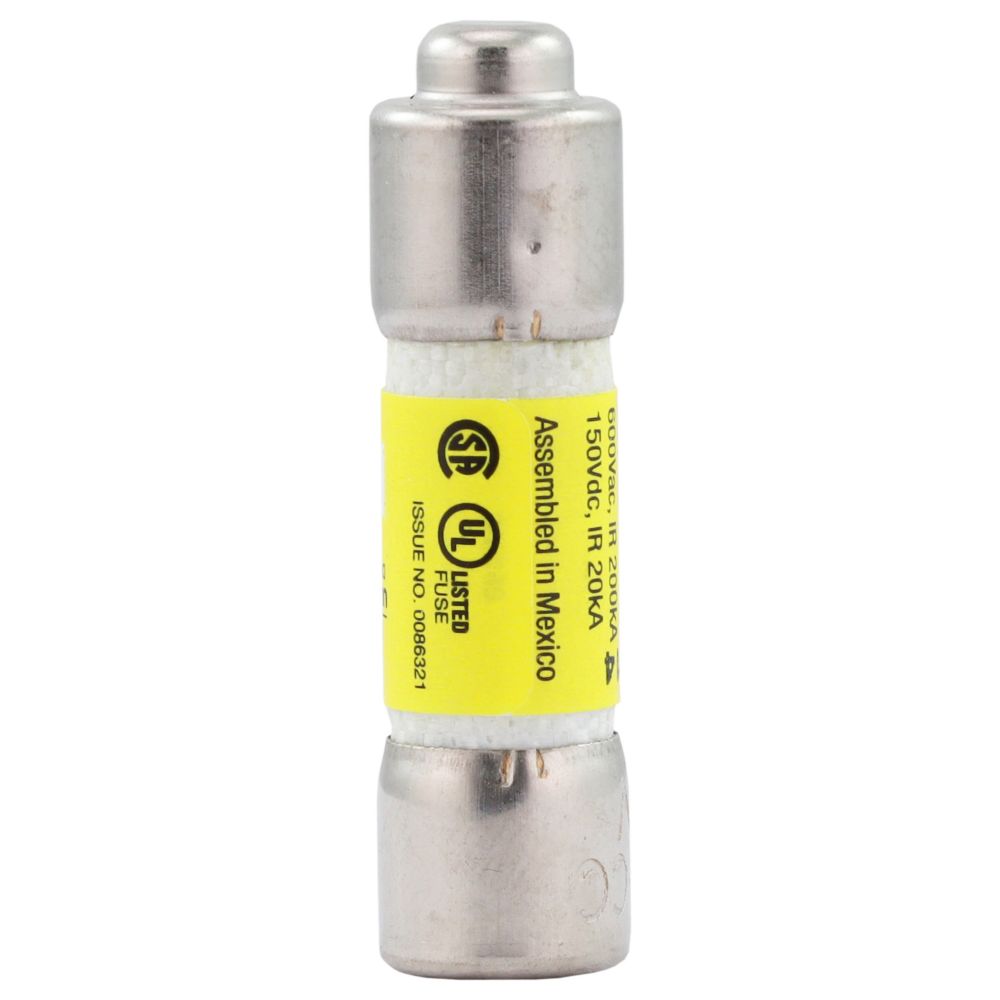

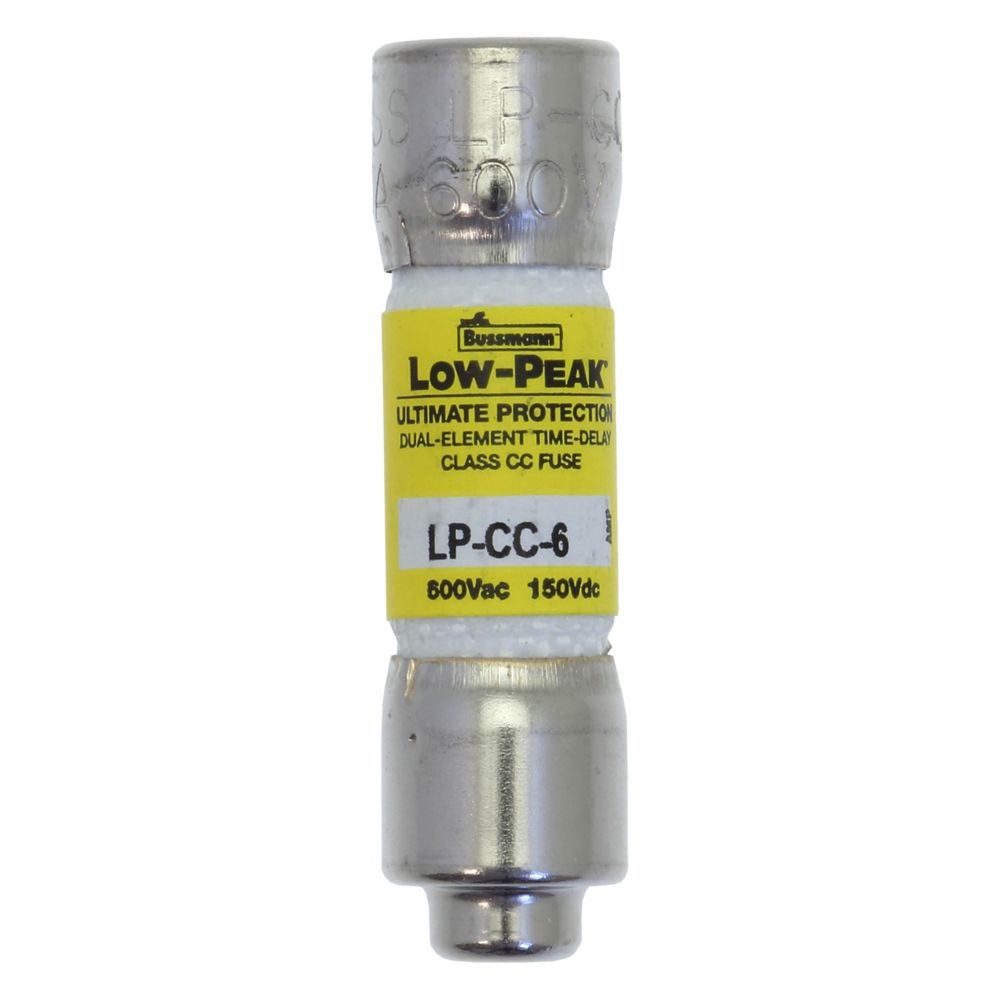

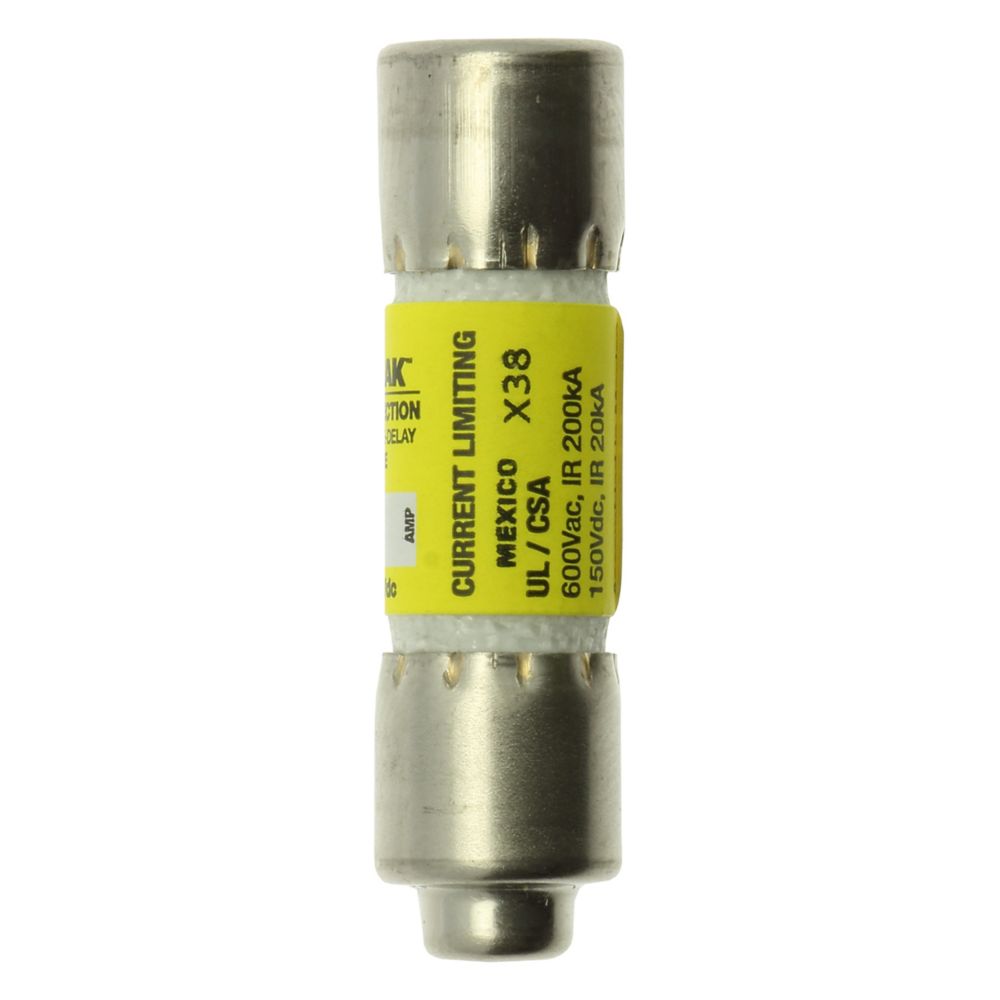

LOW PEAK CC TIME DELAY Fuse | 6A Amperage | Current Limiting | Rejection Style | @Each by Eaton
The LOW PEAK CC TIME DELAY fuse is a 6A current-limiting fuse designed for specialized circuits and industrial control systems. With a dual-element time-delay design, it protects against temporary overloads while reducing let-through energy to safeguard your equipment. This non-indicating fuse features ferrule end connections and complies with AS/NZS 3000 standards, making it a reliable choice for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LOW PEAK CC TIME DELAY Fuse | 6A Amperage | Current Limiting | Rejection Style | @Each by Eaton
Brand: Eaton
SKU: LP-CC-6
Alternatively Known As: Class CC fuse, LP-CC fuse, time-delay fuse, current limiting fuse 6A
Technical Specifications
- Amperage Rating: 6 A
- Voltage Rating: 600 Vac, 150 Vdc
- Interrupting Rating: 20 kA at 150 Vdc, 200 kA at 600 Vac
- Response Time: 12 seconds at 200% overload
- Material: Melamine tube
- Connection Type: Ferrule end x ferrule end
- Fuse Indicator: Non-indicating
- Class: Class CC
- Type: Current-limiting time-delay fuse
- Special Features: Rejection style
- Dimensions (H x L x W): 38mm x 10mm x 10mm
- Weight: 0.1 kg
Key Features
- Dual-element time-delay design for protection against temporary overloads
- Current limiting fuse to reduce let-through energy and protect equipment
- Rejection style fuse to prevent incorrect fuse replacement
- Interrupting rating of 20 kA at 150 Vdc and 200 kA at 600 Vac
- Non-indicating fuse with ferrule end connections
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse selection.
Applications
- Specialized circuits
- Industrial control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Not applicable
Available Now
The Eaton Bussmann Series LP-CC 6A Time-Delay Dual-Element Current Limiting Fuse is available for immediate purchase, ideal for specialized circuits and industrial control applications.
