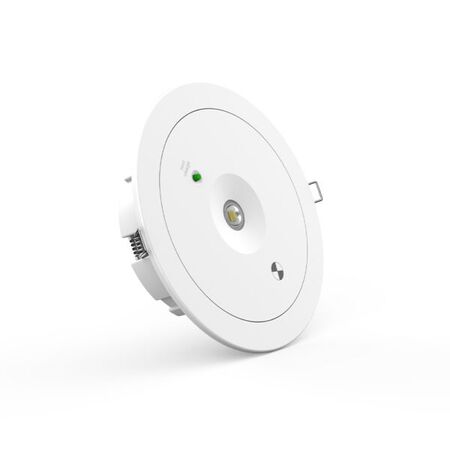

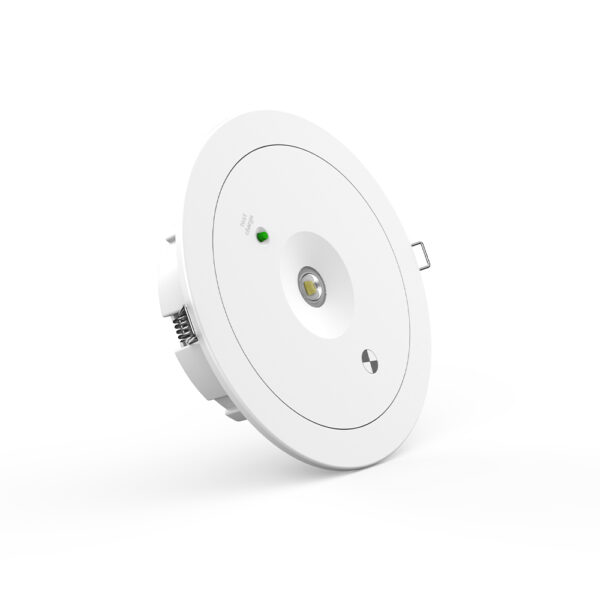

Low Profile Emergency Luminaire | IP44 Rated | Wireless Support | by Ektor
The Low Profile Emergency Luminaire is designed for seamless recessed installation, featuring an IP44 rating for moisture protection and wireless monitoring capabilities. Ideal for both commercial and residential applications, this luminaire ensures safety during emergencies with a non-maintained mode lasting up to 90 minutes, making it a reliable choice for escape routes and exit pathways.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Slimfire Emergency Light, Low Profile Emergency Luminaire, Wireless Emergency Exit Light
Technical Specifications
- IP Rating: IP44 front face only
- IC Rating: IC-4 for insulation coverage
- Body Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 1.7 W
- Input Voltage: 230Vac (-6%/+10%)
- Standby Power: 0.5 W
- Driver Type: Fixed output, integrated
- Dimmable: No
- Flex & Plug Length: 1200 mm
- Wiring Type: Non-rewireable flex & plug
- Emergency Mode: Non-maintained
- Emergency Classification: C0:D50, C90:D50
- Emergency Output Power: 2250 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 275 lm
- Emergency Control: IEC62386-104 wireless DT1
- Product Design Life: 8 years
- Dimensions (H x L x W): 50mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- Low profile recessed design
- IP44 rated front face for moisture protection
- IC-4 rated for safe insulation coverage
- Non-maintained emergency mode with 90 minutes duration
- Wireless test and monitoring support via IEC62386-104
- Fixed output integrated driver included
- Polycarbonate body for durability
- Standby power consumption of 0.5 W
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with Australian electrical and safety standards.
Applications
- Commercial and residential emergency lighting
- Recessed installation in ceilings
- Emergency escape routes and exit pathways
Standards & Compliance
- AS/NZS 60598.1 – Luminaires
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS CISPR 15 – Limits and methods of measurement of radio disturbance characteristics
- AS/NZS 4268 – EMC for lighting equipment
- AS/NZS 2772.2 – Electromagnetic compatibility
Environmental Benefits
- Low power consumption reduces energy usage
- Long product design life of 8 years minimizes waste
- Wireless monitoring reduces need for manual testing and maintenance
Warranty Information
6 years return to base warranty for commercial use.
Available Now
The Ektor Lynk Slimfire Low Profile Emergency Luminaire with Wireless is available for immediate purchase, ideal for commercial and residential emergency lighting applications.
