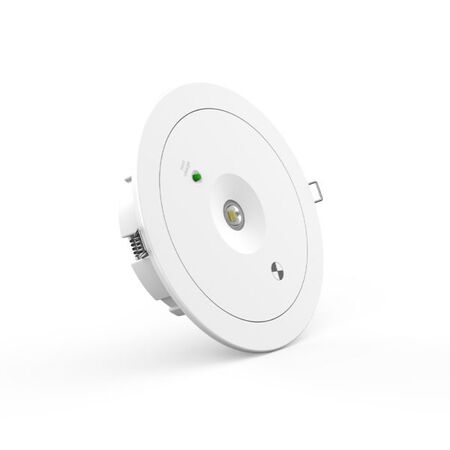

Low Profile Emergency Luminaire Slimfire D50 IP44 Rated Non Ektor

BRAND: Ektor
SKU: EV-SLIMFIRE-CORE
$95.70 List price: $115.80
+ −
30 Days Return Electricians Unlock Trade Access
Ektor Low Profile Emergency Luminaire Slimfire features 1200mm length, 2250m power rating, and 264 lm emergency lumen output.

Alternatively Known As: Slimfire Emergency Light, Low Profile Emergency Luminaire, Recessed Emergency Light, Ektor Emergency Luminaire

Technical Specifications
  • IP Rating: IP44 front face only
  • IC Rating: IC-4 at maximum working temperature
  • Body Material: Polycarbonate
  • Installation Type: Recessed
  • Working Temperature Range: 0 to 40 °C
  • Input Frequency: 50 Hz
  • Input Voltage: 230Vac (-6%/+10%)
  • Maximum Wattage: 1 W
  • Standby Power: 0.5 W
  • Driver Type: Fixed output, integrated
  • Dimmable: No
  • Flex & Plug Length: 1200 mm
  • Wiring Type: Non-rewireable flex & plug
  • Emergency Mode: Non-maintained
  • Emergency Classification: C0:D50, C90:D50
  • Emergency Output Power: 2250 mW
  • Emergency Duration: 90 minutes
  • Emergency Lumen Output: 264 lm
  • Replacement Battery Code: 01308
  • Product Design Life: 6 years
  • Dimensions (H x L x W): 50mm x 150mm x 150mm
  • Weight: 0.5 kg
Key Features
  • Low profile recessed design with IP44 front face rating
  • IC-4 rated for safe insulation coverage in Australian environments
  • Non-maintained emergency mode with 90 minutes duration
  • Integrated fixed output driver included
  • Emergency lumen output of 264 lm
  • Standby power consumption of 0.5 W
  • Polycarbonate body for durability
  • Non-dimmable
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with Australian electrical and safety standards.
Applications
  • Commercial and residential recessed emergency lighting
  • Emergency escape routes and exit pathways
  • Indoor environments requiring low profile emergency luminaires
Standards & Compliance
  • AS/NZS 60598.1 – Luminaires General Requirements
  • AS/NZS 60598.2.22 – Emergency Lighting Luminaires
  • AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
Environmental Benefits
  • Low power consumption with 1 W maximum wattage and 0.5 W standby power reduces energy use.
  • Long product design life of 6 years minimizes waste and replacement frequency.
Warranty Information

5 years return to base (RTB) warranty for commercial use.

Available Now

The Ektor Slimfire Low Profile Emergency Luminaire D50 is available for immediate purchase, ideal for commercial and residential emergency lighting applications.
