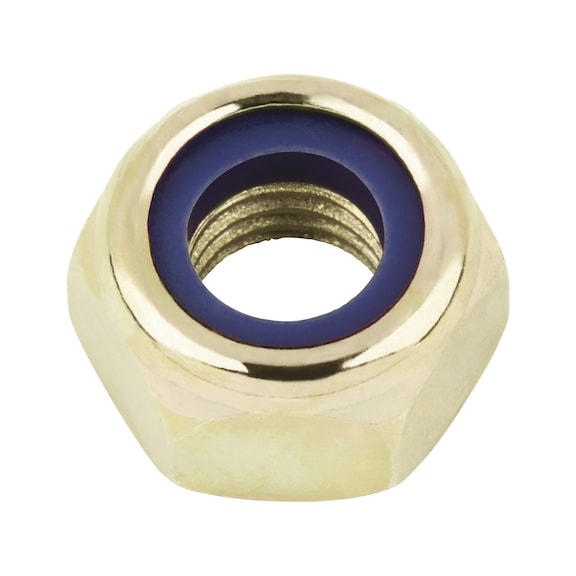

Low Profile Hexagon Nut DIN 985 | Steel I10I | Zinc-Plated Yellow Chromated | @Pack of 25 | by Wurth
Low Profile Hexagon Nut DIN 985 is designed for secure fastening in mechanical assemblies, featuring a steel construction with a zinc-plated yellow chromate finish. Ideal for automotive and machinery components, this nut includes a clamping part polyamide ring that prevents loosening, ensuring reliability in vibration-prone environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Low Profile Hexagon Nut DIN 985 | Steel I10I | Zinc-Plated Yellow Chromated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 37012
Alternatively Known As: Low Profile Hex Nut, Locking Hex Nut, DIN 985 Nut, Clamping Nut, Nylon Insert Nut
Technical Specifications
- Thread type x nominal diameter (D): M12
- Height (m1): 12 mm
- External drive (s1): WS19
- Material: Steel
- Property class: I10I
- Surface: Zinc plated yellow chromated
- RoHS-compliant: No
- Form: Low profile
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 12mm x 19mm x 19mm
- Weight: 0.05 kg
Key Features
- Low profile hexagon nut with reduced load capacity
- Complies with withdrawn DIN 985 standard
- Clamping part polyamide ring provides locking against loosening
- High friction locking torque maintains preload force
- No damage to thread surfaces during use
- Operating temperature range from -70°C to +120°C
- Strength class I10I with approximately 40% greater load capacity than I8I
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening with vibration resistance
- Automotive and machinery components
- General industrial fastening applications
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners and related standards
Environmental Benefits
- Zinc plating with yellow chromate provides corrosion resistance extending product life
- Durable steel construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Hexagon Nut low profile with clamping piece is available for immediate purchase, ideal for industrial and mechanical fastening applications.
