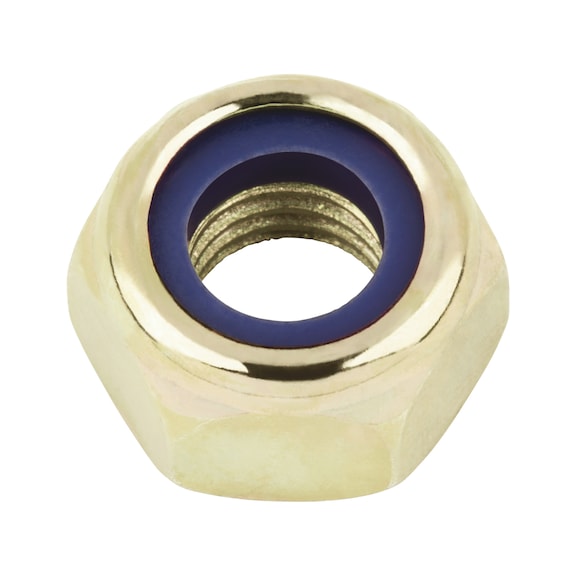

Low Profile Hexagon Nut DIN 985 | Zinc-Plated Yellow Chromated | Locking Function | @Pack of 25 | by Wurth
Low Profile Hexagon Nut DIN 985 features a zinc-plated yellow chromated finish and a reliable locking function, making it ideal for mechanical assemblies that require secure fastening and vibration resistance. Designed for automotive and machinery applications, this nut ensures no damage to thread surfaces during locking, providing enhanced durability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Low Profile Hexagon Nut DIN 985 | Zinc-Plated Yellow Chromated | Locking Function | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 37010
Alternatively Known As: Low Profile Hex Nut, Locking Hex Nut, DIN 985 Nut, Clamping Nut, Nylon Insert Nut
Technical Specifications
- Thread type x nominal diameter (D): M10
- Height (m1): 10 mm
- External drive (s1): WS17
- Standards: DIN 985 (withdrawn, replaced by DIN 10511, 10512, 7040)
- Material: Steel
- Property class: I10I
- Surface: Zinc plated yellow chromated
- RoHS-compliant: No
- Form: Low profile
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 10mm x 10mm x 17mm
- Weight: 0.05 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard, replaced by DIN 10511, 10512, and 7040
- Locking function achieved by a polyamide clamping ring preventing loosening
- High friction locking torque generated by clamping forces between thread profiles
- No damage to thread surfaces during locking
- Operating temperature range from -70°C to +120°C
- Strength class I10I with approximately 40% greater load capacity than I8I
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening with vibration resistance
- Automotive and machinery applications needing locking nuts
- General industrial fastening where reduced load capacity nuts are suitable
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners (equivalent to DIN standards)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial and mechanical fastening applications requiring secure locking nuts.
