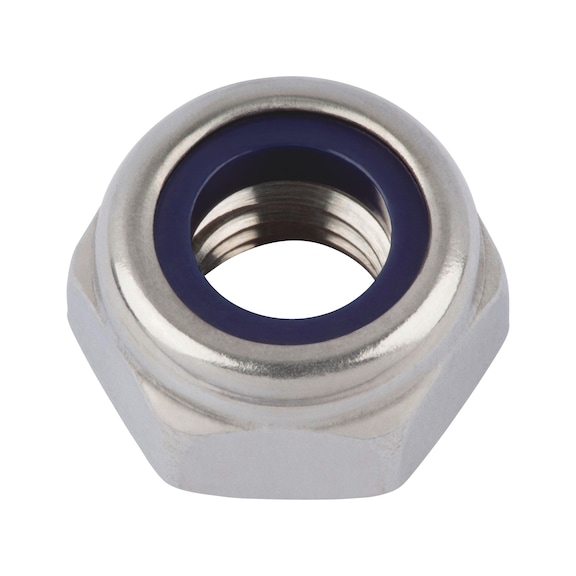

Low Profile Hexagon Nut M6 | Stainless Steel A4 | Polyamide Insert | @Pack of 10 | by Wurth
Low Profile Hexagon Nut M6 is crafted from durable stainless steel A4, featuring a polyamide insert for enhanced locking against loosening. Ideal for mechanical assemblies and automotive applications, this nut ensures secure fastening even in vibration-prone environments. With a reduced height design, it complies with DIN standards and is RoHS-compliant, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Low Profile Hexagon Nut M6 | Stainless Steel A4 | Polyamide Insert | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 3976
Alternatively Known As: Low Profile Hex Nut, DIN 985 Lock Nut, Stainless Steel Locking Nut M6, Polyamide Insert Nut
Technical Specifications
- Thread type x nominal diameter (D): M6
- Height (m1): 6 mm
- External drive (s1): WS10
- Standards: DIN 985
- Material: Stainless steel A4
- Surface: Plain
- RoHS-compliant: Yes
- Form: Low profile
- Locking device operating principle: Clamping part polyamide ring
- Locking function: Locking against loosening by clamping
- Dimensions (H x L x W): 6mm x 10mm x 10mm
- Weight: 0.02 kg
Key Features
- Hexagon nuts with reduced load capacity and lower nominal height
- Complies with withdrawn DIN 985 standard replaced by DIN 10511, 10512, and 7040
- Locking function achieved by a polyamide clamping ring preventing loosening
- No damage to thread surfaces due to clamping locking mechanism
- Operating temperature range from -70°C to +120°C
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and locking function.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive and machinery applications
- Situations requiring vibration-resistant locking nuts
Standards & Compliance
- Complies with AS/NZS 1252 for mechanical fasteners (equivalent to DIN standards)
Environmental Benefits
- Made from stainless steel A4 which is corrosion resistant and durable, reducing replacement frequency and waste
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for mechanical, automotive, and industrial fastening applications.
