Trade Discount 25%

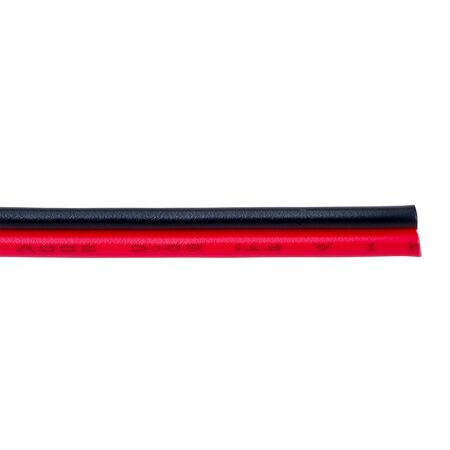

Low Voltage Cable 2 Core 22 AWG 300V Black Havit
Havit Low Voltage Cable features 2 Core, 22 AWG, 300V. Ideal for low-voltage and garden lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Conductor: 22 AWG (0.33 sqmm)
- Nominal outer diameter: 1.6/3.2 mm
- Temperature Rating: -30 to +80 Degrees
- Voltage (AC/DC): 300 V
- Current Rating: 2.1 A
- Dimensions (H x L x W): 1.6mm x 1000mm x 3.2mm
- Weight: 0.1 kg
Key Features
- Red/Black insulation for polarity identification.
- PVC insulation conductor: 22 AWG (0.33 sqmm).
- Temperature rating: -30 to +80 degrees.
- Voltage rating: 300 V.
- Current rating: 2.1 A.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and performance.
Applications
- Ideal for use with single colour 12v or 24v DC LED strip.
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Complies with relevant electrical safety standards.
Warranty Information
3 years replacement warranty for items ordered after 01/01/2022.
Available Now
The Havit HV9981 2 Core Red and Black Cable is available now for trade and commercial electrical projects, ideal for LED strip applications.
FAQ
Q: What voltage and current rating does the Havit HV9981 support?
A: The HV9981 is rated at 300V with a 2.1A current capacity, making it suitable for low-voltage LED strip circuits running at 12V or 24V DC. The temperature rating of -30 to +80 degrees supports use across a range of indoor and outdoor installation environments.
Q: Why is the red and black insulation on this cable useful?
A: The red and black PVC insulation provides immediate polarity identification, which is particularly important on LED strip installations where reversing polarity can damage the strip. It removes guesswork during termination and speeds up the installation process.
For installations involving colour-changing strips, a 4 core RGB cable handles the additional channels required for RGB control wiring.
Where five-channel RGBW control is needed, a 5 core black cable provides the conductor count for full RGBW LED strip wiring.
A 3 core clear cable suits applications requiring a neutral conductor alongside active and earth for low-voltage lighting circuits.
