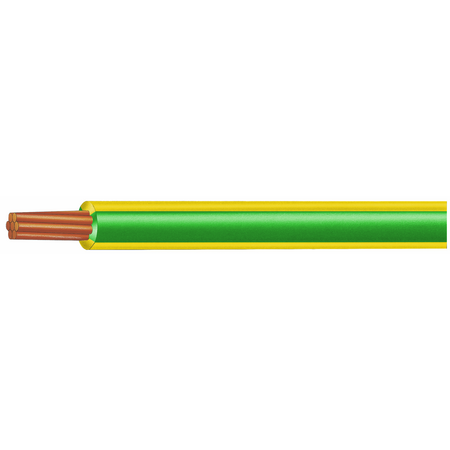

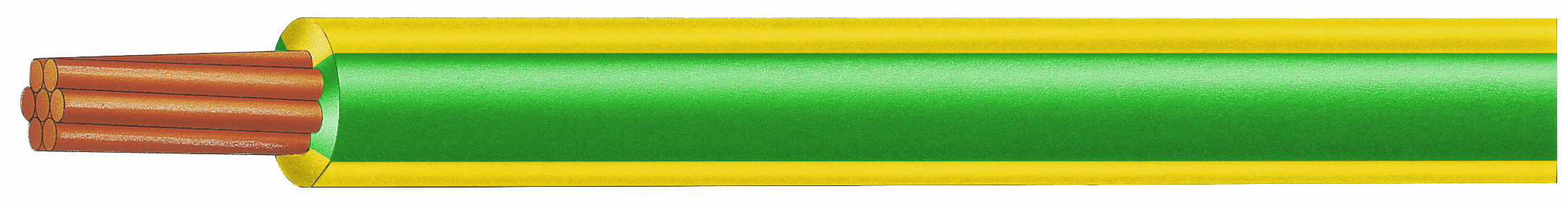

Low Voltage Cable Building Wire | 70mm² Single Core | V-90 Insulation | Green/Yellow Sheath | @M of 100 | by Electra Cables
Low Voltage Cable Building Wire with a 70mm² single core copper conductor and V-90 PVC insulation—ideal for fixed electrical installations. Designed for residential, commercial, and industrial applications, this cable features a green/yellow sheath for easy earth identification and is supplied in a convenient 100m length.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Low Voltage Cable Building Wire | 70mm² Single Core | V-90 Insulation | Green/Yellow Sheath | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: SR1700-100G/Y
Alternatively Known As: ['70mm earth cable', '70mm2 single core building wire', 'green yellow earth wire 70mm', 'V-90 insulated cable', 'low voltage PVC cable 70mm']
Technical Specifications
- Conductor: Plain annealed copper, single core
- Cross Sectional Area: 70mm²
- Insulation: V-90 PVC
- Sheath: PVC, Green/Yellow
- Voltage Rating: 0.6/1kV
- Temperature Rating: 90°C maximum continuous operating temperature
- Length: 100m
- Compliance: AS/NZS 5000.1
- Flame retardant and UV resistant
- Dimensions (H x L x W): 18mm x 100000mm x 18mm
- Weight: 65 kg
Key Features
- Single core, 70mm² copper conductor for high current capacity
- V-90 PVC insulation for enhanced electrical safety
- Green/Yellow sheath for easy earth identification
- Suitable for fixed wiring in industrial, commercial, and residential applications
- Supplied in 100m continuous length for convenience
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules and local regulations.
Applications
- General electrical wiring in residential, commercial, and industrial buildings
- Earthing and bonding applications
- Suitable for use in switchboards, control panels, and fixed installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables for working voltages up to and including 0.6/1kV
Environmental Benefits
- PVC insulation and sheath are lead-free and compliant with RoHS standards
- Durable construction reduces need for frequent replacement
- UV resistant sheath extends cable lifespan outdoors
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
Available for immediate purchase. Ideal for fixed electrical installations in residential, commercial, and industrial environments requiring reliable earthing and high current capacity.
