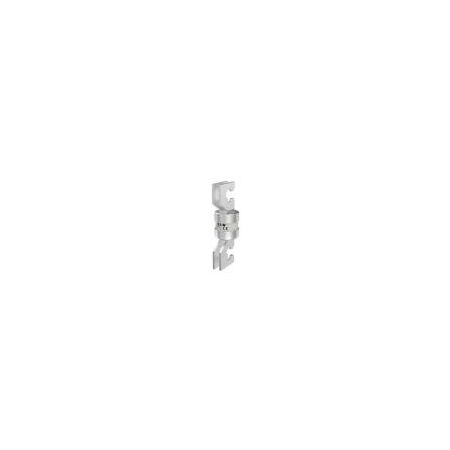

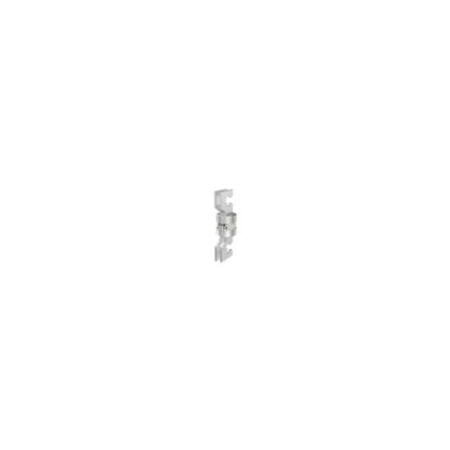

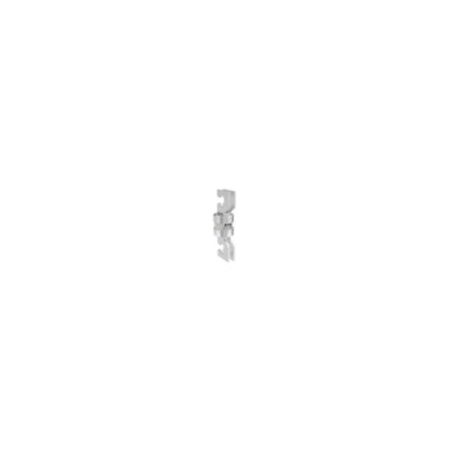

Low Voltage Fuse 315A 415V AC | 80 kA Breaking Capacity | gG/gL Class | BS88/J by Eaton
This 315A 415V AC low voltage fuse is designed for industrial and commercial electrical systems, featuring an 80 kA breaking capacity and gG/gL class compliance. Ideal for electrical panels and switchboards, it ensures reliable protection with easy installation using slotted tags.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Low Voltage Fuse 315A 415V AC | 80 kA Breaking Capacity | gG/gL Class | BS88/J by Eaton
Brand: Eaton
SKU: 315MJ31-7
Alternatively Known As: Low Voltage Fuse 315A, Type J Fuse, BS88/J Fuse, Eaton 315MJ31-7 Fuse
Technical Specifications
- Amperage Rating: 315 A
- Voltage Rating: 415 V AC
- Breaking Capacity: 80 kA
- Class: gG/gL
- Fuse Type: MJ31
- Construction: BS88/J
- Fitted with: Slotted tags
- Certifications: BS IEC 60269, EAC
- Compliances: CE Marked, RoHS Compliant
- Dimensions (H x L x W): 40mm x 142mm x 190mm
- Weight: 0.3 kg
Key Features
- 315A amperage rating
- 415V AC voltage rating
- Breaking capacity of 80 kA
- Class gG/gL fuse type
- BS88/J construction standard
- Fitted with slotted tags for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse operation.
Applications
- Industrial electrical systems requiring low voltage protection
- Commercial electrical installations
- Electrical panels and switchboards
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- CE marked for safety and environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's warranty policy for details.
Available Now
The Eaton Bussmann Series 315A 415V AC Type J Fuse is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
