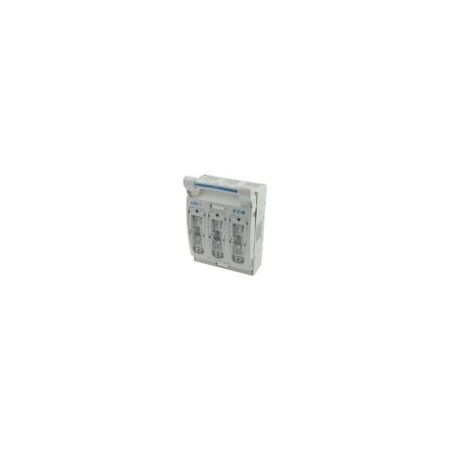

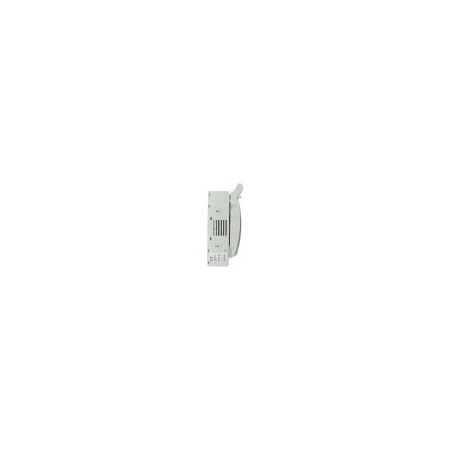

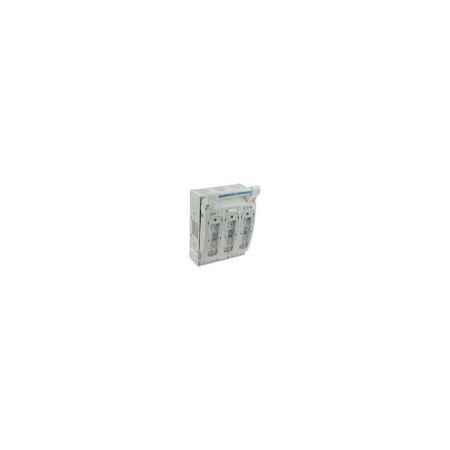

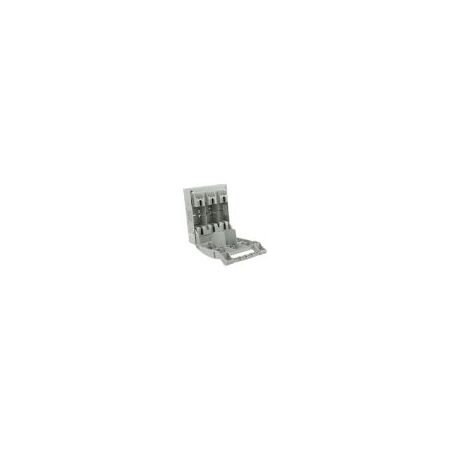

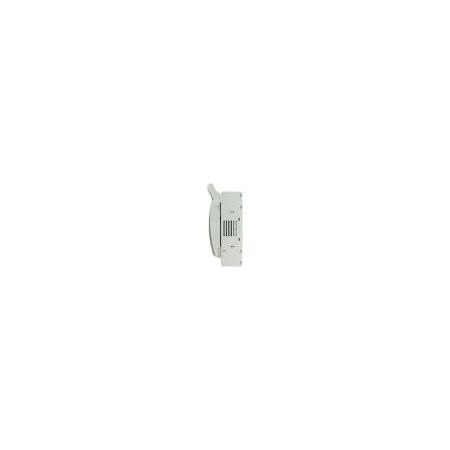

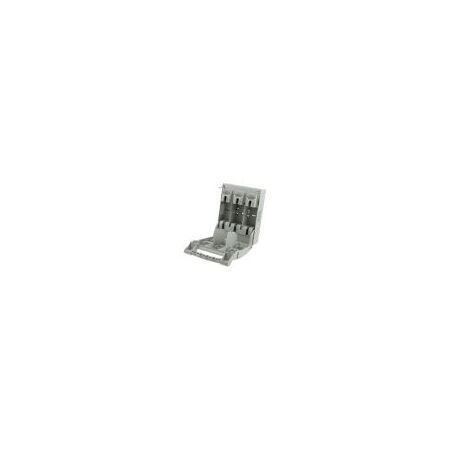

Low Voltage NH Fuse Base Size 1 | 250 A | AC 690 V | Three-Pole Mounting by Eaton
Low voltage NH fuse base size 1 rated for 250 A and AC 690 V—ideal for industrial electrical distribution systems. Built for reliable switch disconnection in electrical panels, with easy mounting using M screws for lug terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Low Voltage NH Fuse Base Size 1 | 250 A | AC 690 V | Three-Pole Mounting by Eaton
Brand: Eaton
SKU: EBH1O3TM1
Alternatively Known As: NH Fuse Base Size 1, Low Voltage Fuse Holder, Switch Disconnector Fuse Base, Eaton NH Fuse Holder
Technical Specifications
- Amperage Rating: 250 A
- Voltage Rating: AC 690 V
- Number of Poles: Three-pole
- Mounting Method: 60 mm busbar mounting, 100 mm busbar mounting, Mounting plate
- Connection Type: Screws for lug terminals
- Certifications: IEC/EN 60947-1, IEC 60947-3
- Compliance: CE
- Dimensions (H x L x W): 130mm x 270mm x 185mm
- Weight: 2.2 kg
Key Features
- Low voltage NH fuse base for size 1 fuses
- Rated for 250 A and AC 690 V
- Three-pole switch disconnector
- Plate mounting with M screws
- Suitable for connection of conductors with lug terminals using screws
- Complies with IEC/EN 60947-1 and IEC 60947-3 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Industrial electrical distribution systems
- Low voltage power protection
- Switch disconnection in electrical panels
- Connection of conductors with lug terminals in commercial and industrial settings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety and reliability, reducing risk of electrical faults and fires
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard Eaton warranty applies; typically 1 year against manufacturing defects.
Available Now
The Eaton Bussmann Series Low Voltage NH Fuse Base Size 1 with Mount Plate is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
