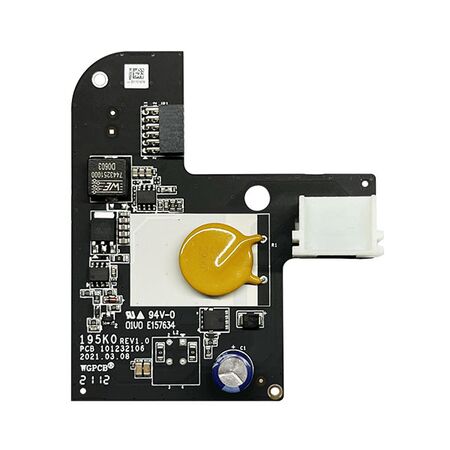

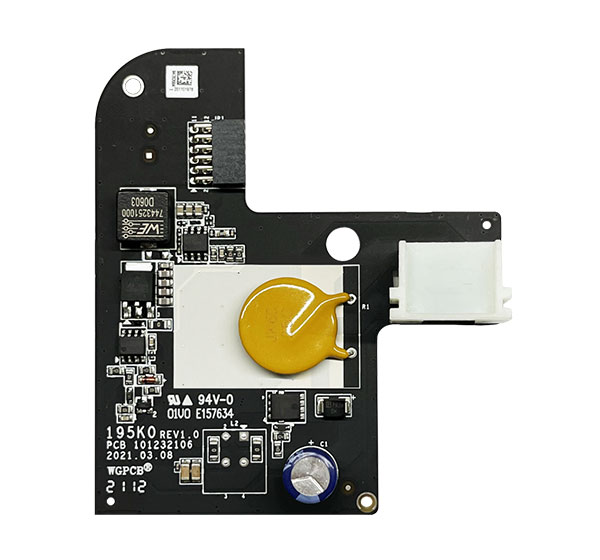

Low Voltage Power Board to Suit 114-250 Hikvision

BRAND: Ness
SKU: 104-237
$39.50 List price: $52.70
+ −
30 Days Return Electricians Unlock Trade Access
Hikvision low voltage power board is made to Suit the 114-250. Ideal for alarm systems.

Alternatively Known As: Hikvision DS-PM1-D, AX PRO 12 V PSU Module, Low-Voltage Power Conversion Board

Technical Specifications
  • Compatibility: Hikvision AX PRO alarm panels, including catalogue reference 114-250
  • Input Voltage: 8–24 VDC
  • Input Current: Up to 2 A
  • Output Voltage: 5.5 VDC
  • Output Current: Up to 2 A
  • Operating Temperature: -10°C to +55°C
  • Operating Humidity: 10–90% RH, non-condensing
  • Construction: Compact electronic power conversion board
  • Colour: Black
  • Dimensions (H x L x W): 90mm x 80mm x 15mm
  • Weight: 0.1 kg
Key Features
  • Converts an 8–24 VDC supply to regulated 5.5 VDC output
  • Supports up to 2 A input and output current
  • Designed for Hikvision AX PRO alarm control panels
  • Suitable for installations using battery-backed, portable or other low-voltage DC sources
  • Compact board format for installation inside the compatible alarm panel
Professional Installation Requirements
  • Installation should be performed by a suitably qualified security or electrical technician. Isolate all mains and backup power before opening the alarm panel, and install the board in accordance with the Hikvision service instructions and applicable Australian wiring requirements.
Applications
  • Hikvision AX PRO alarm systems
  • Alarm panels operating from external 12 VDC or other 8–24 VDC sources
  • Battery-backed security installations
  • Temporary or mobile security systems
  • Low-voltage security systems using alternative or renewable power sources
Standards & Compliance
  • AS/NZS 3000: Installation requirements for extra-low-voltage wiring; applies to the completed system installation rather than confirming a specific product certification.
Environmental Benefits
  • Enables AX PRO alarm systems to operate from battery-backed or renewable low-voltage DC sources, potentially reducing reliance on mains power.
  • Low-power electronic conversion supports efficient operation of compatible security equipment.
  • Compact replacement-board format can extend the service life of an existing alarm panel and reduce electronic waste.
Warranty Information

Hikvision warranty is subject to the applicable distributor or contract terms. Retain the original purchase invoice and use an authorised Australian distributor for warranty support; unauthorised installation or modification may affect warranty eligibility.

Available Now

Available through Hikvision and authorised Australian security-system distributors.
