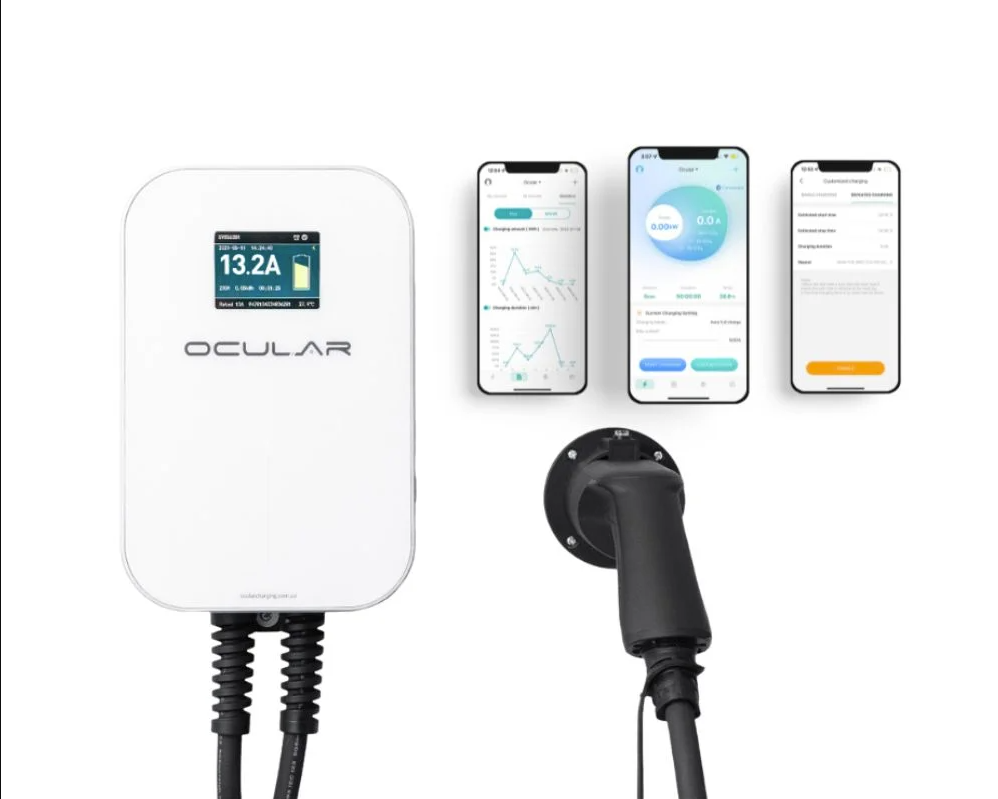

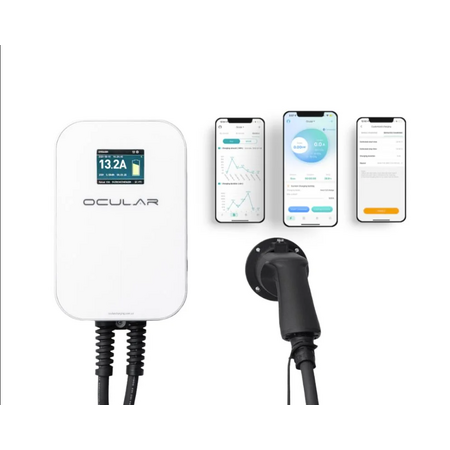

LTE Plus 7kW 1P EV Charging Station w/ 6m Type 2 Cable Ocular
Charge electric vehicles efficiently with this 7kW single-phase EV charging station featuring a tethered 6m Type 2 cable and mobile app connectivity. Designed for 230V AC input with wall-mounted installation and a durable enclosure suitable for outdoor use. Complies with AS/NZS 3000, AS/NZS 3112 and AS/NZS 5033 requirements shown on this page. Continue below for full specifications, installation guidance and application details.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: EV Charger 7kW, Single Phase EV Charger, Type 2 EV Charging Station, Ocular EV Charger
Technical Specifications
- Charging Power: 7kW
- Phase: Single Phase
- Cable Length: 6 meters
- Connector Type: Type 2
- Connectivity: Mobile App enabled
- Installation: Wall-mounted
- Input Voltage: 230V AC
- Dimensions (H x L x W): 400mm x 150mm x 300mm
- Weight: 12 kg
Key Features
- 7kW single phase charging power
- Includes 6 meter Type 2 charging cable
- App-enabled for remote monitoring and control
- Compact and durable design suitable for outdoor installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential EV charging
- Commercial EV charging stations
- Workplace EV charging solutions
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 5033 – Installation of Photovoltaic (Solar) Systems
Environmental Benefits
- Supports electric vehicle adoption reducing carbon emissions
- Energy-efficient charging reduces electricity waste
Warranty Information
3 years warranty covering manufacturing defects and performance issues.
Available Now
The Ocular LTE Plus 7kW Single Phase EV Charging Station with 6m Type 2 Cable is available for immediate purchase, ideal for residential and commercial electric vehicle charging applications.
FAQ
Q: What charging cable is supplied with this EV charging station?
A: The charger includes a tethered 6 metre Type 2 charging cable for convenient everyday charging.
Q: Where is this EV charging station suitable for use?
A: It is suitable for residential EV charging, commercial EV charging stations and workplace EV charging solutions when installed by a licensed electrician.
Pair this charging station with an EV charging cable holder to keep the Type 2 cable neatly stored after charging.
Install an EV charging station pedestal where a freestanding mounting option is preferred over wall installation.
Add an EV load management system for 6 charge points to coordinate charging across multiple EV installations.
Read this EV charger cable Type 2 guide to better understand connector compatibility and charging cable selection.
