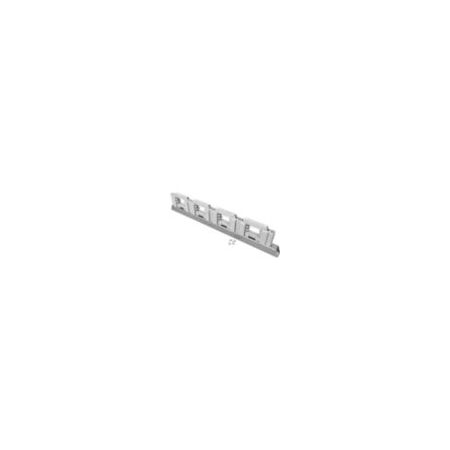

LV Switchgear Busbar Support XBSB164 | 1600A Current Rating | Four-Pole Configuration | 180mm Busbar Distance by Eaton
The LV Switchgear Busbar Support XBSB164 supports a maximum current of 1600A with a four-pole configuration and a busbar distance of 180mm—ideal for low voltage electrical distribution systems. Built for industrial and commercial applications, it ensures compliance with RoHS standards for safer installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LV Switchgear Busbar Support XBSB164 | 1600A Current Rating | Four-Pole Configuration | 180mm Busbar Distance by Eaton
Brand: Eaton
SKU: Y7-283865
Alternatively Known As: LV Switchgear Busbar Support, Main Busbar Back Support, Eaton xEnergy Busbar Support
Technical Specifications
- Current rating - max: 1600 A
- Number of poles: Four-pole
- Busbar distance: 180 mm
- Product dimensions (LxWxH): 820 mm x 145 mm x 45 mm
- Product weight: 3.68 kg
- RoHS conformant
- Dimensions (H x L x W): 45mm x 820mm x 145mm
- Weight: 3.68 kg
Key Features
- Supports main busbar back up to 1600A
- Four-pole configuration
- Busbar distance of 180 mm
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with low voltage switchgear systems to ensure compliance with safety standards.
Applications
- Low voltage electrical distribution systems
- Industrial and commercial electrical switchgear installations
- Busbar support and main busbar back applications up to 1600A
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in electrical components
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton xEnergy Main LV switchgear busbar support XBSB164 is available for immediate purchase, ideal for industrial and commercial low voltage electrical distribution applications.
