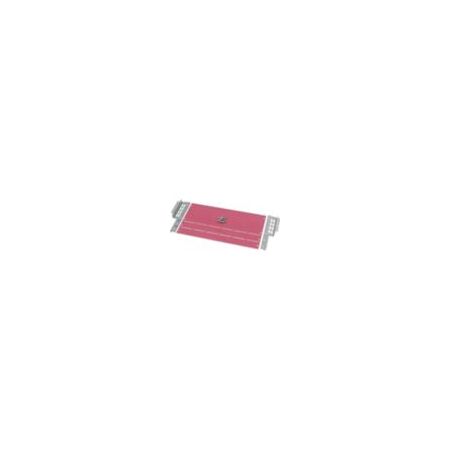

LV Switchgear Partition | Horizontal Orientation | Modular Spacing 12.5mm | RoHS Compliant by Eaton
This LV switchgear partition is designed for horizontal orientation with a modular spacing of 12.5mm, making it ideal for internal separation in low voltage switchgear systems. Built for electrical distribution and control panels, it ensures compliance with safety standards and is RoHS compliant for reduced hazardous substances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LV Switchgear Partition | Horizontal Orientation | Modular Spacing 12.5mm | RoHS Compliant by Eaton
Brand: Eaton
SKU: Y7-166225
Alternatively Known As: LV Switchgear Partition, xEnergy LV Switchgear Separator, Eaton LV Panel Partition
Technical Specifications
- Product Name: Eaton xEnergy Main LV switchgear
- Catalog Number: 166225
- EAN: 4015081627523
- Product Length/Depth: 510 mm
- Product Height: 40 mm
- Product Width: 856 mm
- Product Weight: 2.2 kg
- Construction type: Individual part
- Surface finishing: Other
- Color: Other
- Modular spacing: 12.5 mm
- Number of height units: 0
- Suitable for enclosure building length/depth: 800 mm
- Suitable for enclosure building width: 1000 mm
- Material: Other
- Suitable for: Internal separation form 2a, 3a, 4a, 3b, 4b, 2b
- Dimensions (H x L x W): 40mm x 510mm x 856mm
- Weight: 2.2 kg
Key Features
- Partition for LV switchgear with horizontal orientation
- Modular spacing of 12.5 mm
- Compatible with internal separation forms 2a, 3a, 4a, 3b, 4b, and 2b
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with LV switchgear systems to ensure compliance with safety standards.
Applications
- Internal separation in low voltage switchgear systems
- Suitable for enclosure building with width 1000 mm and depth 800 mm
- Used in electrical distribution and control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton xEnergy Main LV switchgear partition XPIX40BCB-H-1004 is available now for immediate purchase. Ideal for use in electrical distribution and control panel assemblies.
