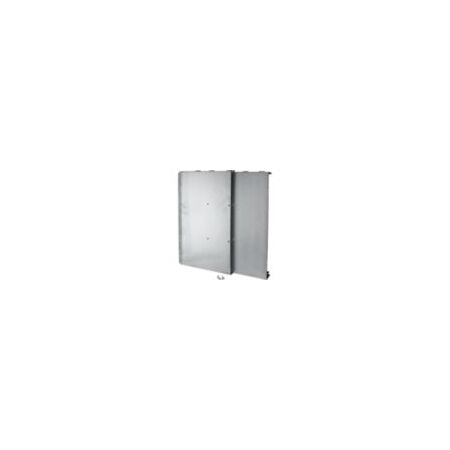

LV Switchgear Partition | Stainless Steel | Assembly Kit | Modular Spacing 12.5mm | Eaton
Eaton's LV switchgear partition is designed for internal separation in low voltage switchgear assemblies, featuring a durable stainless steel construction and modular spacing of 12.5mm. Ideal for industrial and commercial electrical installations, it ensures compliance with safety standards and promotes long product life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: LV Switchgear Partition | Stainless Steel | Assembly Kit | Modular Spacing 12.5mm | Eaton
Brand: Eaton
SKU: Y7-110266
Alternatively Known As: LV Switchgear Partition, xEnergy LV Switchgear Panel, Eaton LV Switchgear Separator
Technical Specifications
- Product Name: Eaton xEnergy Main LV switchgear
- Catalog Number: 110266
- EAN: 4015081098064
- Product Length/Depth: 1150 mm
- Product Height: 30 mm
- Product Width: 525 mm
- Product Weight: 9.5 kg
- Compliances: RoHS conform
- Construction type: Assembly kit
- Surface finishing: Other
- Color: Stainless steel
- Modular spacing: 12.5 mm
- Number of height units: 0
- RAL-number: 0
- Suitable for enclosure building length/depth: 30 mm
- Suitable for enclosure building width: 800 mm
- Material: Stainless steel
- Suitable for: Internal separation form 3b, 4a, 2a, 3a, 4b, 2b
- Dimensions (H x L x W): 30mm x 1150mm x 525mm
- Weight: 9.5 kg
Key Features
- Assembly kit construction type
- Made from stainless steel with other surface finishing
- Modular spacing of 12.5 mm
- Suitable for internal separation forms 2a, 2b, 3a, 3b, 4a, and 4b
- Designed for enclosure building width of 800 mm and depth of 30 mm
Professional Installation Requirements
- Installation should be performed by a qualified electrician or electrical engineer experienced with LV switchgear systems to ensure compliance with safety standards.
Applications
- Electrical distribution systems requiring internal separation
- Low voltage switchgear assemblies
- Industrial and commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Durable stainless steel construction promotes long product life and recyclability
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton xEnergy Main LV switchgear partition XPFCB08/10 is available for immediate purchase, ideal for use in industrial and commercial low voltage electrical switchgear assemblies.
