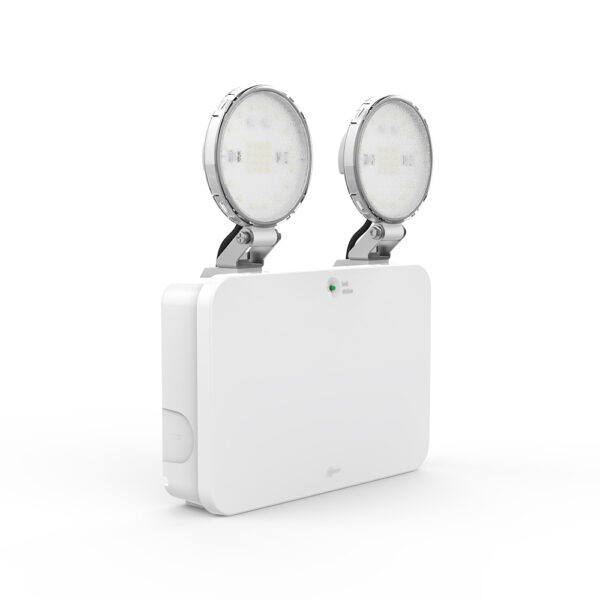

Lynk Duo Advanced Emergency Weatherproof Luminaire | IP65 Rated | IK10 Impact Resistant | Adjustable Fitting | by Ektor
The Lynk Duo Advanced Emergency Weatherproof Luminaire is designed for reliable emergency lighting in commercial and industrial settings. With an IP65 rating and IK10 impact resistance, this luminaire ensures durability in challenging environments. Featuring adjustable fittings for directional lighting and a non-maintained emergency mode with a 90-minute duration, it’s perfect for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Weatherproof Luminaire, Wireless Emergency Light, Adjustable Emergency Exit Light, IP65 Emergency Light
Technical Specifications
- IP Rating: IP65
- IK Rating: IK10
- Body and Diffuser Material: Polycarbonate
- Installation Type: Surface mount
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 2.5 W
- Standby Power: 1 W
- Driver Types: DALI DT1 Emergency, Wireless IEC62386-104 with DT1
- Wiring Type: Re-wireable terminal block (2 or 4 pin depending on model)
- Emergency Mode: Non-Maintained
- Emergency Output Power: 2500 mW
- Emergency Duration: 90 minutes
- Emergency Lumen Output: 350 lm
- Emergency Control: DALI Monitored and Wireless test and monitoring compliant
- Operating Temperature Range: 0 to 40 °C
- Product Design Life: 8 years
- Dimensions (H x L x W): 100mm x 150mm x 250mm
- Weight: 1.2 kg
Key Features
- IP65 rated weatherproof and IK10 impact resistant polycarbonate body and diffuser
- Adjustable fitting for directional lighting
- Non-maintained emergency mode with 90 minutes duration
- Emergency lumen output of 350 lumens
- Wireless and DALI DT1 emergency driver options with monitoring and testing compliance
- Standby power consumption of 1W
- Operating temperature range from 0 to 40 °C
- Product design life of 8 years
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical and safety standards.
Applications
- Commercial and industrial emergency lighting
- Outdoor and indoor surface mount emergency lighting
- Areas requiring weatherproof and impact-resistant emergency luminaires
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 2.5W maximum wattage and 1W standby power reduces energy use.
- Long product design life of 8 years minimizes waste and replacement frequency.
Warranty Information
6 years return to base commercial use warranty.
Available Now
The Lynk Duo Advanced Emergency Weatherproof Luminaire with Wireless by Ektor is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
