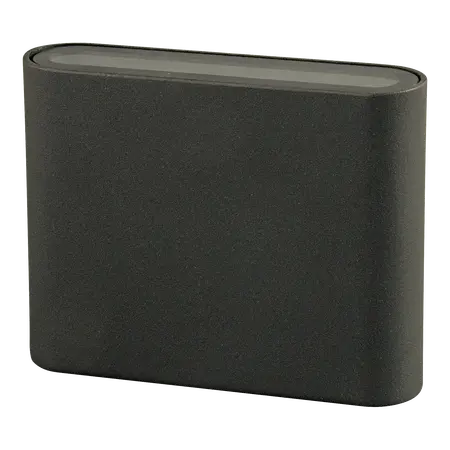

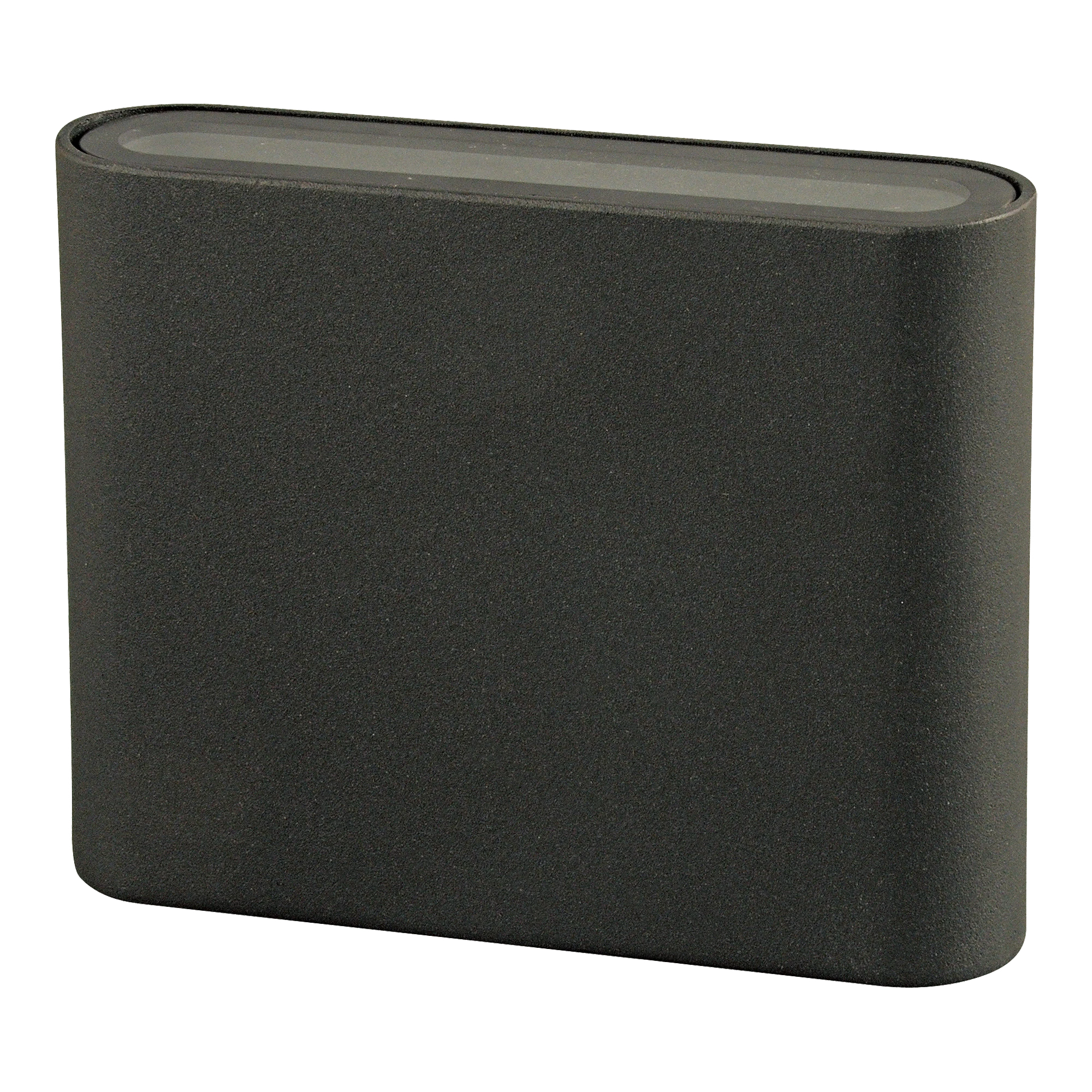

Lynx Exterior Wall Light 115mm 2x3W 12/24V IP54 Black Domus
Domus Lynx exterior wall light, 115mm, 2x3W, 12/24V, IP54, tri-colour, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Lynx SML-2WB-LV, Lynx 2x3W Tri-Colour LED Wall Light, Domus Lynx Small Up/Down Wall Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 2 x 3W
- Light Source: Integrated SMD LED
- Light Direction: Up and down
- Colour Temperature: 3000K, 4000K or 5000K switchable
- Luminous Output: 408 lm at 3000K, 467 lm at 4000K, 490 lm at 5000K
- Colour Rendering Index: CRI ≥90
- Beam Angle: 120°
- Ingress Protection: IP54
- Dimming: Yes, with suitable dimmer and driver
- LED Lifespan: 50,000 hours
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Body Material: Cast aluminium
- Finish: Black polyester powder-coated aluminium with chromate treatment
- Dimensions (H x L x W): 90mm x 115mm x 28mm
- Weight: 0.4 kg
Key Features
- Compact 115mm surface-mounted wall or step light
- Upward and downward illumination
- Tri-colour switching between warm white, neutral white and white
- High colour rendering with CRI ≥90
- IP54 protection against dust ingress and water splashes
- Suitable for low-voltage outdoor applications including pathways, steps, planter boxes and front walls
- Integrated LED light source with 50,000-hour rated lifespan
- Slimline cast-aluminium construction with TPS cable gland
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with the manufacturer's installation instructions. Use a compatible 12V or 24V DC constant-voltage LED driver, wire fittings in parallel, and ensure the driver and low-voltage wiring are suitable for the installation environment.
Applications
- External residential wall lighting
- Pathway and step lighting
- Planter box and garden feature lighting
- Front wall and entry lighting
- Covered outdoor areas requiring low-voltage LED lighting
Standards & Compliance
- AS/NZS 60598.1: Applicable general requirements and tests for luminaires
- AS/NZS 60598.2.1: Applicable requirements for fixed general-purpose luminaires
- AS/NZS 60529: Applicable enclosure protection classification for the IP54 rating
- AS/NZS 3000: Applicable electrical installation requirements for connection and installation
Environmental Benefits
- Integrated LED technology provides lower energy consumption than equivalent halogen lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Aluminium body and trim are recyclable at end of service life
- Low-voltage operation supports use with efficient 12V or 24V DC lighting systems
Warranty Information
Domus Lighting provides a three-year replacement warranty for exterior LED wall lights in residential applications and a 12-month replacement warranty for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
