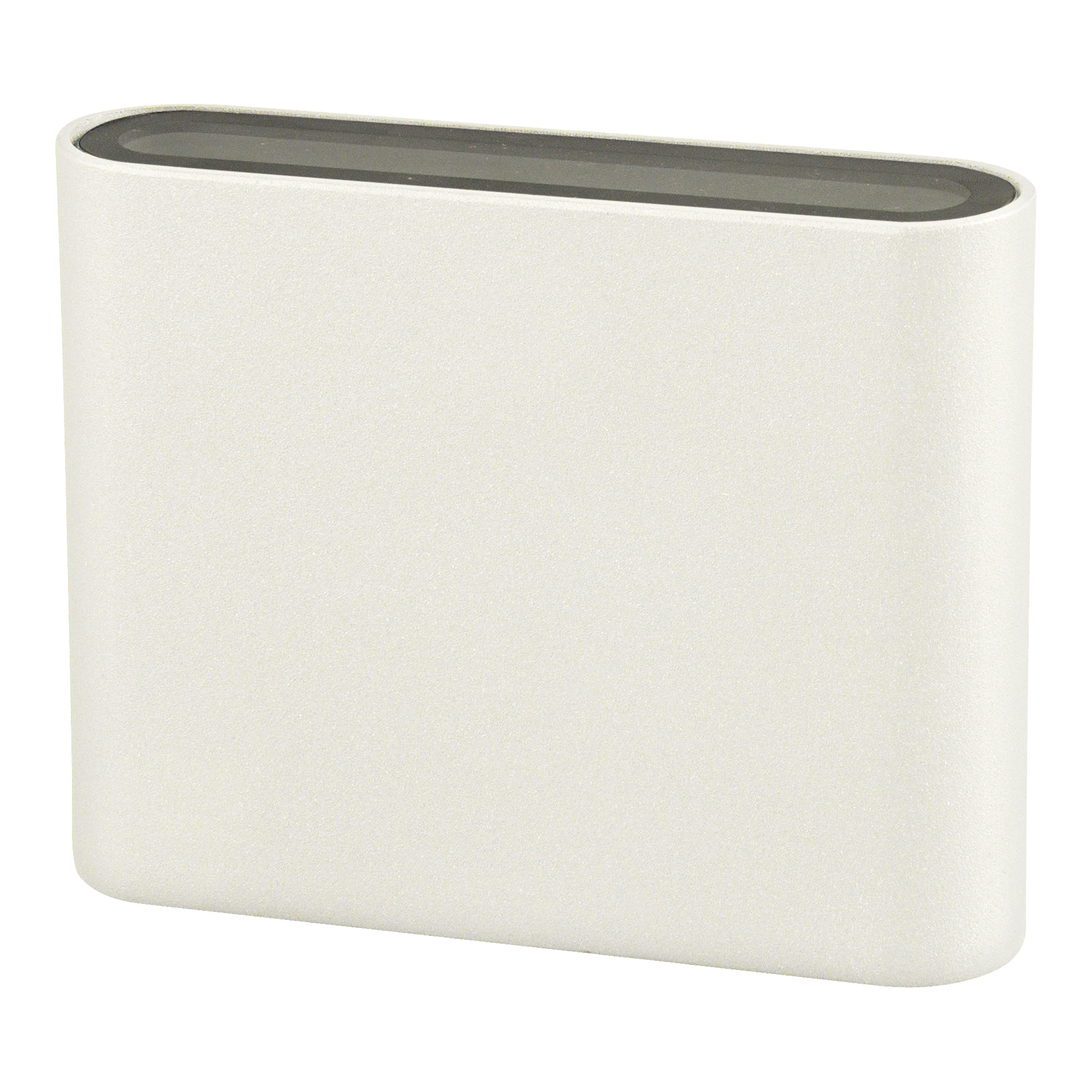

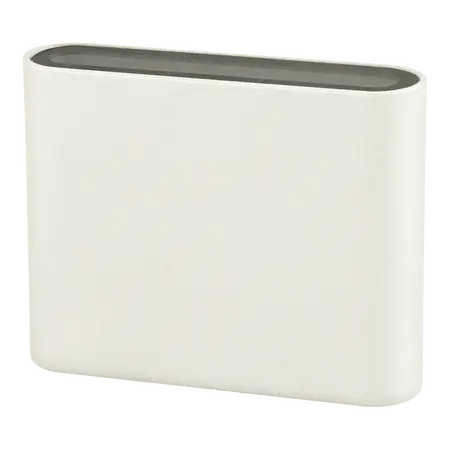

Lynx Exterior Wall Light 115mm 2x3W 12/24V IP54 White Domus
Domus Lynx exterior wall light, 115mm, 2x3W, 12/24V, IP54, tri-colour, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Lynx SML-2WB-LV, Domus Lynx Exterior Wall Light, 12V LED Wall Light, 24V LED Step Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 2 x 3W
- Light Output: 408 lm at 3000K, 467 lm at 4000K, 490 lm at 5000K
- Colour Temperature: 3000K, 4000K or 5000K switchable
- Colour Rendering Index: CRI ≥90
- Beam Angle: 120°
- Ingress Protection: IP54
- Dimming: Yes, with suitable dimmer
- LED Lifespan: 50,000 hours
- Light Direction: Up/down illumination
- Driver Requirement: 12/24V DC constant-voltage LED driver, wired in parallel
- Construction: Slimline cast-aluminium body with powder-coated finish
- Finish: White
- Dimensions (H x L x W): 90mm x 115mm x 28mm
- Weight: 0.45 kg
Key Features
- Tri-colour selectable LED output at 3000K, 4000K and 5000K
- Upward and downward illumination from a compact surface-mounted fitting
- IP54-rated construction for protected outdoor applications
- Low-voltage 12/24V DC operation
- High colour rendering with CRI ≥90
- Dimmable when used with a compatible dimmer and driver
- Slimline 28mm-deep design suitable for walls, steps and pathways
- TPS cable gland for simplified cable entry
- Integrated SMD LED light source
Professional Installation Requirements
- Installation should be completed by a licensed electrician. A compatible 12/24V DC constant-voltage LED driver is required and must be installed in accordance with the manufacturer's instructions and applicable Australian electrical installation requirements.
Applications
- Exterior wall lighting
- Low-level pathway lighting
- Outdoor steps and stairways
- Planter boxes and garden walls
- Front wall and entryway lighting
- Residential and light commercial outdoor areas
Standards & Compliance
- Applicable luminaire safety framework: AS/NZS 60598.1
- Electrical installation should comply with AS/NZS 3000 Wiring Rules
Environmental Benefits
- Long 50,000-hour LED lifespan can reduce replacement frequency and product waste
- LED technology provides efficient low-voltage illumination compared with conventional lamps
- Cast aluminium construction is recyclable at end of service life
- Low-voltage operation is suitable for integration with efficient centralised or renewable-energy lighting systems
Warranty Information
Three Year Replacement Warranty. Warranty claims require proof of purchase, installation by a licensed electrician and installation in accordance with Domus Lighting guidelines. Warranty coverage is subject to the applicable Domus Lighting warranty statement and Australian Consumer Law.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
