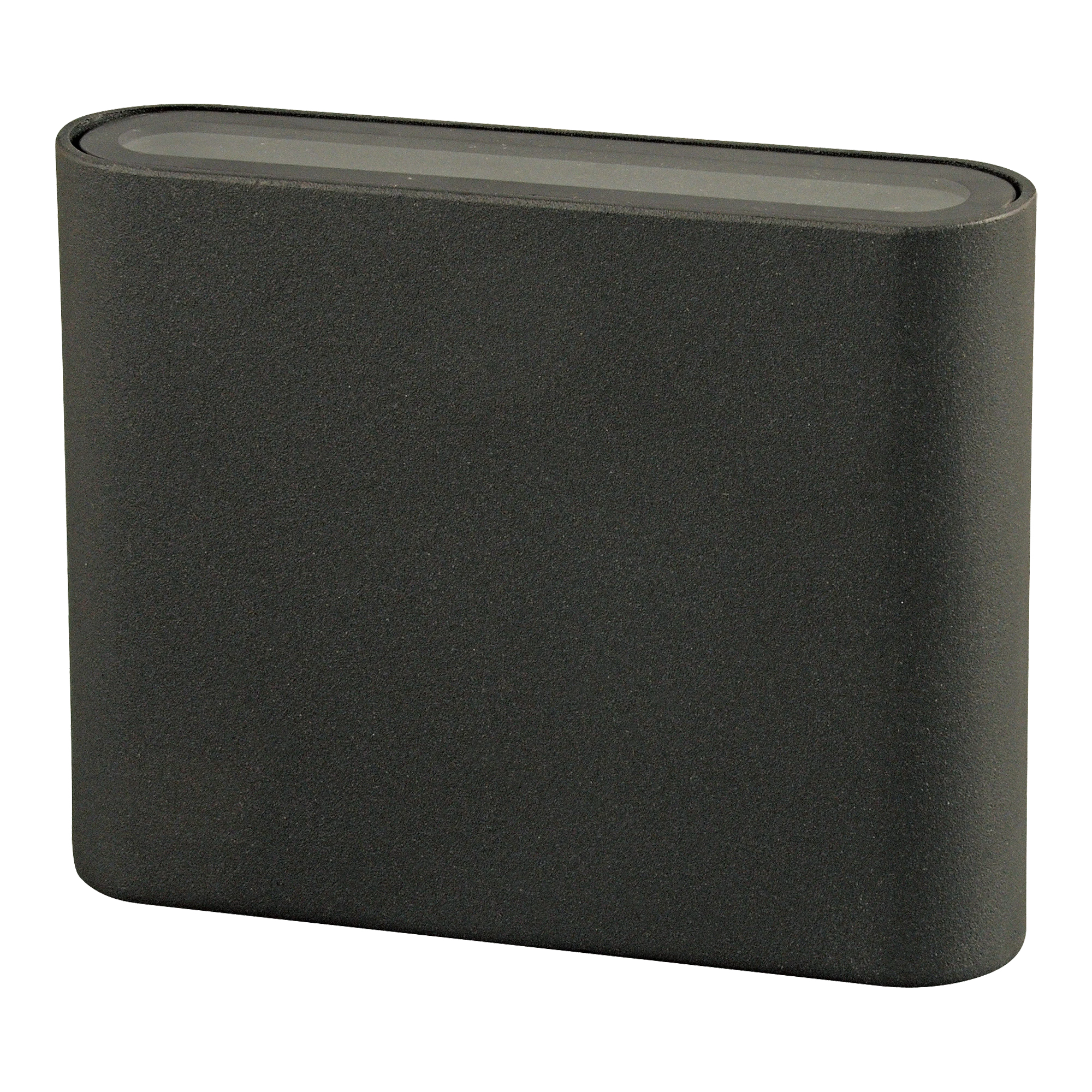

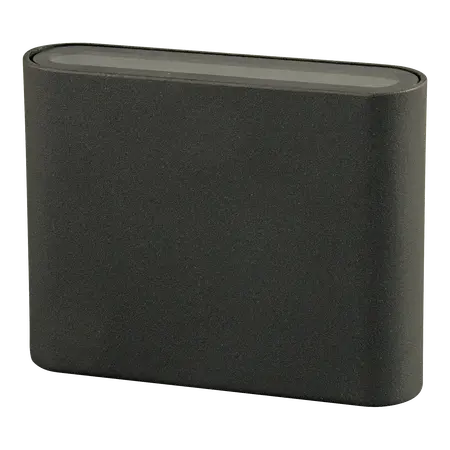

Lynx Exterior Wall Light 115mm 3W 12/24V IP54 Black Domus
Domus Lynx exterior wall light, 115mm, 3W, 12/24V, IP54, tri-colour, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LYNX-SML-1WB-LV, Lynx Small LED Wall Light, Lynx Exterior Step Light, Low-Voltage LED Wall Light
Technical Specifications
- Model: LYNX-SML-1WB-LV
- Power: 5W integrated SMD LED
- Input Voltage: 12-24V DC
- Colour Temperature: 3000K / 4000K / 5000K selectable
- Lumen Output: 318lm at 3000K, 363lm at 4000K, 378lm at 5000K
- Colour Rendering: CRI ≥90
- Beam Angle: 120°
- Ingress Protection: IP54
- Dimming: Yes, with suitable dimmers
- LED Lifespan: 50,000 hours
- Construction: Cast aluminium body with powder-coated finish
- Light Direction: Downward
- Driver: Requires a compatible 12V or 24V DC constant-voltage LED driver; wire in parallel
- Dimensions (H x L x W): 76mm x 115mm x 28mm
- Weight: 0.35 kg
Key Features
- Slimline surface-mounted design for walls, steps and pathways
- Tri-colour selectable operation between warm white, neutral white and white
- IP54-rated enclosure for suitable outdoor applications
- Cast aluminium construction with weather-resistant powder-coated black finish
- Integrated TPS cable gland for installation
- High colour rendering with CRI ≥90
- Dimmable when used with a compatible low-voltage dimmer and driver
- Manufacturer-listed three-year replacement warranty
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver and install in accordance with the manufacturer's instructions and AS/NZS 3000. The driver is not included.
Applications
- Exterior wall lighting
- Pathway and step lighting
- Planter box lighting
- Retaining wall lighting
- Landscape lighting
- Low-voltage residential and commercial outdoor lighting
Standards & Compliance
- AS/NZS 3000:2018 – Electrical installations, for low-voltage lighting installation requirements
- AS/NZS 60598.1 – Luminaires, general requirements and tests, as the applicable luminaire safety standard
Environmental Benefits
- Energy-efficient integrated LED technology uses 5W for outdoor illumination
- Long rated LED lifespan of up to 50,000 hours can reduce replacement frequency and waste
- Cast aluminium body is recyclable at end of service life
- Low-voltage operation is suitable for efficient landscape-lighting systems when paired with an appropriate LED driver
Warranty Information
Three-year replacement warranty for residential exterior LED wall lights. Commercial applications are covered by a 12-month replacement warranty. Warranty eligibility requires installation by a licensed electrician in accordance with Domus installation instructions; Australian Consumer Law rights apply.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
