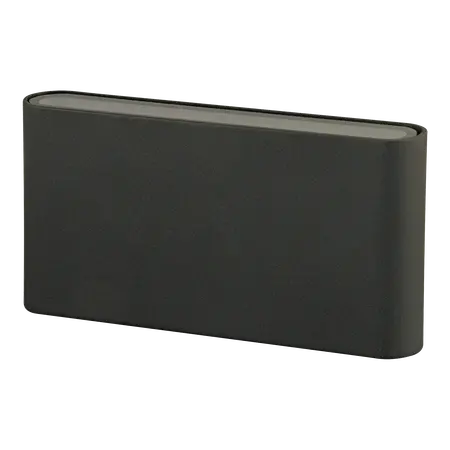

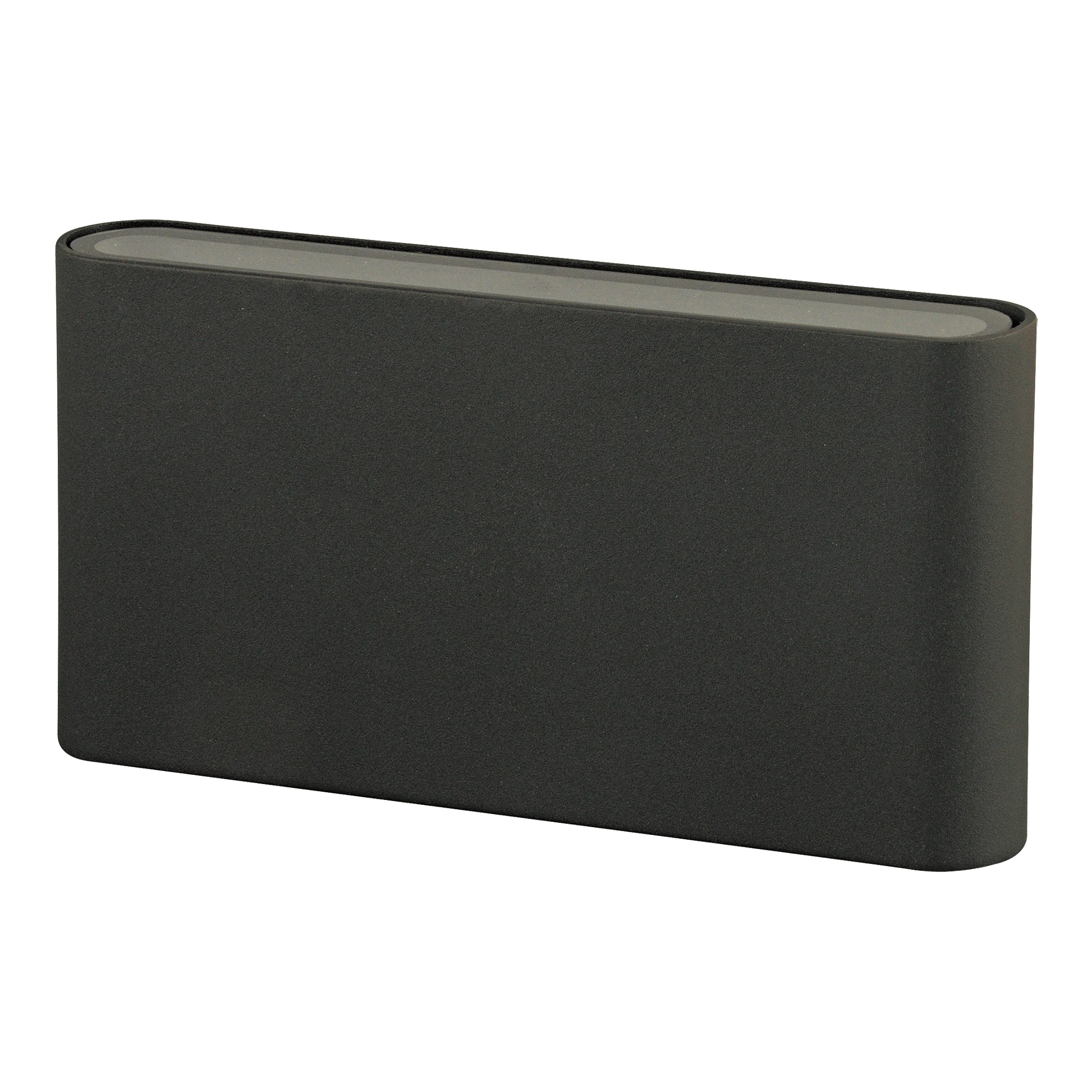

Lynx Exterior Wall Light 175mm 2x5W 12/24V IP54 Black Domus
Domus Lynx exterior wall light, 175mm, 2x5W, 12/24V, IP54, tri-colour, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Lynx MED 2WB-LV, Lynx Medium Up/Down Wall Light, Lynx LED Exterior Wall Light, Tri-Colour LED Step Light
Technical Specifications
- Model: LYNX-MED-2WB-LV
- SKU: 10571
- Input Voltage: 12/24V DC
- Power: 2 x 5W, 10W total
- Light Output: 628lm at 3000K; 702lm at 4000K; 739lm at 5000K
- Colour Temperature: Switchable 3000K, 4000K or 5000K
- Colour Rendering: CRI ≥90
- Beam Angle: 120°
- Ingress Protection: IP54
- Dimming: Yes, with suitable dimmers
- LED Life: 50,000 hours
- Lamp Type: Integrated SMD LED
- Light Direction: Up and down
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Body Material: Cast aluminium
- Finish: Black polyester powder coat over chromate-treated aluminium
- Cable Entry: TPS cable gland
- Dimensions (H x L x W): 90mm x 175mm x 28mm
- Weight: 0.7 kg
Key Features
- Slimline surface-mounted design for exterior walls, pathways and steps
- Upward and downward illumination
- Switchable tri-colour LED output
- Low-voltage 12/24V DC operation
- IP54-rated construction for protected outdoor applications
- High colour rendering with CRI ≥90
- Integrated LED technology with an expected 50,000-hour lifespan
- Black cast-aluminium body with durable powder-coated finish
Professional Installation Requirements
- Installation should be completed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver, wire the fittings in parallel, and install in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Exterior residential wall lighting
- Low-level pathway lighting
- Outdoor steps and stairways
- Planter boxes and garden structures
- Front wall and entry lighting
- Covered outdoor areas where recessed mounting is unsuitable
Standards & Compliance
- AS/NZS 60598.1 and AS/NZS 60598.2.1:2014 for general luminaire safety and fixed general-purpose luminaires
- AS/NZS 3000 Wiring Rules for the associated electrical installation
Environmental Benefits
- LED technology provides efficient illumination compared with conventional light sources
- 50,000-hour rated LED life can reduce replacement frequency and associated waste
- Cast aluminium construction is durable and recyclable at end of service life
- Low-voltage operation can support efficient outdoor lighting systems when paired with a suitable driver
Warranty Information
Three-year replacement warranty, subject to Domus Lighting warranty conditions. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
