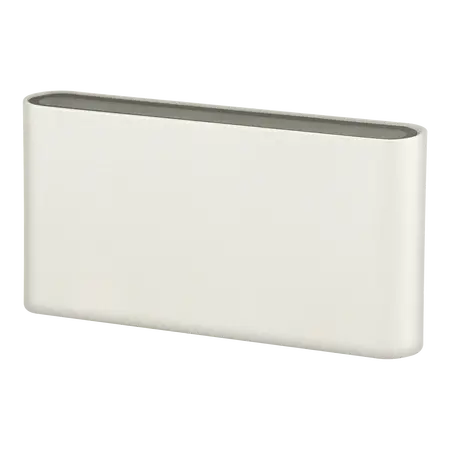

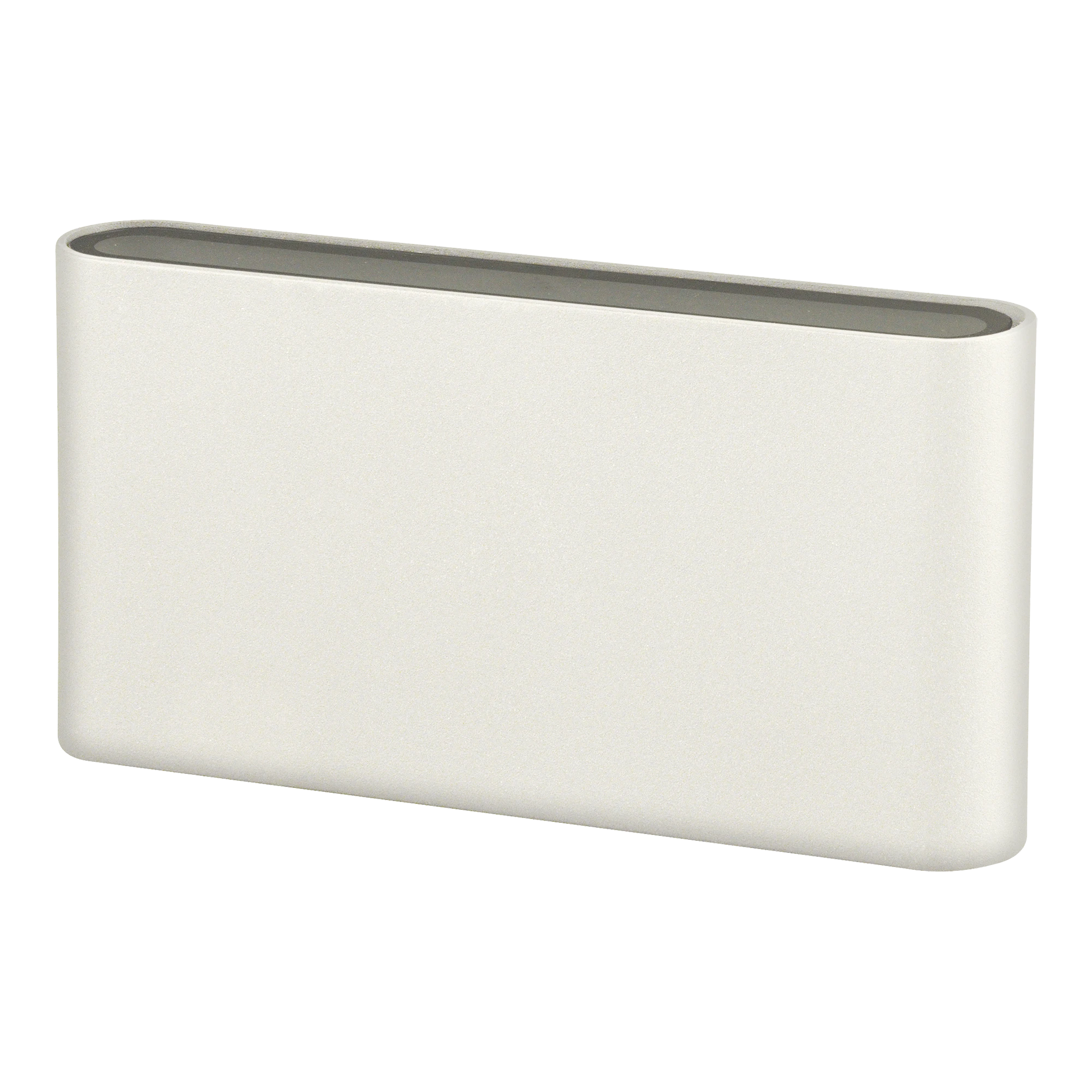

Lynx Exterior Wall Light 175mm 2x5W 12/24V IP54 White Domus
Domus Lynx exterior wall light, 175mm, 2x5W, 12/24V, IP54, tri-colour, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Lynx MED 2WB LV, Lynx Medium Low-Voltage Wall Light, Exterior LED Step Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 2 x 5W
- Luminous Output: 628lm at 3000K; 702lm at 4000K; 739lm at 5000K
- Colour Temperature: 3000K, 4000K or 5000K switchable
- Colour Rendering Index: CRI ≥90
- Beam Angle: 120°
- IP Rating: IP54
- Dimming: Yes, with suitable dimmers
- LED Type: Integrated SMD
- Lifespan: 50,000 hours
- Material: Cast aluminium body with polyester powder-coated finish
- Cable Entry: TPS cable gland
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Light Direction: Up/down illumination
- Dimensions (H x L x W): 90mm x 175mm x 28mm
- Weight: 0.7 kg
Key Features
- Slimline surface-mounted exterior wall light
- White cast-aluminium body with durable powder-coated finish
- Tri-colour selectable output for warm, neutral or cool white lighting
- Integrated 10W LED light source
- IP54 protection for suitable outdoor applications
- Suitable for pathways, steps, planter boxes and front wall installations
- Low-voltage design for installations using 12V or 24V DC wiring
- Requires a separate constant-voltage LED driver
Professional Installation Requirements
- Installation should be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000. A compatible 12V or 24V DC constant-voltage LED driver is required and must be selected and installed correctly.
Applications
- Exterior wall lighting
- Outdoor pathways and steps
- Low-level garden and planter-box lighting
- Front wall installations with low-voltage wiring
- Areas where recessed mounting is not suitable
Standards & Compliance
- AS/NZS 60598.1: Applicable general requirements and tests for luminaires
- AS/NZS 3000: Electrical installation and wiring requirements
Environmental Benefits
- Integrated LED technology provides lower energy consumption than comparable conventional light sources
- 50,000-hour rated lifespan can reduce replacement frequency and material waste
- Cast aluminium construction is recyclable at end of service life
- Low-voltage 12/24V DC operation is suitable for efficient low-voltage lighting systems
Warranty Information
Three-year replacement warranty for residential applications; Domus Lighting's current warranty statement lists a 12-month replacement warranty for commercial exterior LED wall lights. Warranty claims require installation by a licensed electrician and compliance with installation instructions.
Available Now
Available through Domus Lighting and authorised Australian electrical distributors.
