Trade Discount 25%

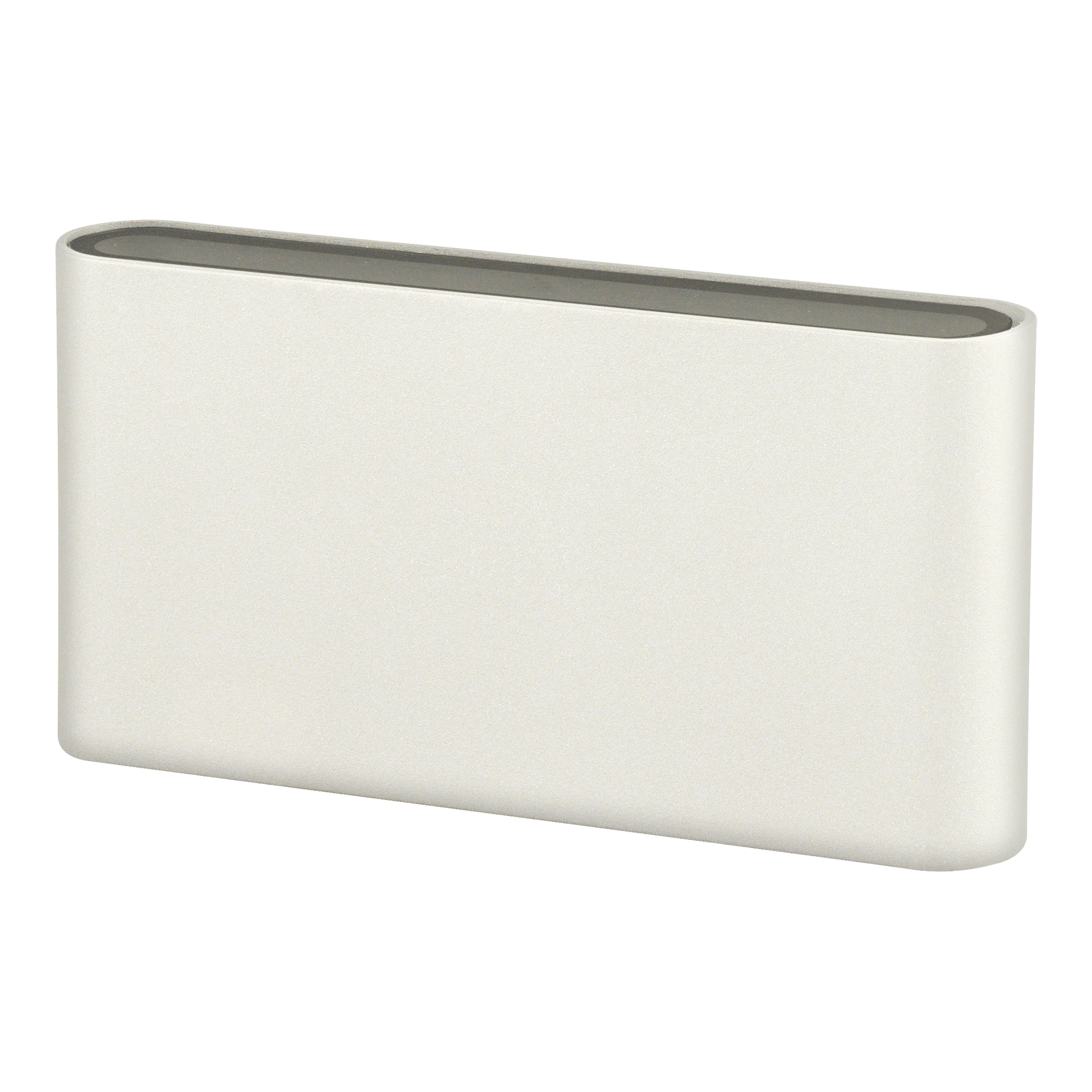

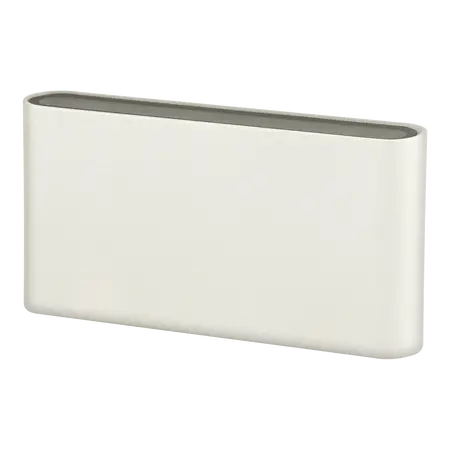

Lynx Exterior Wall Light 175mm 2x5W 240V IP54 White Domus
Domus Lynx exterior wall light, 175mm, 2x5W, 240V, IP54, tri-colour, white.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Lynx MED 2WB 240V, Lynx Medium Up/Down Wall Light, Exterior LED Step Light, Outdoor LED Wall Light
Technical Specifications
- Input Voltage: 240V AC
- Power: 2 x 5W
- Light Source: Inbuilt SMD LED
- Colour Temperature: 3000K, 4000K or 5000K switchable
- Luminous Flux: 628lm at 3000K; 702lm at 4000K; 739lm at 5000K
- Colour Rendering Index: CRI ≥90
- Beam Angle: 120°
- Ingress Protection: IP54
- Dimming: No
- LED Lifespan: 50,000 hours
- Light Direction: Up/down
- Body Material: Cast aluminium
- Finish: White polyester powder coat over chromate-treated aluminium
- Dimensions (H x L x W): 90mm x 175mm x 28mm
- Weight: 0.45 kg
Key Features
- Slimline rectangular design with curved edges
- Suitable for exterior wall and step-lighting applications
- Tri-colour switching between warm white, neutral white and white
- Upward and downward illumination
- TPS cable gland for installation
- IP54 protection against dust ingress and water splashing
- Energy-saving LED technology with long operating life
Professional Installation Requirements
- Installation and connection to 240V mains wiring must be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions.
Applications
- Exterior wall lighting
- Pathways and steps
- Entryways and front walls
- Residential outdoor areas
- Commercial exterior circulation areas
- Low-level architectural and landscape lighting
Standards & Compliance
- Applicable fixed-luminaire requirements: AS/NZS 60598.1
- Applicable fixed general-purpose luminaire requirements: AS/NZS 60598.2.1:2014, including applicable amendments
- Electrical installation should comply with AS/NZS 3000
Environmental Benefits
- Energy-efficient LED light source reduces power consumption compared with conventional lighting technologies
- 50,000-hour rated LED lifespan can reduce replacement frequency and material waste
- Cast aluminium body and trim are recyclable at end of product life
- Tri-colour selection supports appropriate lighting output without replacing the fitting
Warranty Information
Three-year replacement warranty for residential exterior LED wall lights; commercial applications are covered by a 12-month replacement warranty. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation requirements.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; live stock status should be confirmed with the supplying distributor.
