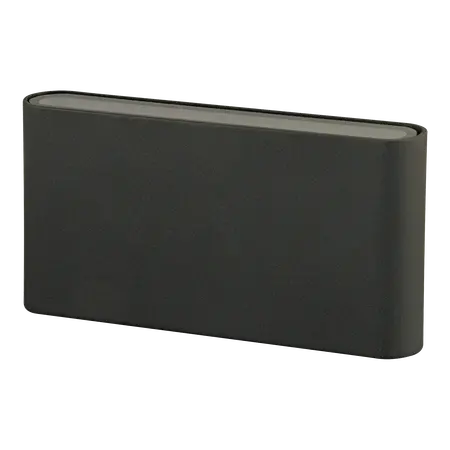

Lynx Exterior Wall Light 175mm 5W 12/24V IP54 Black Domus
Domus Lynx exterior wall light, 175mm, 5W, 12/24V, IP54, tri-colour, black. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Lynx MED 1WB LV, Lynx Medium Down Wall Light, LED Step Light, Exterior LED Wall Light
Technical Specifications
- Product Type: Surface-mounted exterior down wall light
- Input Voltage: 12-24V DC
- Power: 7W
- Colour Temperature: 3000K / 4000K / 5000K switchable
- Lumen Output: 464lm at 3000K, 495lm at 4000K, 516lm at 5000K
- Colour Rendering Index: CRI ≥90
- Beam Angle: 120°
- Dimming: Yes, with a suitable dimmer
- Ingress Protection: IP54
- LED Lifespan: 50,000 hours
- Material: Cast aluminium body with powder-coated finish
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Finish Colour: Black
- Dimensions (H x L x W): 76mm x 175mm x 28mm
- Weight: 0.35 kg
Key Features
- Slimline curved-edge design for surface-mounted wall or step lighting
- Tri-colour selectable between warm white, neutral white and white
- Suitable for external pathways, steps, planter boxes, retaining walls and landscape lighting
- IP54-rated construction for protected outdoor applications
- Cast aluminium body with weather-resistant powder-coated finish
- Integrated TPS cable gland
- Low-voltage 12/24V DC operation
- Dimmable with a compatible dimmer and driver
Professional Installation Requirements
- Installation should be completed by a licensed electrician. The fitting requires a compatible 12V or 24V DC constant-voltage LED driver, with the luminaires wired in parallel. The driver and associated electrical work must comply with applicable Australian wiring requirements.
Applications
- Exterior pathway lighting
- Step and stair lighting
- Planter box lighting
- Retaining wall lighting
- Landscape lighting
- Residential and commercial outdoor wall lighting
Standards & Compliance
- AS/NZS 60598.1: Luminaires, general requirements and tests
- AS/NZS 60598.2.1: Particular requirements for fixed general-purpose luminaires
- AS/NZS 3000: Electrical installations, where applicable to the driver and fixed wiring
Environmental Benefits
- Low 7W LED power consumption compared with higher-wattage conventional light sources
- 50,000-hour rated LED lifespan can reduce replacement frequency and associated waste
- Cast aluminium construction is recyclable at end of service life
- Low-voltage DC operation supports use with appropriately designed efficient lighting systems
Warranty Information
Three-year replacement warranty for residential exterior LED wall lights. Commercial applications receive a 12-month replacement warranty. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation guidelines; Australian Consumer Law rights also apply.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
