Trade Discount 25%

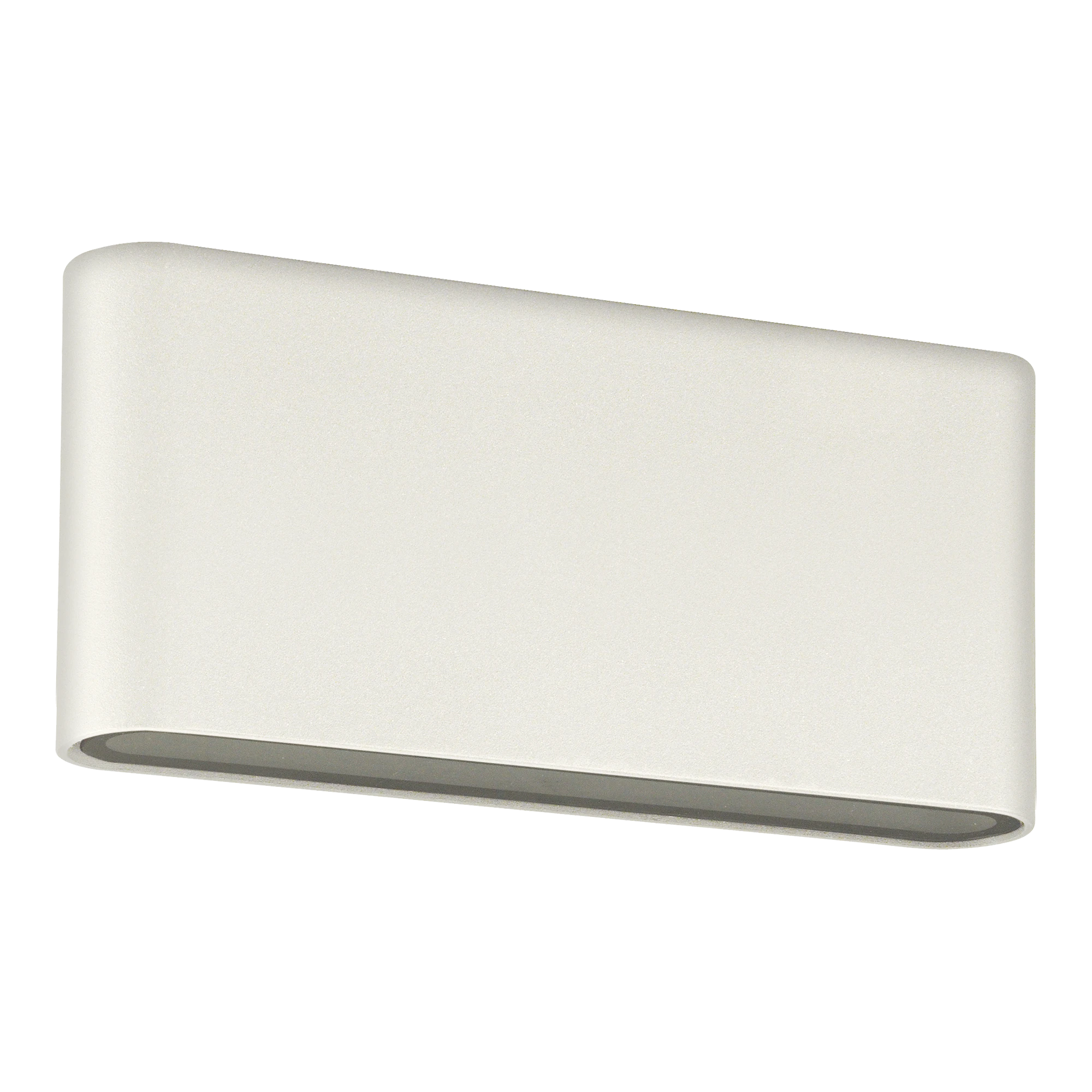

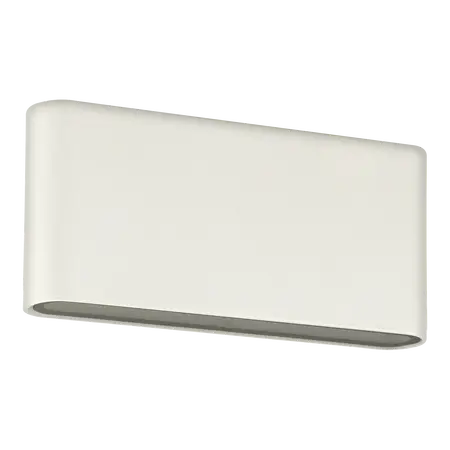

Lynx Exterior Wall Light 175mm 5W 12/24V IP54 White Domus
Domus Lynx exterior wall light, 175mm, 5W, 12/24V, IP54, tri-colour, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Lynx Medium Down Wall Light, Domus Lynx Exterior Wall Light, 12/24V LED Step Light, Low Voltage LED Wall Light
Technical Specifications
- Input Voltage: 12/24V DC
- Power: 7W
- IP Rating: IP54
- Colour Temperature: 3000K, 4000K or 5000K switchable
- Colour Rendering Index: CRI ≥90
- Beam Angle: 120°
- Dimming: Yes, with suitable dimmer
- LED Type: Integrated SMD LED
- Lifespan: 50,000 hours
- Driver Requirement: 12V or 24V DC constant-voltage LED driver
- Wiring: Connect luminaires in parallel
- Finish Colour: White
- Dimensions (H x L x W): 76mm x 175mm x 28mm
- Weight: 0.35 kg
Key Features
- Slimline cast-aluminium surface-mounted body
- Suitable for exterior wall, pathway and step lighting
- Tri-colour selectable operation from 3000K to 5000K
- IP54 protection against dust ingress and water splashing
- Integrated energy-saving LED light source
- TPS cable gland for installation
- Low-voltage 12/24V DC operation
- Suitable for dimming with compatible equipment
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a correctly rated 12V or 24V DC constant-voltage LED driver, wire fittings in parallel and install in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- External pathways and steps
- Low-level wall and step lighting
- Residential entrances and front walls
- Planter boxes and landscape lighting
- Outdoor commercial and hospitality areas
Standards & Compliance
- AS/NZS 60598.1:2025 – Luminaires, general requirements and tests
- AS/NZS 3000 – Electrical installations, for installation wiring and connection requirements
Environmental Benefits
- Integrated LED technology provides lower energy consumption than conventional halogen lighting
- 50,000-hour rated lifespan can reduce replacement frequency and product waste
- Cast aluminium body is recyclable at end of service life
- Low-voltage operation is suitable for efficient outdoor lighting systems
Warranty Information
Three-year replacement warranty, subject to Domus Lighting warranty conditions. Warranty coverage requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting retailers and electrical wholesalers.
