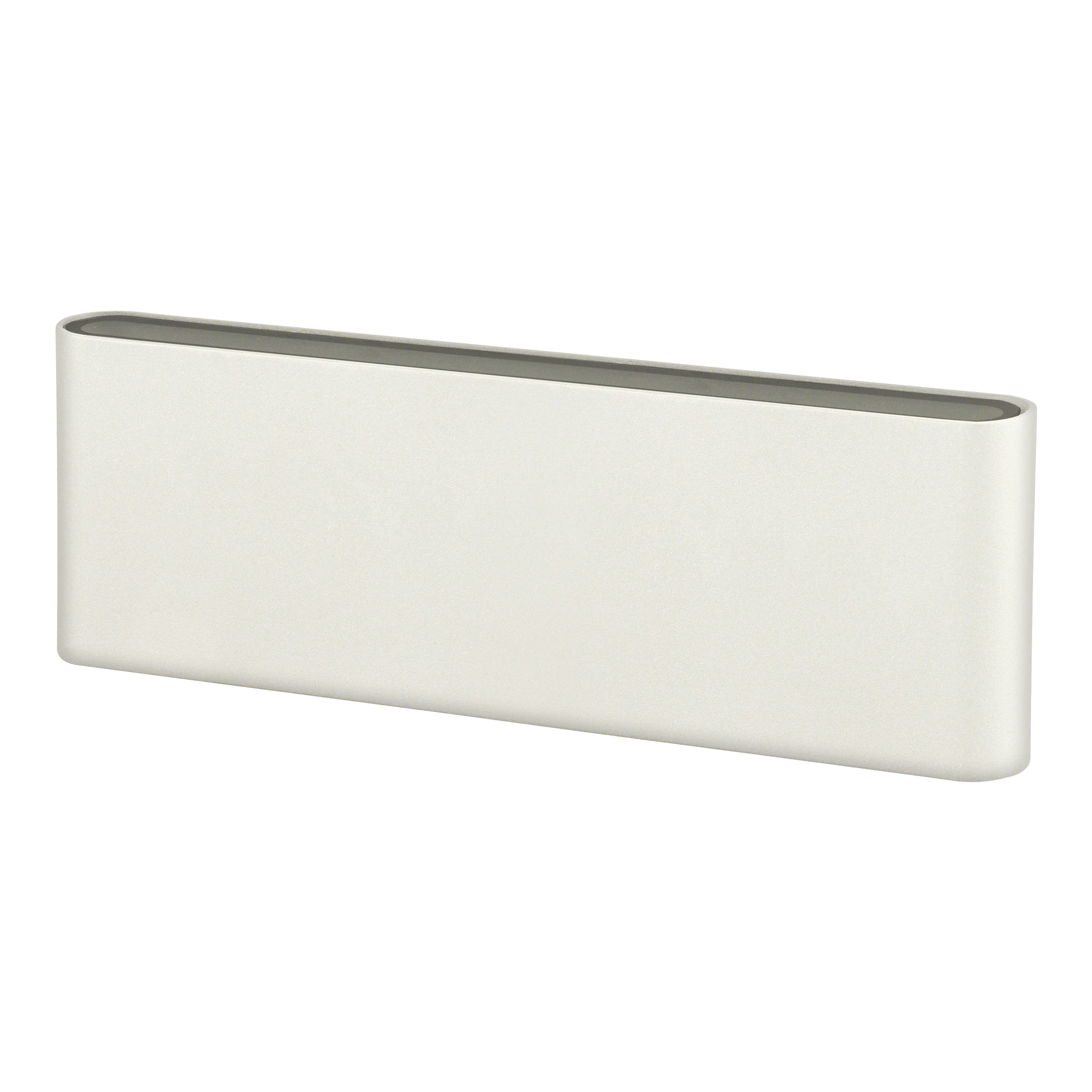

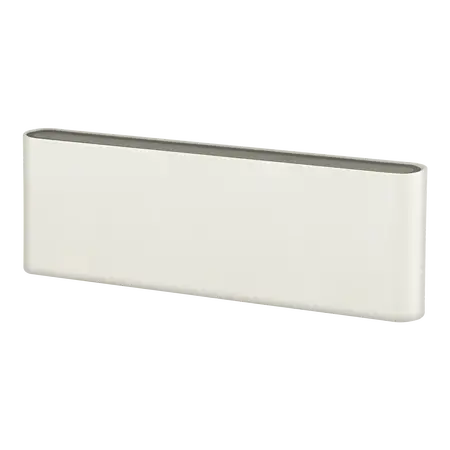

Lynx Exterior Wall Light 260mm 2x12W 12/24V IP54 White Domus
Domus Lynx exterior wall light, 260mm, 2x12W, 12/24V, IP54, tri-colour, white. Requires 12/24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LYNX-LRG-2WB-LV, Lynx Large LED Wall Light, Lynx Up/Down Wall Light, Exterior LED Step Light
Technical Specifications
- Model: LYNX-LRG-2WB-LV
- Variant: 10578
- Power: 2 x 12W, 24W total
- Input Voltage: 12/24V DC
- Light Source: Integrated SMD LED
- Colour Temperature: 3000K / 4000K / 5000K switchable
- Lumen Output: 1256lm at 3000K, 1408lm at 4000K, 1482lm at 5000K
- Colour Rendering Index: CRI ≥90
- Beam Angle: 120°
- Dimming: Yes, with suitable dimmer and driver
- Ingress Protection: IP54
- Light Direction: Up and down
- Lifespan: 50,000 hours
- Material: Cast aluminium body with powder-coated finish
- Driver Requirement: 12V or 24V DC constant-voltage LED driver, wired in parallel
- Dimensions (H x L x W): 90mm x 260mm x 30mm
- Weight: 0.65 kg
Key Features
- Slimline surface-mounted design for exterior walls and steps
- Tri-colour selectable output from 3000K, 4000K or 5000K
- Upward and downward illumination
- IP54-rated construction for suitable outdoor applications
- White powder-coated cast-aluminium body
- Integrated TPS cable gland for installation
- Dimmable with compatible low-voltage equipment
- Suitable for pathways, steps, planter boxes and retaining walls
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Use a compatible 12V or 24V DC constant-voltage LED driver and install the low-voltage wiring in accordance with the manufacturer's instructions and AS/NZS 3000.
Applications
- Exterior wall lighting
- Pathway and step lighting
- Planter box and retaining wall lighting
- Landscape and architectural lighting
- Residential entry and facade lighting
Standards & Compliance
- Relevant luminaire standard: AS/NZS 60598.1:2025, Luminaires - General requirements and tests
- Installation should comply with AS/NZS 3000:2018, Electrical installations - Wiring Rules
- Product-specific RCM or certification details were not stated on the reviewed product page; verify markings on the supplied fitting and driver
Environmental Benefits
- Integrated LED technology provides efficient illumination compared with conventional light sources of similar output
- Published 50,000-hour LED lifespan can reduce replacement frequency and associated waste
- Cast aluminium construction is durable and recyclable at end of service life
- Low-voltage 12/24V DC operation can integrate with efficient outdoor lighting and control systems
Warranty Information
Three-year replacement warranty for residential applications, subject to Domus Lighting warranty conditions including installation by a licensed electrician. Domus' current warranty schedule lists exterior LED wall lights as three-year replacement for residential use and 12-month replacement for commercial use.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting distributors.
